• Model NO.：PLC-600
• Control：PLC
• Certification：ISO, CE
• Trademark：Wanlong
• Origin：Qanzhou, China
• Production Capacity：30set Per Month

Basic Info.

Model NO. PLC-600 Control PLC Certification ISO, CE Trademark Wanlong Origin Qanzhou, China Production Capacity 30set Per Month

Product Description

PLC-600 Stone Cutting Machine
1)Bridge Edge Cutting Machine
2)Automatic Cutting Machine
3)Granite/Marble/Sandstone slab edge cutting

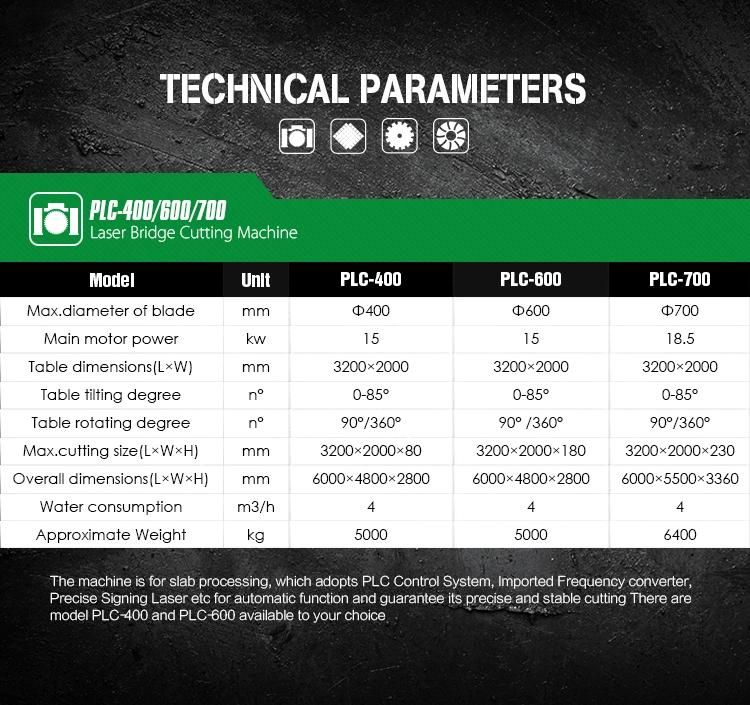

Machine Models

1. PLC-600 Bridge Saw

Blade Diameter: 350/600mm Blade

Cutting Slab Size: Max. 3200x2000x180mm

Precision: +/-0.2mm

15Kw main Motor



Machine Certificates

CE Certificate

Exporting to Europe, USA and Australia, Mid-East



1. Wide bridge structure with crossbeam, large size of slab cutting available

2. Cross beam use the high strength of the castings, avoid deformation after long-term use.

3. Host walking gear row with high precision, cooperate oil-immersed guide transmission, less resistance, high accuracy realized.

4. Dustproof design of the slide track ensures the precise guide movement & long lifespan.

5. The magnetic sliced ensure slicing precision gate.

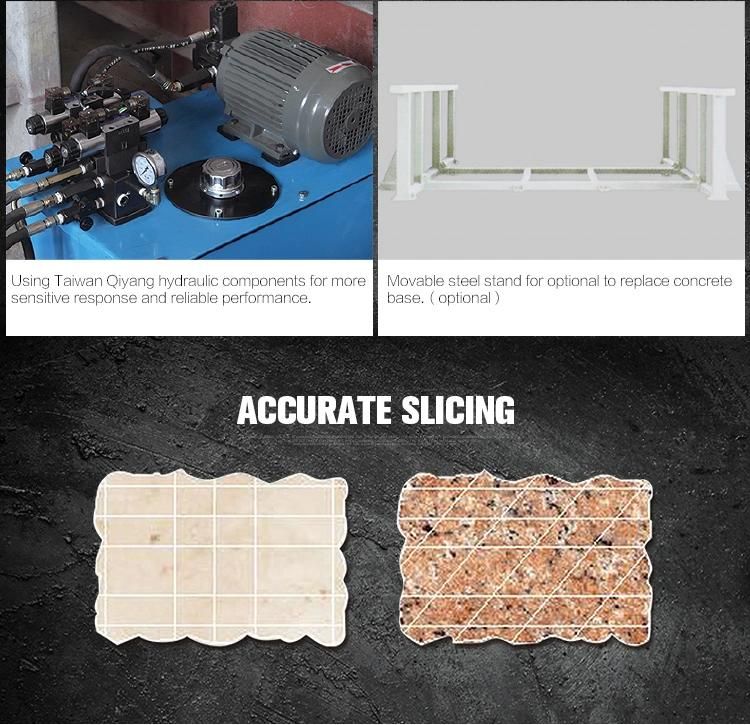

6. Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable.

7. Worktable can tilt 0-85°, and rotate 0-360°for special processing.

8. CE certificate.



l          Siemens motor stable performance.

l          Horizontal movement of the crossbeam is driven by motor with rotary encoder by which the precision is guaranteed.

l          Equipped with infrared device, precise cutting location reachable.

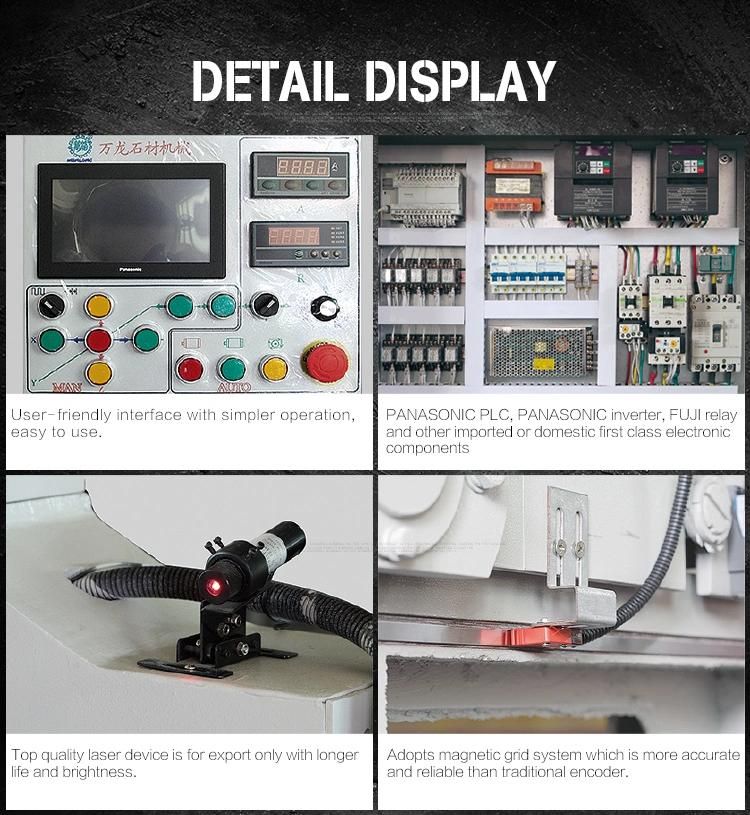

l          Touch-sensitive operating system, friendly human-machine interface design.

l          Equipped with PANASONIC frequency transducer and PLC, programmable and fully automatic.
