• Model NO.：PLC-400,600,700
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO, CE
• Lift System：Hydraulic
• Output：380-400sqm, 10hrs for Medium Hard Granite
• Voltage：380V,50Hz (Others Are Available)
• Overall Dimensions：6000*4800*3000mm
• Weight：4800kg
• Control Method：Touch Screen Dxf
• Control System：PLC(Imported Brand)
• Diameter：400-700mm
• Feature：High Cutting Efficiency
• Water Consumption：4m3,H
• Table Tilting Degree：0-85°
• Table Dimensions：3200*2000mm
• Transport Package：20FT Container to Ship
• Trademark：WANLONG
• Origin：Qanzhou, China
• HS Code：8464109000
• Production Capacity：30sets , Month

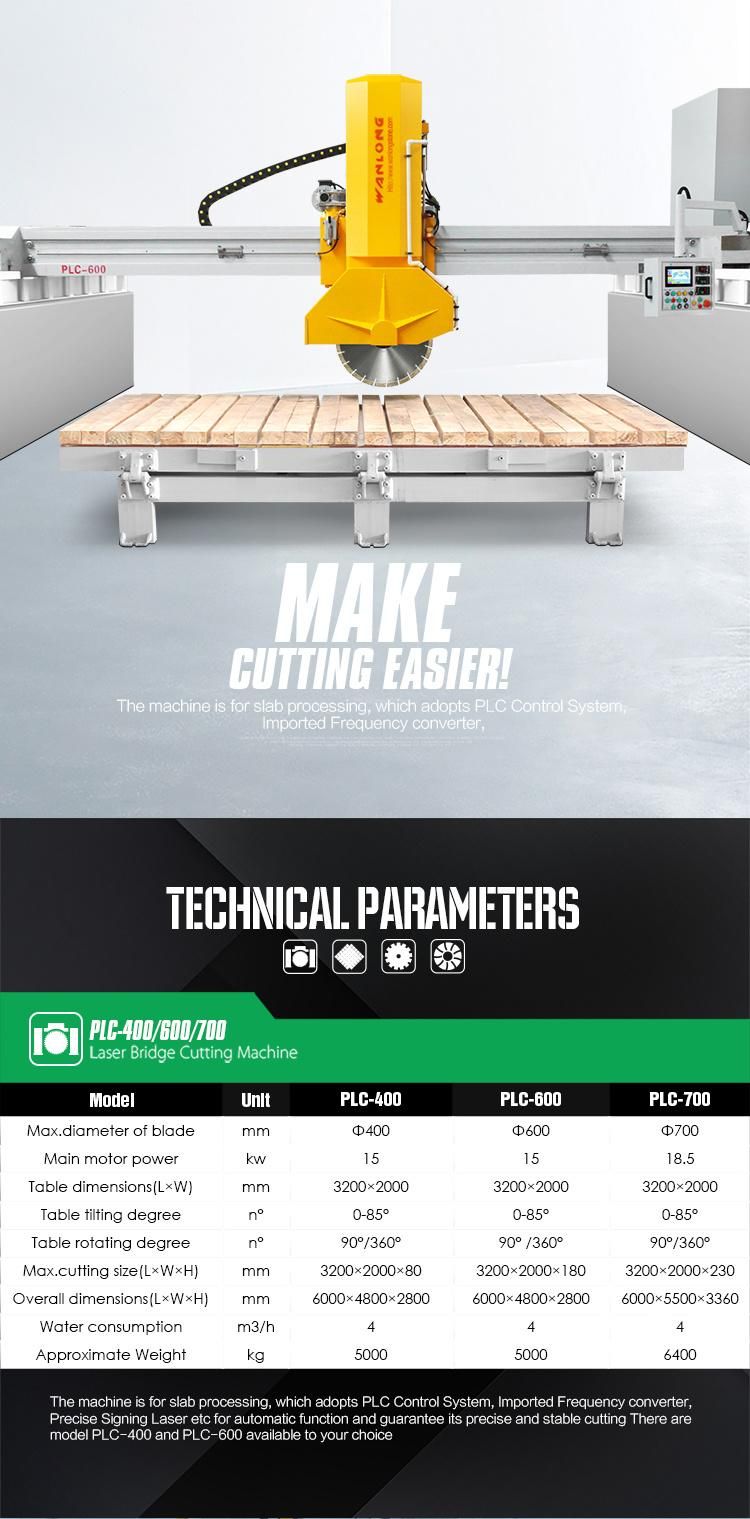

ModelUnitPLC-400PLC-600PLC-700Max.diameter of blademm350-400600700Main motor powerKW151518.5Table dimensions(L x W)mm3200*20003200*20003200*2000Table tilting degreen°0-85°0-85°0-85°Table rotating degreen°90°-360°90°-360°90°-360°Max.cutting size(L x W x H)mm3200*2000*803200*2000*1803200*2000*230Overall dimensions(L x W x H)mm6000*4800*30006000*4800*30006000*5500*3800Water consumptionm³/h444Approximate WeightKg480048006400

Main Features:

1. The blade can be tilted 45°and chamfer the edge.
2. Bridge structure with wide crossbeam, large size of slab cutting available.
3. Equipped with infrared device, precise cutting location reachable.
4. Dustproof design of the slide track ensures the precise guide movement & long lifespan
5. PLC control system, programmable, fully automatic & smooth cutting
6. Precise movement of head in X, Y, Z directions by rack & gear
7. Electric parts of Japanese famous brand adopted, reliability guaranteed
8. Touch-sensitive operating system, friendly human-machine interface
9. Worktable can be automatically rotated 90°or 360°, flip 85°,which make loading/unloading and changing the cutting direction easier.
10. CE certificate.

Company Information:

Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).

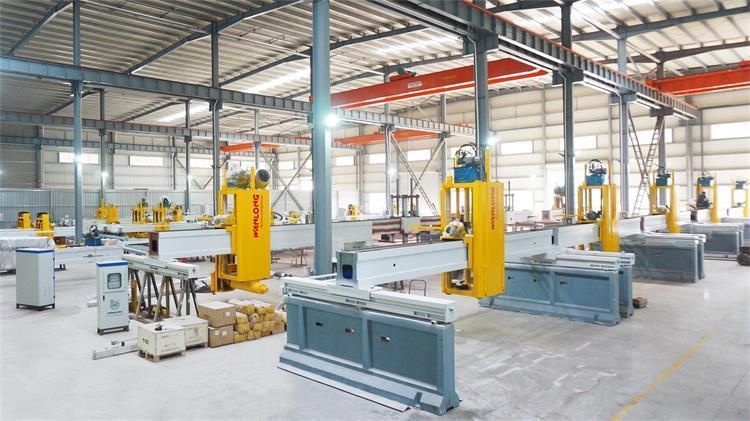

Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.
