• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Blade Tilt：0-45 Degree for Miter Cut
• Table Tilt：0-85 Degree Easy for Materials Loading
• Table Rotate：0-360 Degree Stopped Any Postion
• Power of Spindle Motor：15 Kw 20HP
• Weight：7200kg
• Two Way Cutting：Yes
• Repeat Cutting：Yes 99 Repeat Cutting
• Laser Guide：Yes
• Transport Package：Water-Proof Package
• Specification：Dimention (L*W*H): 6*5*3.05m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Blade Tilt 0-45 Degree for Miter Cut Table Tilt 0-85 Degree Easy for Materials Loading Table Rotate 0-360 Degree Stopped Any Postion Power of Spindle Motor 15 Kw 20HP Weight 7200kg Two Way Cutting Yes Repeat Cutting Yes 99 Repeat Cutting Laser Guide Yes Transport Package Water-Proof Package Specification Dimention (L*W*H): 6*5*3.05m Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

High Quality Good Price CNC Machine Stone Bridge Saw Cutting Granite Marble Quartz Fast and Easy

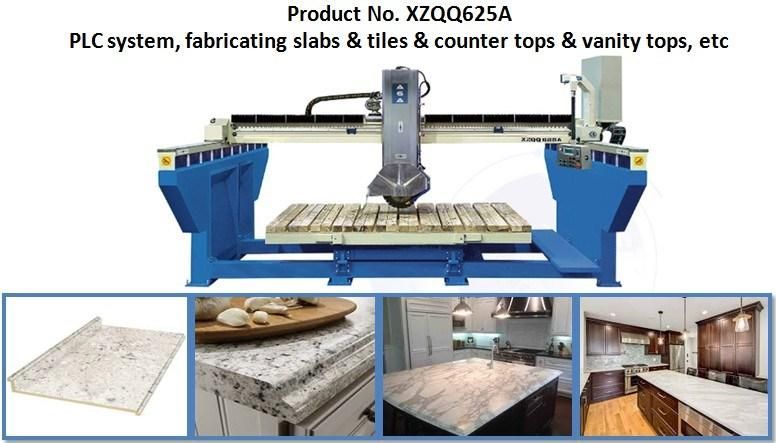

Machine model: XZQQ625A
Bridge saw XZQQ625A is made with a power motor 20HP, full of funtions including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc. The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate.

The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.

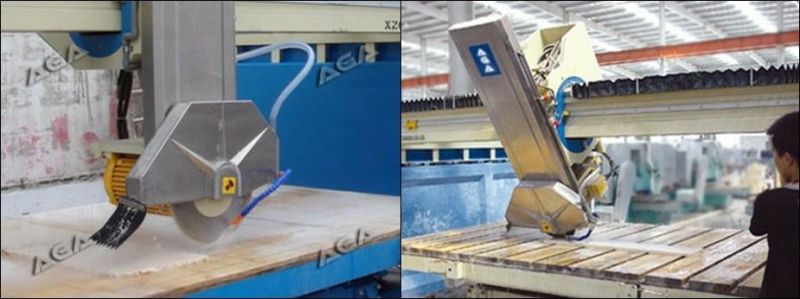

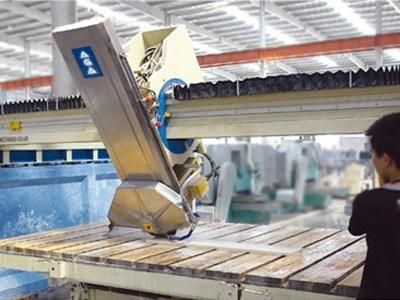

Bridge saw head provides automatic tilting of 0°-45° miter cuts.


Main structures of the bridge saw are made of very strong cast iron and stainless steel for protection.
Monobloc structural frame is easy for loading, transportation and installation.

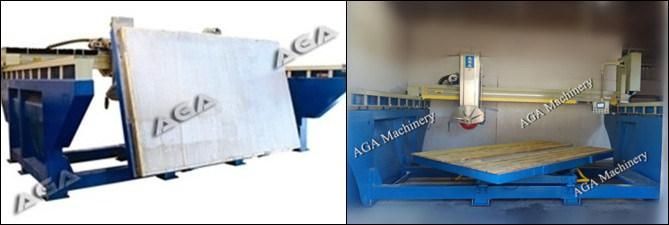

Worktable tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at degreee to change the cutting position easily.

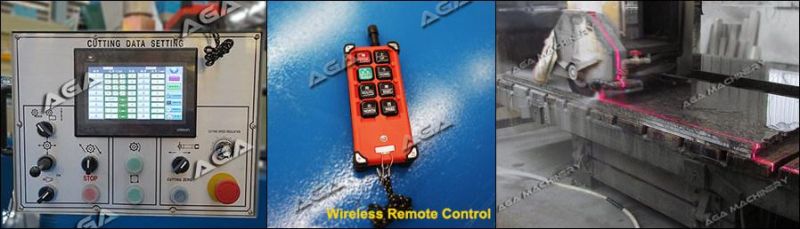

Automated programming. PLC control system, programmable, fully automatic & smooth feeding. Touch-sensitive operating system, friendly human-machine interface design.Wireless remote provides easy control of the saw making its users very friedly.
Besides, this bridge saw is an full automatic laser cutting machine. Laser guide shows precision cutting every time in +/-0.2mm making beautiful slabs, tiles, counter tops, etc.


CNC Machine Stone Bridge Saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

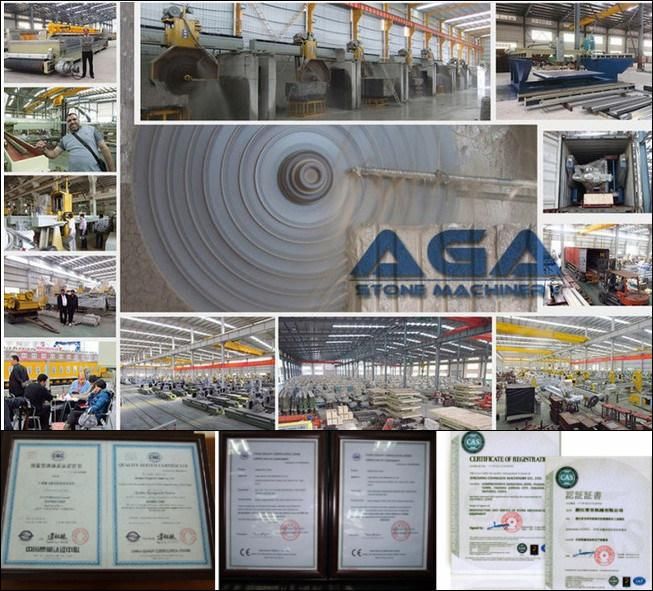

AGA Machiney:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.

Key words:
Stone bridge saw, granite bridge saw, slab bridge saw, marble bridge saw, bridge saw, slab saw, slab cutting, slab sizing, slab sawing, bridge cutting machine, tile cutter, granite cutting machine, marble cutting machine, tile cutting machine, cnc cutting machine, cnc machine, stone cnc machine, etc.
