• Model NO.：ck1325
• Current：AC
• Application：Glass, Advertising, Art & Craft, Stone Industry
• Customized：Customized
• Reposition Precision：0.02mm
• Operation System：DSP,Nc-Studio,Mach3
• Water Cooling Spindle Power：4.5kw,5.5kw
• Table Structure：Steel Lathe Bed
• Command：G Code*.U00*.Mmg*.Plt
• Max Processing Speed：30000mm,Min
• Voltage：380V ,220V,50Hz,60Hz
• Certificate：CE,FDA
• Machine Colour：as Your Choice
• Stepper Motor：Yes
• Transport Package：Plywood Packing
• Specification：iso ,SGS,FDA,CE
• Trademark：chanke
• Origin：Shandong
• Production Capacity：50sets,Months

Basic Info.

Model NO. ck1325 Current AC Application Glass, Advertising, Art & Craft, Stone Industry Customized Customized Reposition Precision 0.02mm Operation System DSP/Nc-Studio/Mach3 Water Cooling Spindle Power 4.5kw/5.5kw Table Structure Steel Lathe Bed Command G Code*.U00*.Mmg*.Plt Max Processing Speed 30000mm/Min Voltage 380V /220V/50Hz/60Hz Certificate CE/FDA Machine Colour as Your Choice Stepper Motor Yes Transport Package Plywood Packing Specification iso /SGS/FDA/CE Trademark chanke Origin Shandong Production Capacity 50sets/Months

Product Description

1300x2500mm cnc marble engraving machine for stone marble

1. T-slot mesa, lathe bed is more stable.
2. Water cooling system ensures the cutter a long life.

3. Have breakpoints, power failure continued carving function.
4. Dust oiling structure, effectively guarantee the mechanical aspects of the long run.5. High power watercooled brushless motor make it more forceful in cutting capability and wear well.

6.Main configuration chooses import, joint venture brand components, stable and reliable performance.

7.High compatibility,applicable for CNC software:type3,Artcam,Castmate,Pore,Wentai,cariable CAD/CAM etc.

 8.Machine is equipped with a sink and automatic water supply system, which can be fully to the cutting tool and machining of stone, metal cooling.

 9.Machine body is industrial production model, heavy all steel welded structure, tempering aging treatment, strong Non-deformation. Durable in use.

10.Triaxial exclusive dust protection, waterproof technology used to ensure that the guide rail, gear and rack from the cutting dust and scraps, prolong the service life of parts.

Applicable Industry

 The stone industry , stone processing industry, art industry, advertising industry, decoration industry, ceramics reliefs industry and so on.

Technical Parameters

Working size	1300×2500×200mm cnc stone machine
Spindle power	Water cooling 3000W
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver(Chinese servo motor and Japan servo motor is optional)
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	High accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	0.03/300mm
Engraving speed	12000mm/min
Data transmission	PC connect directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	1500kg

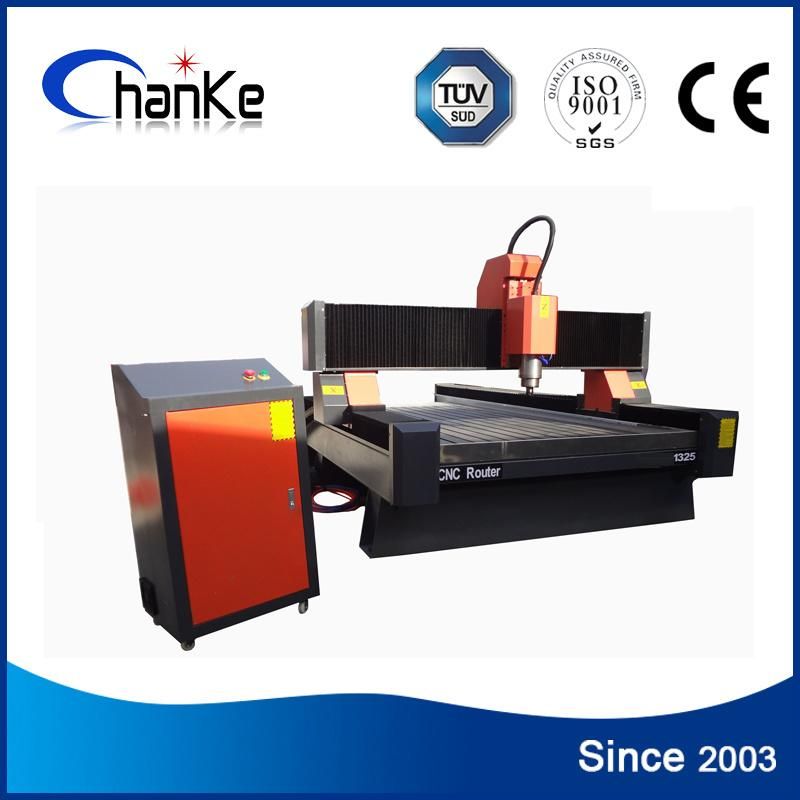

 Whole machine photo:

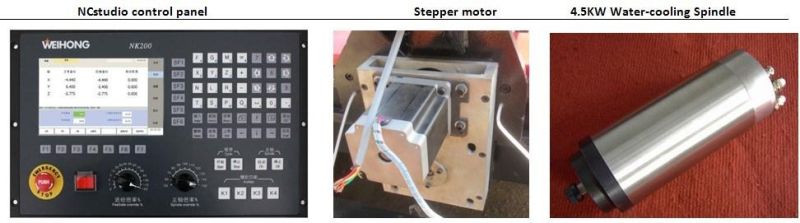

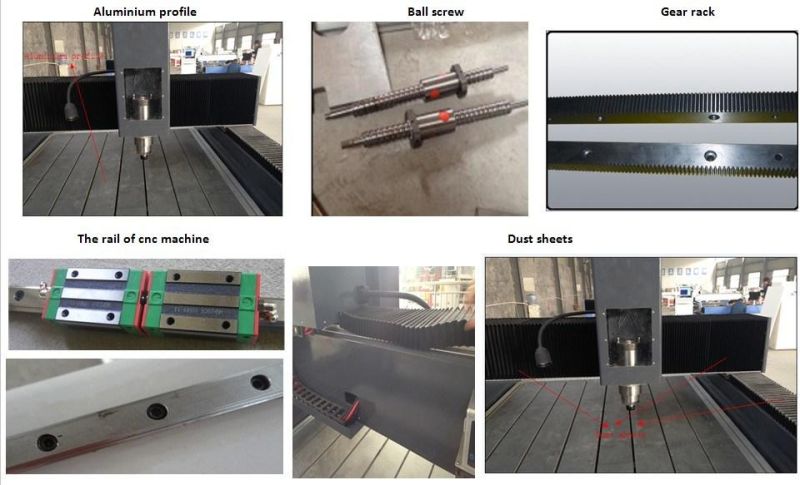

spare parts:

  Packing:


All stone cnc router machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.

The advantages of plywood case package:

Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.

Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.

Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.
