• Model NO.：PYB, PYD, PYZ
• Finished Surface：Gear Process
• Condition：New
• Color：Customized
• Installation：Under The Guidance of Engineer
• Certificate：ISO9001: 2000
• Usage：Ore, Rock, Stone, etc.
• Warrenty：1 Year
• After-Sale Service：Training, Technical Support, etc.
• Transport Package：International Packing Standard
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：Henan, China
• HS Code：8474201000
• Production Capacity：60sets,Month

Basic Info.

Model NO. PYB, PYD, PYZ Finished Surface Gear Process Condition New Color Customized Installation Under The Guidance of Engineer Certificate ISO9001: 2000 Usage Ore, Rock, Stone, etc. Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Transport Package International Packing Standard Specification ISO, CE, SGS Trademark TYM Origin Henan, China HS Code 8474201000 Production Capacity 60sets/Month

Product Description

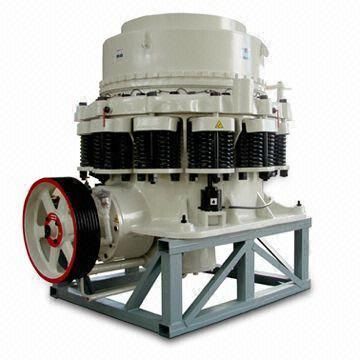

Spring cone crusher



Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness, and cone crusher is of stable structure, high efficiency, easy adjustment, and use economically, etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make sure reliable performance. The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.

Working principle of cone crushing
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing. The movable cone and erect shaft are drived by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is drived by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequantly the output size is determined.

Type	Diameter	Size of Feeder Size	Adjusting range of output (mm)	Capacity (t/h)	Motor Power (kw)	Weight (T)	Overall dimensions (LWH)(mm)	Quotation (USD)
PYB600	Φ600	12-25	65	40	30	5	2800×1300×1700
PYD600	Φ600	3-15	35	12-23	30	5.5	2800×1300×1700
PYB900	Φ900	15-50	115	50-90	55	11.2	3050×1640×2350
PYZ900	Φ900	5-20	60	20-65	55	11.2	3050×1640×2350
PYD900	Φ900	3-13	40	15-50	55	11.3	3050×1640×2350
PYB1200	Φ1200	20-50	145	110-168	110	24.7	4000×1900×2980
PYZ1200	Φ1200	8-26	100	42-135	110	25	4000×1900×2980
PYD1200	Φ1200	3-15	50	18-105	110	25.3	4000×1900×2980
PYB1750	Φ1700	25-50	250	280-480	160	50.3	4870×3800×4192
PYZ1750	Φ1700	10-30	215	115-320	160	50.3	4870×3800×4192
PYD1750	Φ1700	5-13	100	75-230	160	50.2	4870×3800×4192
PYB2200	Φ2200	30-60	300	59-1000	280/260	80	5420×4300×4870
PYZ2200	Φ2200	10-30	230	200-580	280/260	80	5420×4300×4870
PYD2200	Φ2200	5-15	100	120-340	280/260	81.4	5420×4300×4870
