• Model NO.：YTQQ-600,650
• Control：Laser
• Certification：ISO, CE
• Main Motor Power：15kw,18.5kw
• Max. Diameter of Saw Blade：300mm- 600mm
• Table Tilting Degree：0-85degree
• Table Rotation Degree：360degree Upon Your Choice
• Max Cutting Size：3200*2000*180mm
• Cutting Head：Can Tilt 45degree
• Cutting Head Rotation Degree：Can Rotate 90 Degree
• Transport Package：1 Machine in One 20 Gp Container
• Specification：5800*3000*3000
• Trademark：wanlong
• Origin：Fujian Quanzhou
• HS Code：8464101000
• Production Capacity：180sets,Month

Basic Info.

Model NO. YTQQ-600/650 Control Laser Certification ISO, CE Main Motor Power 15kw/18.5kw Max. Diameter of Saw Blade 300mm- 600mm Table Tilting Degree 0-85degree Table Rotation Degree 360degree Upon Your Choice Max Cutting Size 3200*2000*180mm Cutting Head Can Tilt 45degree Cutting Head Rotation Degree Can Rotate 90 Degree Transport Package 1 Machine in One 20 Gp Container Specification 5800*3000*3000 Trademark wanlong Origin Fujian Quanzhou HS Code 8464101000 Production Capacity 180sets/Month

Product Description

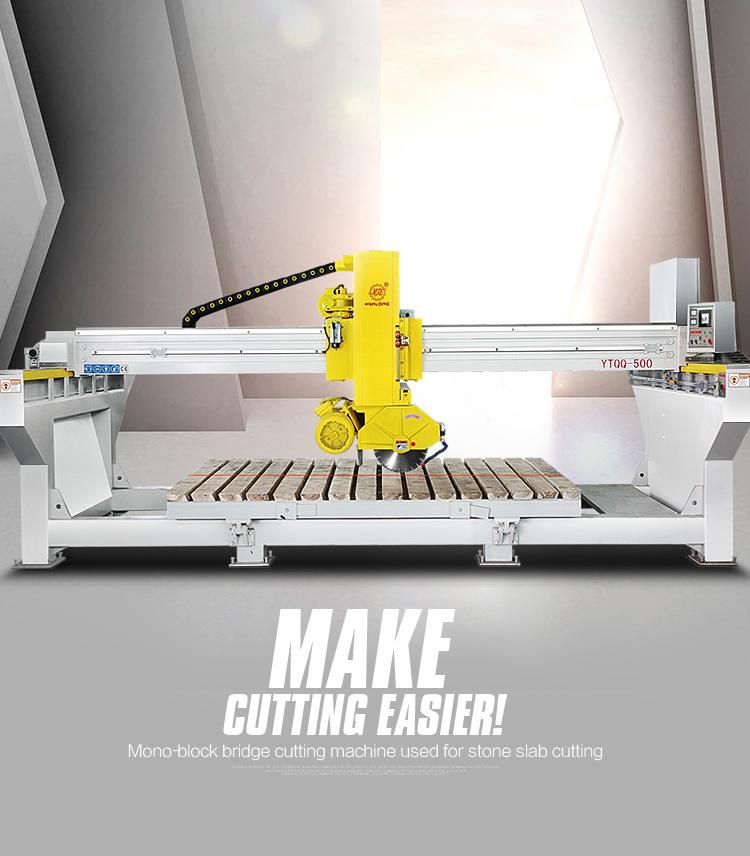

Mono Block Laser Bridge Stone Cutting Machine YTQQ-500/600/650
Product Introduction & Parameter




Model	Unit	YTQQ-500	YTQQ-600	YTQQ-650
Diameter of Blade	mm	D500	D600	D650
Main Motor power	KW	15	15/18.5	15/18.5
Cutting head rotation degree	°	90	90	90
Blade tilting degree	°	0	0-45	0-45
Table Dimensions(L*W)	mm	3200*2000	3200*2000	3200*2000
Table Rotating degree	°	0/90/360	0/360	0/360
Max.Cutting size(L*W*H)	mm	3200*2000*130	3200*2000*180	3200*2000*200
Overall dimensions(L*W*H)	mm	5800*2700*2500	5800*3000*3000	5800*3000*3000






Professional Team

23 years of experience in diamond tools industry;
900 experienced employees;
2100 clients from 108 countries and regions;
200,000 pieces segments of daily production output.

Wanlong is now one of the biggest manufacturers of diamond tools, supplying products for stone cutting, polishing, grinding and drilling.



Following products are supplied:

1. Diamond segments and diamond saw blade, ranging from 200mm to 3500mm.

2. Dry cutting & turbo saw blade.

3. Diamond wire and beads for granite & marble.

4. Polishing abrasive.

5. PDC Cutters for Oil & Gas Drill Bits and Chain Saw machine.

6. Bridge Cutting Machine & Auto Polishing Machine, etc.

 1).QSQ-2200/2500 Bridge Multiblade Block Cutter

 2). QZQ-900/1200 Bridge Cutting Machine

 3).PLC-400/600 Laser Bridge Cutting Machine

 4).MS-2600/3000 Polishing Machine

 5).SY-S80 Hydraulic Pressing Machine, etc.

If any product meet your demand, please contact us for further information.

If any request, just feel free to contact us, we will keep providing quality products and excellent sevice for you.
