Heavy Duty Bridge Cutting Machine for Big Granite Block & Marble
Fujian Wanlong Diamond Tool Co., Ltd.- After-sales Service：After-Sale Service
- Warranty：1 Year
- Type：Stone Machine
- Usage：Granite, Marble
- Application：Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：QSQ-3000
- Automation：Automatic
- Cutting Ability：High Speed
- Control：PLC
- Certification：ISO, CE
- Max Blade Diameter：3000mm
- Output：110sqm,16hrs, Medium Granite
- Voltage：380V,50Hz (Other Voltages Are Available)
- Cutting Thickness (Max)：1350mm
- Blade Diameter：600-3000mm
- Transport Package：Water and Moisture Proof Material Packaging
- Specification：7500*4350*6000mm
- Trademark：wanlong
- Origin：Quanzhou, China
- HS Code：8464101000
- Production Capacity：30sets , Month
Description
QSQ-3000 mulitblade bridge block cutting machine, block cutter combines different diameters of blades working, and hydraulic lifting system four columns type, make the machine with high cutting efficiency.
The cross beam moves for feeding and slicing, so that the table for block is not necessary

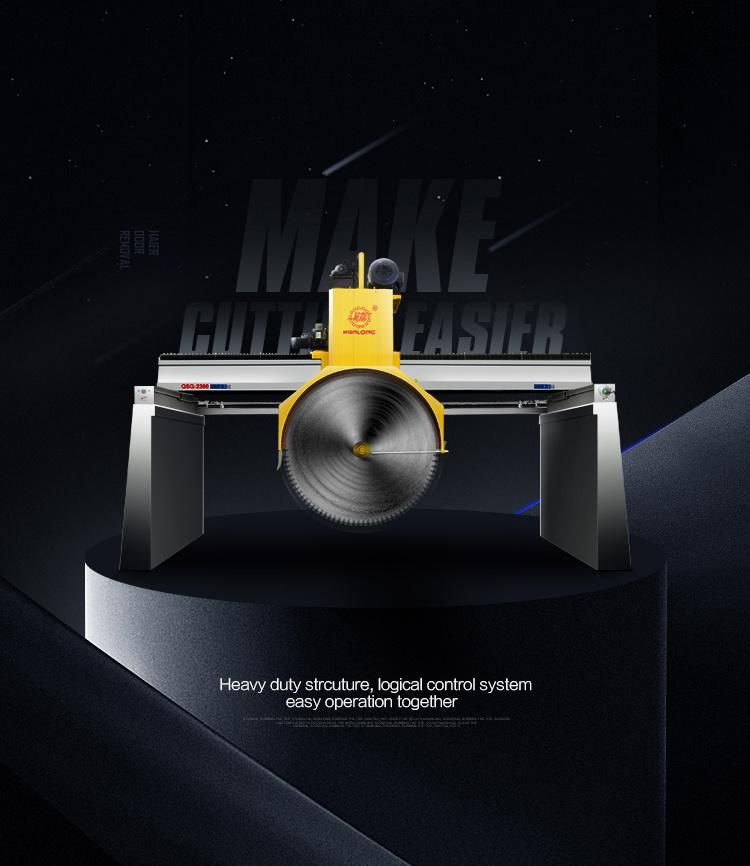

Heavy duty structure, logical control system easy operation together with "Wanlong" Blade give high production and make the finished slabs with flat surface.
Strong Casting Iron crossbeam and vertical beam to avoid distortion after long-term use
Dustproof design of the slide track ensures the precise guide movement & long lifespan
Double V-Shape guide rails enhance the smooth cutting and movement

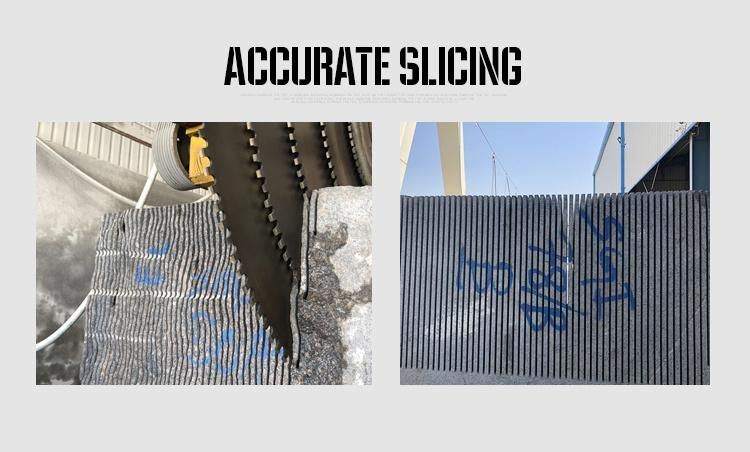

Blade slicing by crossbeam back and forward encoder
Optional Motor Power: 37kw, 45kw and 55kw are available upon request. SIEMENS BRAND available!!

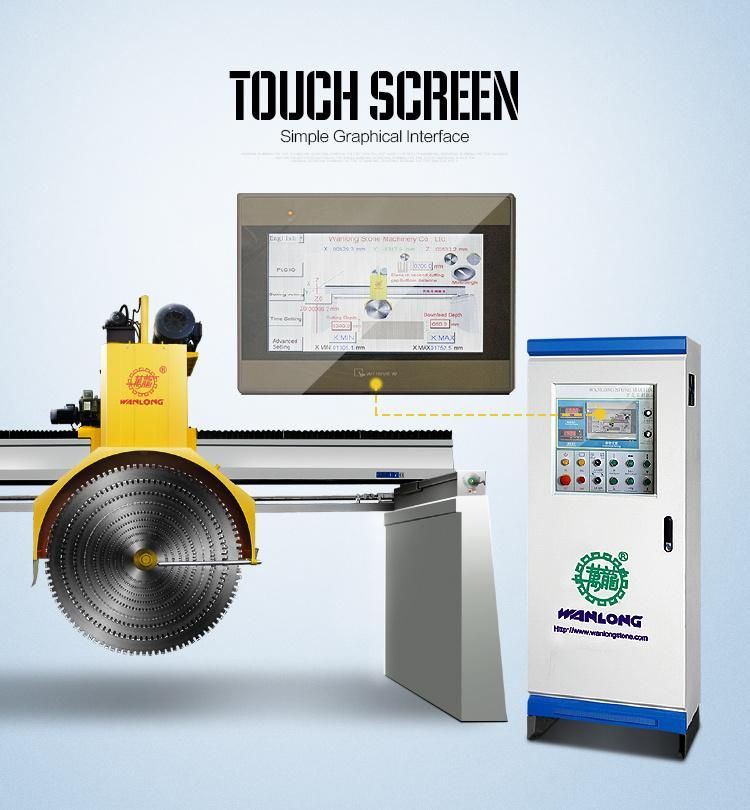

Touch Sensitive Panel Easy for worker of not high education to operate
with encoder on machine's 3 axis, X, Y,Z-real Automatic
locking system on vertical beam protects the machine collaption

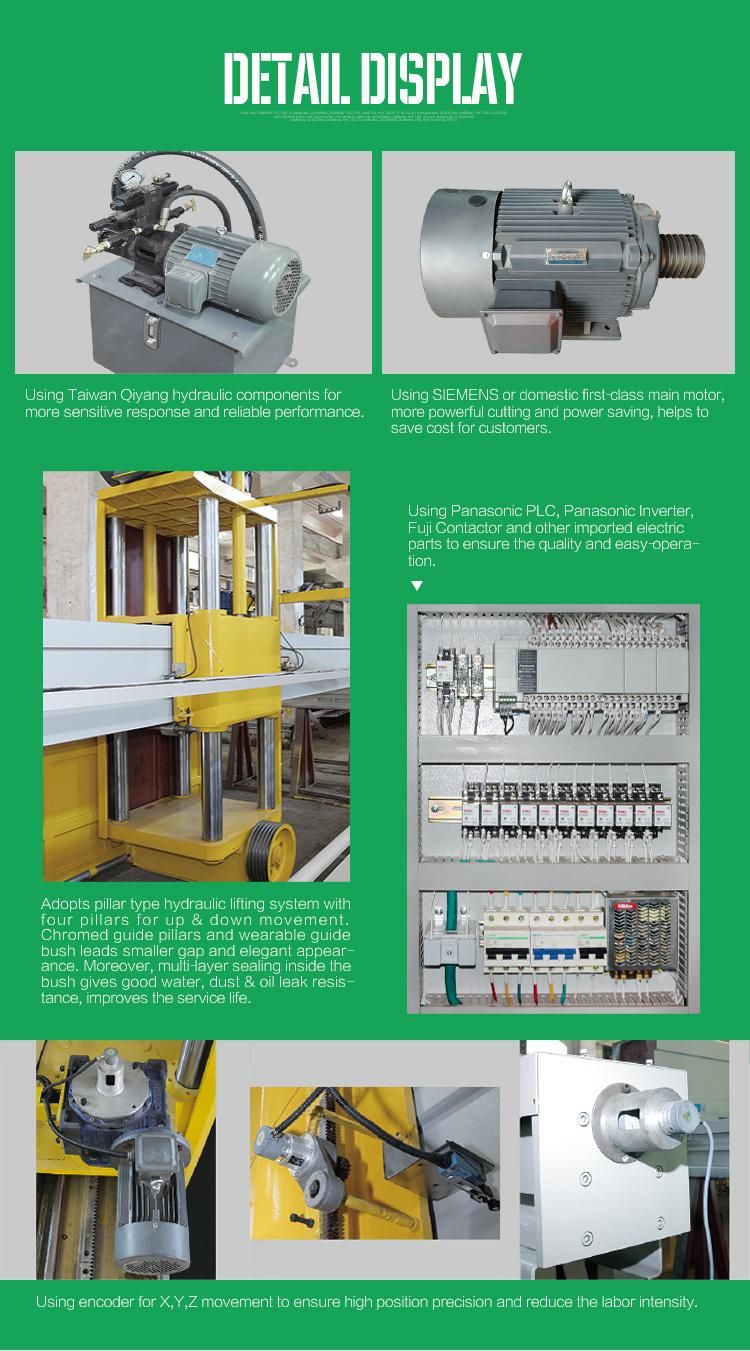

Leading system available in hydraulic-fast blade lifting
Imported Electronic parts: PLC and frequency inverter- Panasonic; relay-Fuji, Mitsubishi air switch etc.
