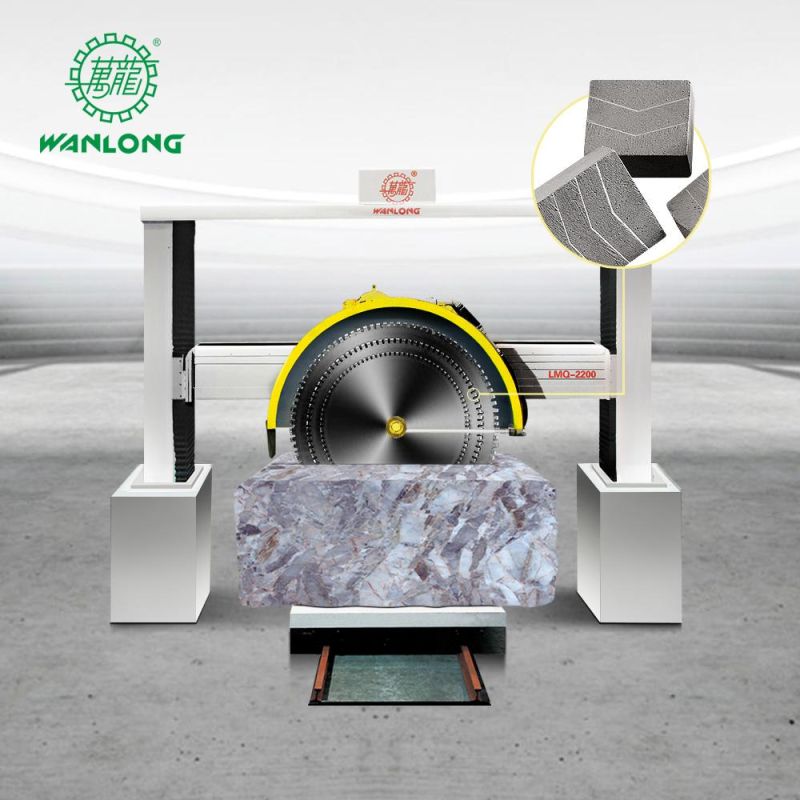

Model 2200 2500 3000 Marble Quarry Stone Cutting Machine

Fujian Wanlong Diamond Tool Co., Ltd.
  • Type：Hydraulic Cutting Machine
  • Usage：Ceramics, Glass, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble, Medium Granite Block Cutting Machine
  • Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Stone Cutting Machine
  • Source Voltage：220V,380V,415V, Available Upon Request
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：LMQ-2200 2500 3000
  • Control：CNC
  • Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Bridge Stone Block Cutting Machine
  • Product Name：Gantry Cutting Machine
  • Main Motor Power：45,55,65kw
  • After Sales Service Provide：Engineer Available Service Machinery Overseas
  • Warranty：12 Months
  • Max. Processing Size：3400X2000X1350mm
  • Water Consumption：10m3,H
  • Approximate Weight：9-12 Tons
  • Quality：European Standard
  • Transport Package：Seaworthy Wooden Case for Auto Cutting Machine
  • Specification：7000x4700x6000mm
  • Trademark：Wanlong
  • Origin：Fujian, China
  • HS Code：84641000
  • Production Capacity：5000sets Per Year

Description

ModelLMQ-2200LMQ-2500LMQ-3000Max. blade diametermm220025003000Max. NO. of bladespc311Recommended balde combination mmΦ2200,Φ1600,Φ940Φ2500Φ3000Recommended thickness of blademm6.56.58Linear speedm/s37.7536.7536.75Feeding speedmm/min0-5350mm/min0-5350mm/min0-5350mm/minVertical feeding speedmm/min590590590Trolley feeding speed mm/min200200200Main Motor powerKW303037Table dimensions( L*W)mm2000*20002000*20002000*2000Max. cutting size(L*W*H)mm3000*2000*9503000*2000*11003400*2000*1350Overall dimensions(L*W*H)mm6600*6000*48006600*6000*48007000*4700*6000Water consumptionm3/h6610Approximate weight kg9000900012000Model 2200 2500 3000 Marble Quarry Stone Cutting Machine
