Vertical Compound Limestone Crusher for Rock Stone Crusher
ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD.- After-sales Service：After Sales and Accessories Support
- Warranty：1 Year
- Type：Compound Crusher
- Application：Chemical, Construction, Mineral Industry, Stone Industry
- Drive：Electric
- Crushing Style：Grinding & Impact
Base Info
- Model NO.：PFL800
- Compressive Strength (For Crushing)：Medium Hardness
- Crushing Degree：Fine Grinding Machine
- Condition：New
- Color：Customized
- Shaft Speed：1000rpm
- Feeding Size：Less Than 50mm
- Output Size：3-5mm(60-90%)
- Motor：15-22kw
- Capacity：10-20tph
- Transport Package：Container
- Specification：2100*1200*1700
- Trademark：YUFCHINA
- Origin：China
- HS Code：8474390000
Description

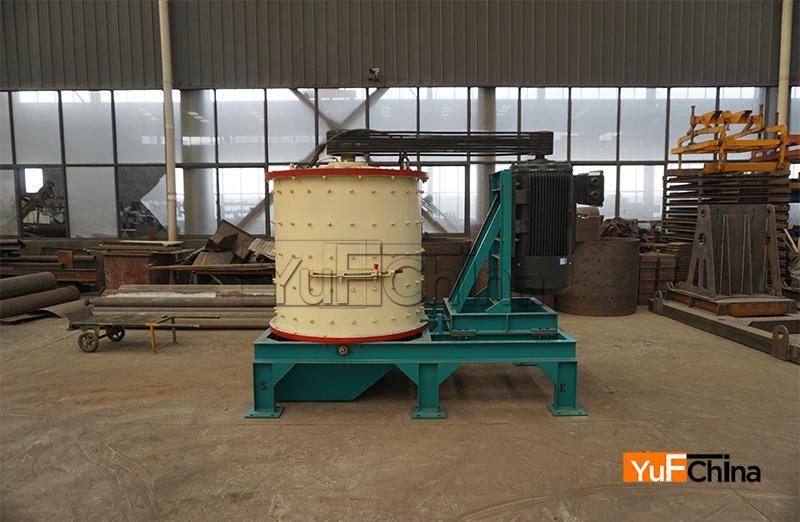

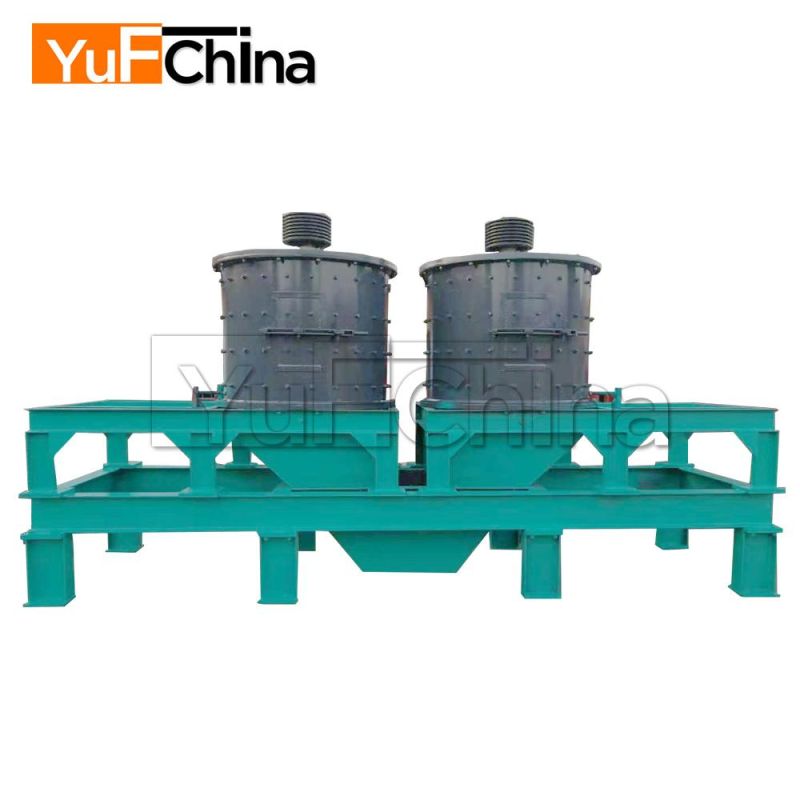

Vertical compound crusher introduction
The combination crusher is a new generation high efficiency crushing machine designed and researched by integrating the domestic and foreign crusher technology with the same kinds and optimizing the main technical parameters. Its designing structure integrates the hammer crusher and impact crusher and its performance has reached the domestic and foreign advanced level and is applied in crushing all kinds of medium-hard rocks.

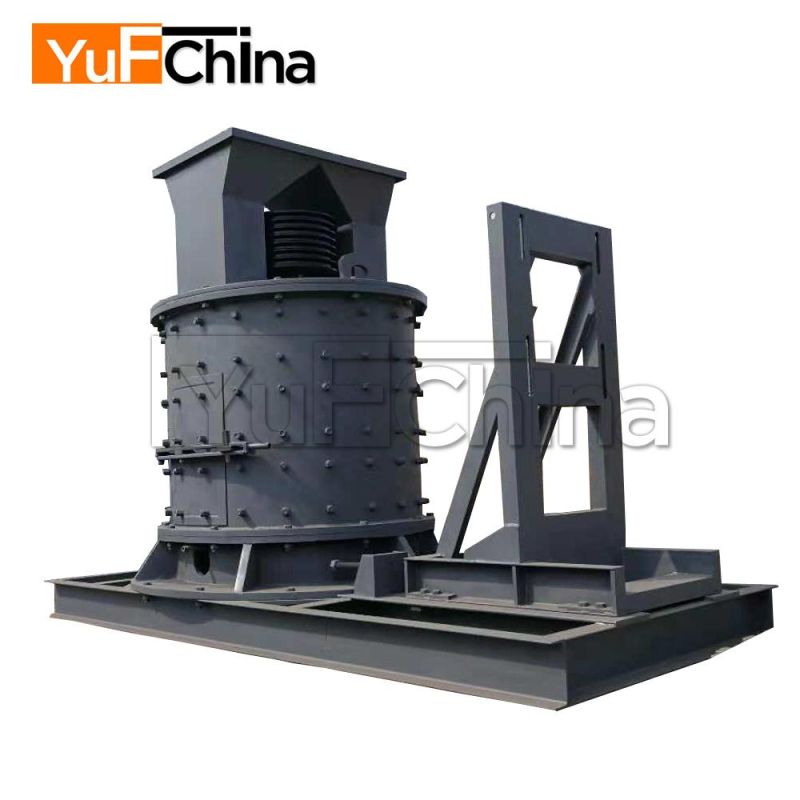

Vertical compound crusher structure
The compound crusher, which is also called compound cone crusher, is mainly composed by driving device, main shaft, drum, upper cap and the foundation. The electric motor drives the main shaft to rotate with the help of the ladder-shaped triangle belt, and the main shaft is equipped with hammer. The materials go inside the machine from the upper material feeding mouth and fall down under gravity, and then the materials will be crushed under a series of impact of the hammer at high rotary rate, and finally be discharged from the lower material discharging mouth.Vertical compound crusher performance features

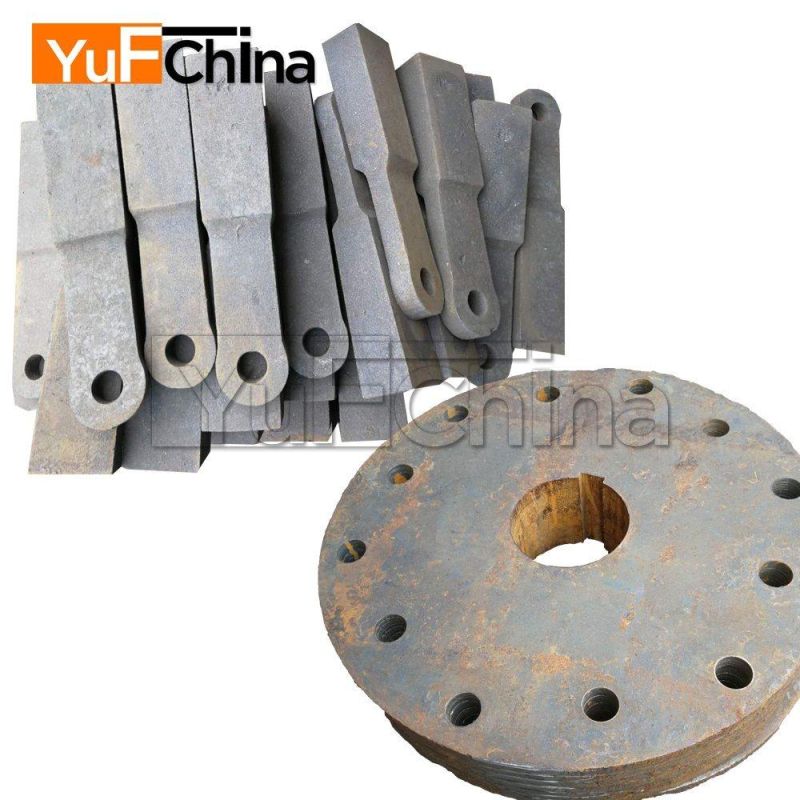

The compound crusher has high crushing ratio, and it is ideal for crushing and processing materials with high water content. The granularity of the discharged materials can be adjusted according to the customers' requirements. There is no screening bar in this machine so that the materials with high mud and sand content will not block the machine, and even if some uncrushable materials go into the machine, they can be automatically discharged and will not cause damage to the machine. This machine has many advantages such as high production efficiency, unique structure, stable operation, low level of noise and convenient repair, and the easy-wearing parts can be easily changed only by opening the working door.
Vertical compound crusher application ranges
The compound cone crusher can be used for fine crushing limestone, clinker, coal and other kinds of ores and rocks in building material, mining, metallurgy and chemistry, and at the same time it can also be applied in fine crushing medium hard materials such as dolomite, flint clay, lead-zinc deposit, high slag, coal gangue, rock phosphate, especially suitable for hard limestone, dolomite, granite and basalt of artificial sand making and highway surface stone material processing and crushing.
Working principle of Vertical compound crusher
The materials vertically fall into the impeller with high rotary speed from the upper part of the machine, and under the effect of high speed eccentric force, the materials will hit and crush the other part of materials which shunt around the impeller with the shape of umbrella. After the materials are hit each other inside the combination crusher, they will hit, rub with each other between the impeller and machine shell and then crushed, and finally they will be discharged from the lower part, forming a closed-circuit cycle. The granularity of the final products is controlled by the screening equipment.

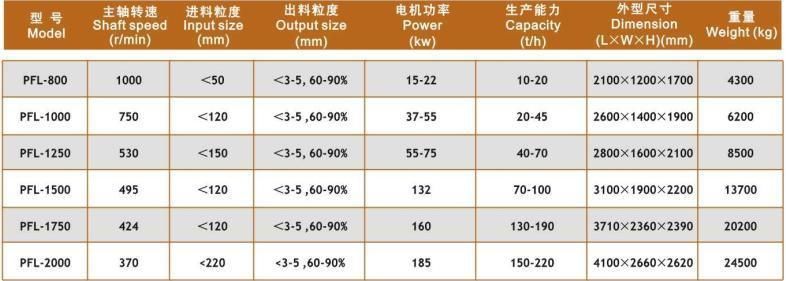

Vertical compound crusher technical data
Our Services
Pre-sale
1. Depending on customer's requirement, we insist on "making profit at lowest investment" and gives best solution as per the customer's special demand.
2. Design the most reasonable project and maximum customers' profit.
3.Provide engineers to scene to plan work site if the customer needed.
4. Provide equipment list, design drawing, construction drawing, equipment install drawing.
After Sale's Service:
a.1 year warranty ,if the machine break is by quality detect not personal reason or natural disaster ;
c. Easy break spare parts not include .Engineer installation abroad and teach you master the skill to produce wood pellet;
c. Supply you the spare parts with favorable price all the machine life time;
d. Caring service, carefully manufacture and desirable price make customers at ease.
