• Model NO.：in details
• Grinding Method：Wet Grind
• Certification：ISO, CE, SGS
• Condition：New
• Delivery Time：7-20 Days
• Installation：Under The Guidance of Engineer
• Certificate：ISO;SGS;CE:CIQ:FTA;etc
• Warrenty：1 Year
• After-Sale Service：Training, Technical Support, etc.
• Discharging Size：20-200 Mesh.Can Be Adjusted
• Feeding Size：<25mm
• Exporter Type：Factory Manufacturer
• MOQ：1 Set
• Transport Package：Bulk Carrier
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：Henan, China
• HS Code：8474202000
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. in details Grinding Method Wet Grind Certification ISO, CE, SGS Condition New Delivery Time 7-20 Days Installation Under The Guidance of Engineer Certificate ISO;SGS;CE:CIQ:FTA;etc Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Discharging Size 20-200 Mesh.Can Be Adjusted Feeding Size <25mm Exporter Type Factory Manufacturer MOQ 1 Set Transport Package Bulk Carrier Specification ISO, CE, SGS Trademark TYM Origin Henan, China HS Code 8474202000 Production Capacity 60 Sets/Month

Product Description

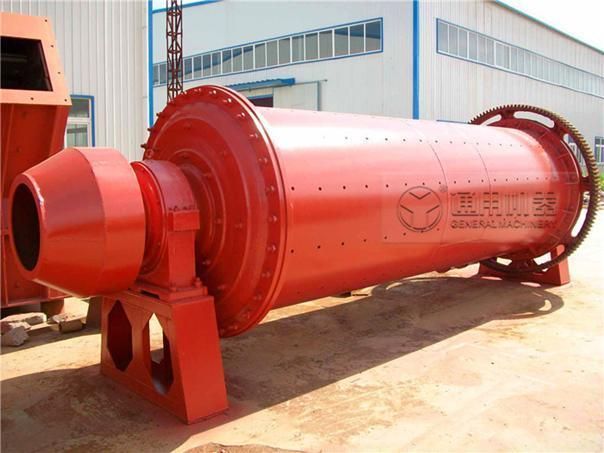

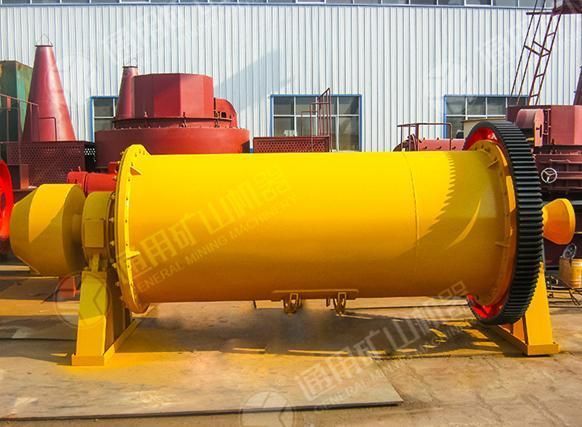

Ball millBall mill application:
Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. 2 It is widely used in building material, chemical industry, etc. There are two ways of grinding: The dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.

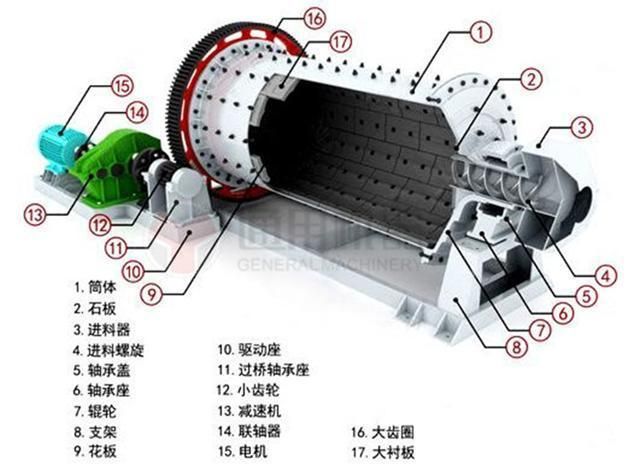

Working principle of ball mil:
To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several minutes.

Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs. Our Ball Mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder.


Model	Speed of bucket (r/min)	Weight of ball (t)	Size of feed opening (mm)	Size of outputting feed (mm)	Production (t/h)	Power (Kw)	Weight (t)
Φ 900× 1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
Φ 900× 3000	38	2.7	≤ 20	0.075-0.89	1.1-3.5	22	4.6
Φ 1200× 2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	45	12.5
Φ 1200× 3000	32	5	≤ 25	0.075-0.4	1.6-5	45	12.8
Φ 1200× 4500	32	7	≤ 25	0.075-0.4	1.6-5.8	55	13.8
Φ 1500× 3000	27	8	≤ 25	0.075-0.4	2-5	90	17
Φ 1500× 4500	27	14	≤ 25	0.075-0.4	3-6	110	21
Φ 1500× 5700	27	15	≤ 25	0.075-0.4	3.5-6	132	24.7
Φ 1830× 3000	24	11	≤ 25	0.075-0.4	4-10	180	28
Φ 1830× 6400	24	23	≤ 25	0.075-0.4	6.5-15	210	34
Φ 1830× 7000	24	25	≤ 25	0.075-0.4	7.5-17	245	36
Φ 2200× 5500	21	30	≤ 25	0.075-0.4	10-22	370	48.5
Φ 2200× 6500	21	30	≤ 25	0.075-0.4	14-26	280	52.8
Φ 2200× 7500	21	33	≤ 25	0.075-0.4	16-29	475	56

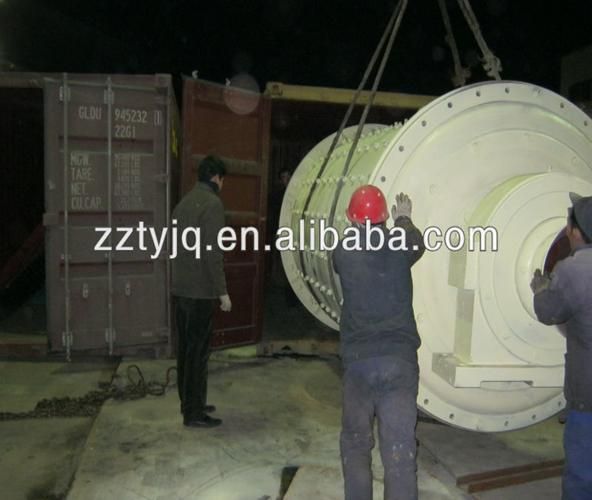

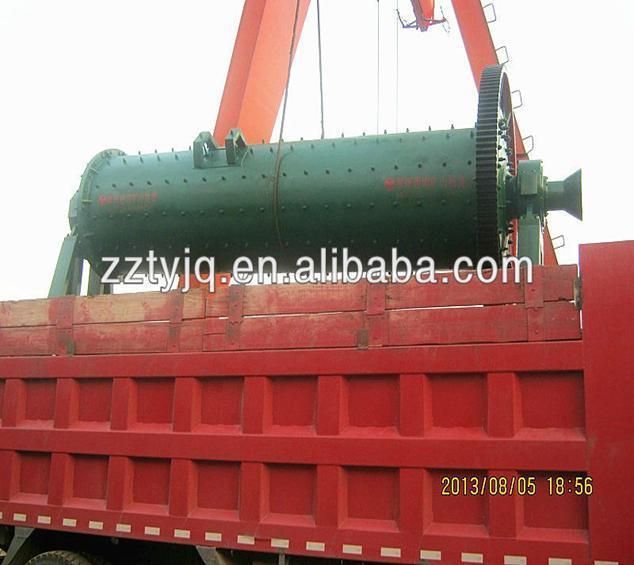

Delivery site

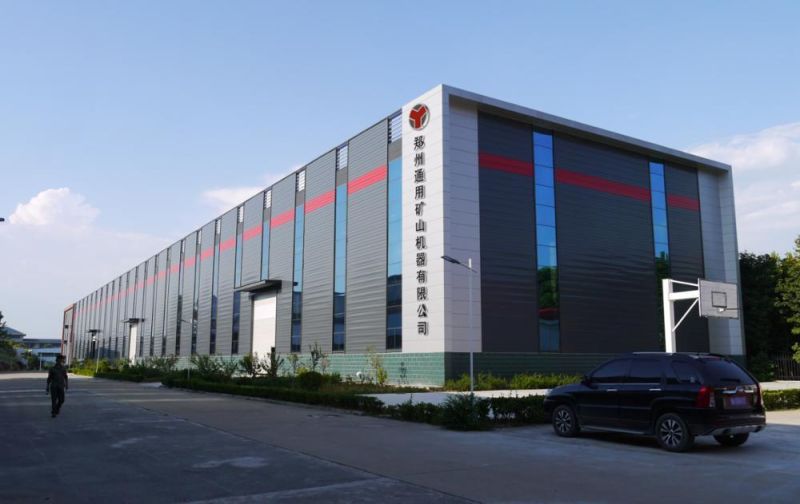

About us



Contact us

If you are interested with our products, please don't hesitate to contact us. We will provide you the most satisfying product and service. You can tell me the following questions, then I can send you accurate quotation soon, including additional discount!

1. Which machine do you need? like stone crusher, grinding mill or ball mill , etc.

2. what is your raw material plan to process? like limestone, granite or marble  ore, etc.

3. The capacity you need. Like 100 tones per hour or 2000 tones per day.

4. Your contact information. Both Email and phone number are essential, we can contact you easier.
