• Model NO.：PF
• Finished Surface：Cut Off Tool
• Certification：CE, ISO
• Condition：New
• Color：Yellow
• Installation：Under The Guidance of Engineer
• Warrenty：1 Year
• After-Sale Service：Training, Technical Support, etc.
• Usage：Ore, Rock, Stone, etc.
• Delivery Time：7-15 Working Days
• Price Advantage：Factory Price
• Transport Package：International Packing Standard
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：Henan, China
• HS Code：8474201000
• Production Capacity：39 Sets,Month

Basic Info.

Model NO. PF Finished Surface Cut Off Tool Certification CE, ISO Condition New Color Yellow Installation Under The Guidance of Engineer Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Usage Ore, Rock, Stone, etc. Delivery Time 7-15 Working Days Price Advantage Factory Price Transport Package International Packing Standard Specification ISO, CE, SGS Trademark TYM Origin Henan, China HS Code 8474201000 Production Capacity 39 Sets/Month

Product Description

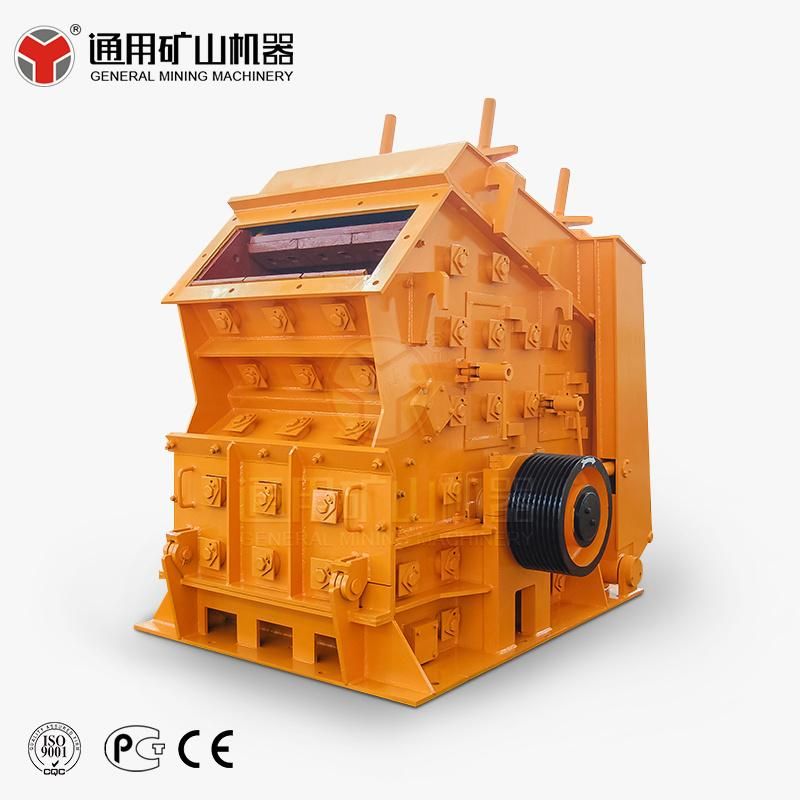

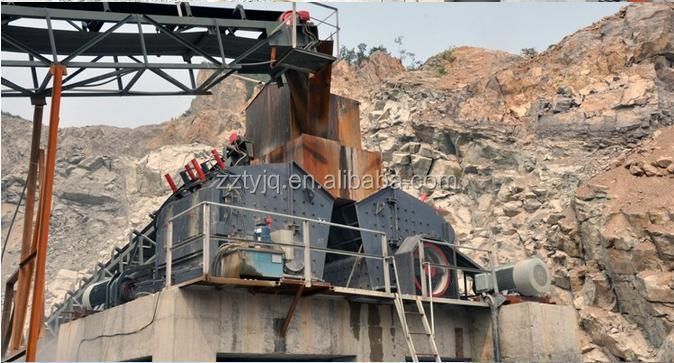

PF series hard rock counter-attacking crusher
Product introduction
The PF series hard rock counter-attacking crusher absorbs the domestic and foreign advanced technology. The hard rock whose granularity is less than 60-300mm can be processed. The granularity of 80% finished products is less than 30mm. The output of product is shaped as cube. The crusher is the first choice to make aggregates for high level road and hydraulic electricity industry.
Working principle

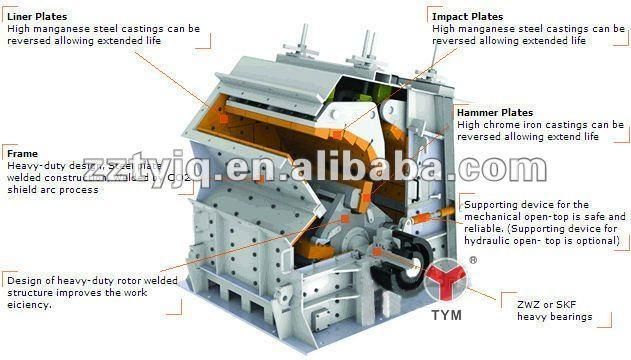

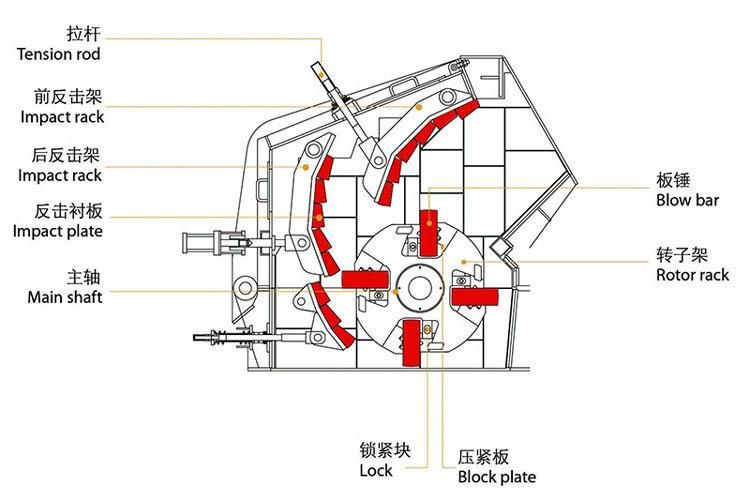

When the hard rock counter-attacking crusher works, the electric motor drives the rotor where installed hammers to rotate with high speed. When the materials get into the area which the hammers can be effective, under the impact function of the hammers at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers can be effective to be crushed again. The materials' size from big to small all will be crushed in the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then will be discharged from outlet.

Technical parameter:

Type	Rotor size (mm x mm)	Feeder Opening(mm)	Feeding Size (mm)	Production Capacity (t/h)	Motor Power (KW)	Weight (t)
PF-1007	Φ1000×700	400×730	300	35-50	37-55	9.45
PF-1010	Φ1000×1050	400×1080	350	50-80	55-75	12
PF-1210	Φ1250×1050	400×1080	350	70-120	110-132	14
PF-1214	Φ1250×1400	400×1430	350	80-160	132-160	18.58
PF-1315	Φ1320×1500	860×1520	500	160-260	180-260	24.2

About us

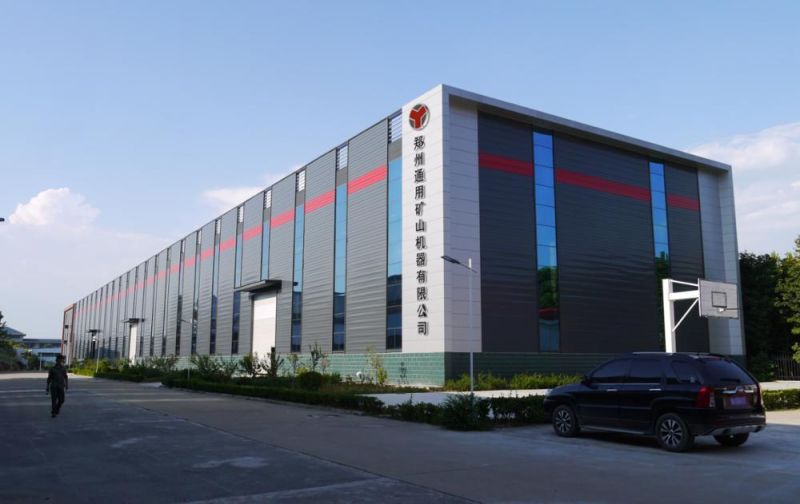

Zhengzhou General Mining Machinery Co., Ltd was founded in 2004, aiming to serve the need in mining, metallurgy, construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design, production detection and marketing.

What distinguishes our machine from other 's worldwide is our invention and innovation on practical and easy crushing, milling system. We believe that quality should be integrated into every part of our machine.

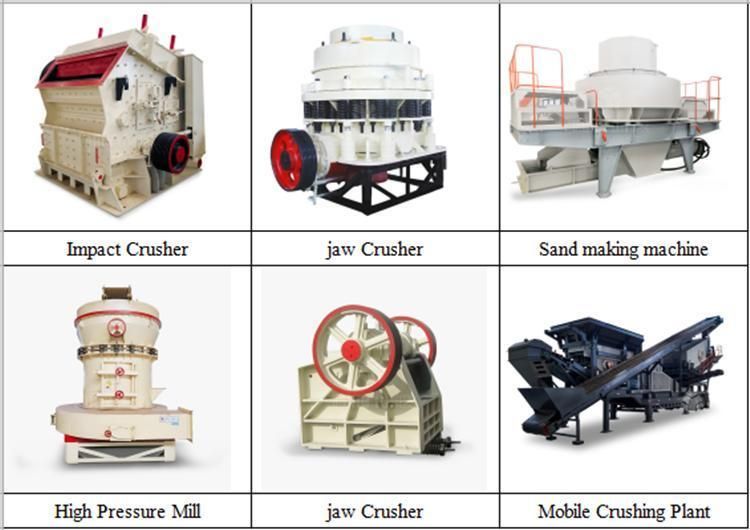

Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.

They are all designed, produced, manufactured and tested in accordance with the standard of ISO9001: 2000 international quality system standard. Our products are recognized as quality products by technical supervision departments.

Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions in quantity. And our Machines enjoy a high reputation in the foreign market. We welcome you visit our company, and hope we have chance to cooperate with you. Thank you.

Pre-sale services:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

Sales tracking:
(1) product acceptance.
(2) to help customers develop construction programs.

After-sale services:
(1) free to assign a dedicated service personnel, arriving at the scene and guiding customers' installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

We hope our perfect products and service can satisfy you, and welcome to our factory to visit. Looking forward to building long-term relationship with you!

Contact us

If you are interested in our products, please don't hesitate to contact us. We will provide you the most satisfying product and service. You can tell me the following questions, then I can send you accurate quotation soon, including additional discount!

1. Which machine do you need? like stone crusher, grinding mill or ball mill , etc.

2. what is your raw material plan to process? like limestone, granite or marble  ore, etc.

3. The capacity you need. Like 100 tones per hour or 2000 tones per day.

4. Your contact information. Both Email and phone number are essential, we can contact you easier.
