• Model NO.：Various
• Finished Surface：Cut Off Tool
• Certification：CE, ISO
• Condition：New
• Color：Red
• Capacity(T/H)：50-500tph
• Installation：We Dispatch Engineer
• Certificate：ISO9001-2008
• Spare Parts：Supply for Whole Life
• Warranty：1 1 Year Apart From Wearing Parts
• Feeding Size：Max 500mm
• Discharge Size：Adjustable
• Mining Object：Metallic and Non-Metallic Ore Excavator
• Transport Package：Export Standard Container
• Specification：International Standard
• Trademark：HengXing
• Origin：Henan Province China
• HS Code：84742090
• Production Capacity：30tph

Basic Info.

Model NO. Various Finished Surface Cut Off Tool Certification CE, ISO Condition New Color Red Capacity(T/H) 50-500tph Installation We Dispatch Engineer Certificate ISO9001-2008 Spare Parts Supply for Whole Life Warranty 1 1 Year Apart From Wearing Parts Feeding Size Max 500mm Discharge Size Adjustable Mining Object Metallic and Non-Metallic Ore Excavator Transport Package Export Standard Container Specification International Standard Trademark HengXing Origin Henan Province China HS Code 84742090 Production Capacity 30tph

Product Description

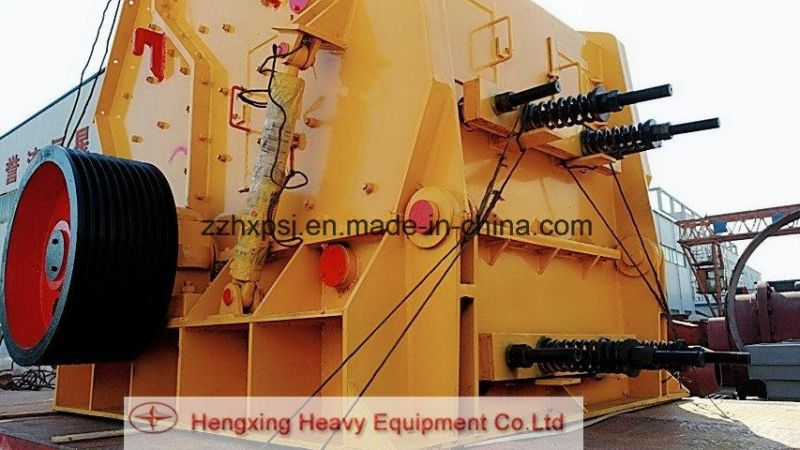

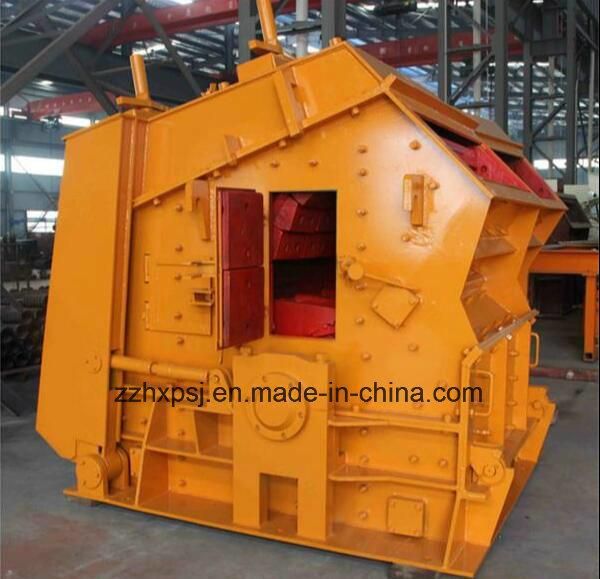

Quarry Stone Impact Crusher MachineApplicability- quarry stone impact crusher machine:
This kind stone crusher is widely applied to all kinds of materials crushing, processing and shaping, such as basalt, granite, cobble stone, limestone, etc.
Impact crusher is mainly used for crushing of large, medium and small materials with side length less than 500mm and compression strength no more than 350Mpa.

Processing capacity: 30-800t/h
Applicable materials: river pebbles, granite, basalt, iron ore, limestone, quartz stone, coal gangue, construction waste, etc.
Application: sand and gravel field, concrete sand, dry mortar, machine sand, power plant desulfurization, quartz sand, etc

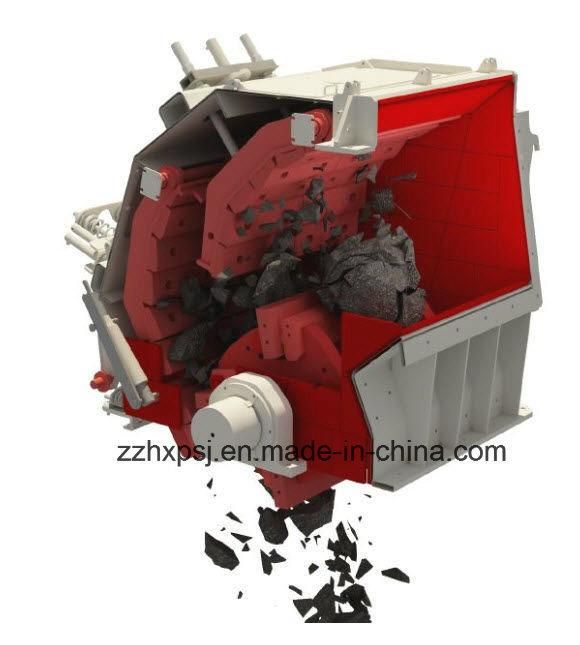

Principle of quarry stone impact crusher machine:
This machine is a crushing machine used for crushing various materials. The device takes blow bar the to do high-speed rotatory movement under the lead of the motor; When the materials entered the functional section of plate hammer, they experiment plate hammer's high-speed crushing and are throwed constantly to the reaction device installed on the rotor, then spring back to the functional section of plate hammer from the back board, and then are crushed again; The materials from big to small in the shredding breach to be broken repeatedly. Until the materials are broken to the demanded grain size, discharged from the bottom of the machine.



Performance features-quarry stone impact crusher machine:

1. Unique simple structure, keyless connection, easy maintenance

2. High-chromium plating hammer and special impact liner plate.

3. Capable of highly efficient hard rock crushing while saving energy.

4. The final product of impact crusher is in the shape of a cube; the discharge grain size is adjustable to simplify the crushing circuit.

5. Reliable performance.

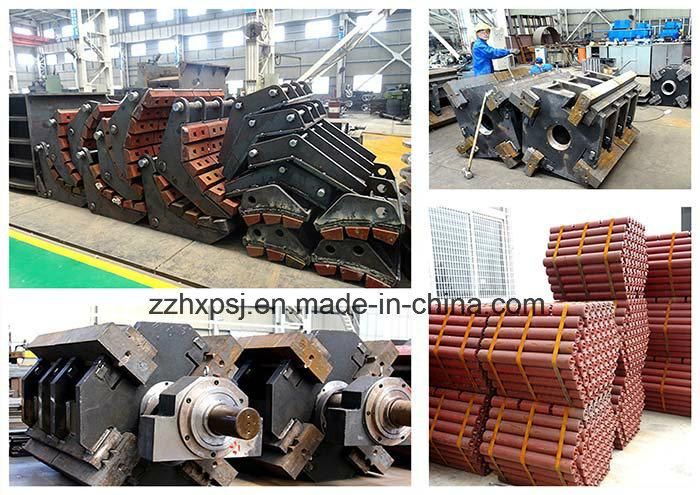

Impact crusher workshop :


Quarry stone impact crusher machine technical parameters:


Type	Spec.	Feeder Opening (mm)	Feeding Size (mm)	Crushing Capacity (t/h)	Motor Power (KW)	Weight (T)
PF-0607	Φ 644× 740	320× 770	100	10-20	30	6
PF-0807	Φ 850× 700	400× 730	300	15-30	30-45	8
PF-1008	Φ 1000× 800	400× 830	300	30-50	37-55	10
PF-1010	Φ 1000× 1050	400× 1080	350	50-80	55-75	13.1
PF-1210	Φ 1250× 1050	400× 1080	350	70-120	110-132	14
PF-1214	Φ 1250× 1400	400× 1430	350	130-180	132-160	18.6
PF-1315	Φ 1320× 1500	860× 1520	500	160-250	180-260	19
PF-1320	Φ 1320× 2000	860× 2030	500	300-350	300-375	24

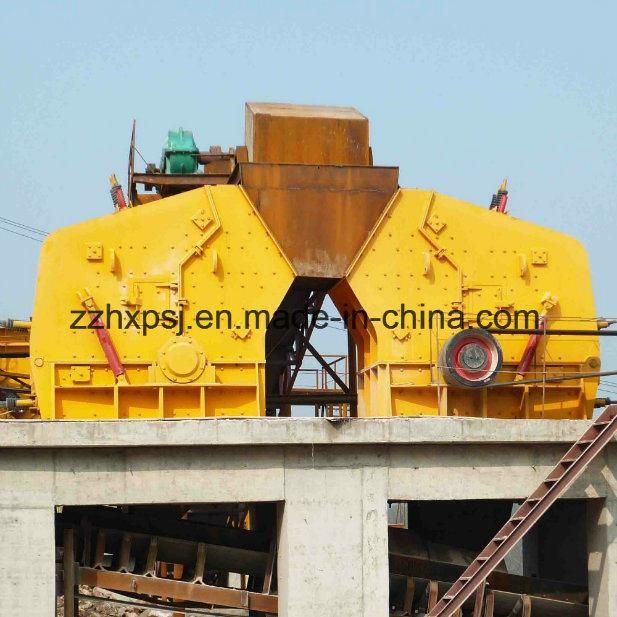

Quarry stone impact crusher machine working site :

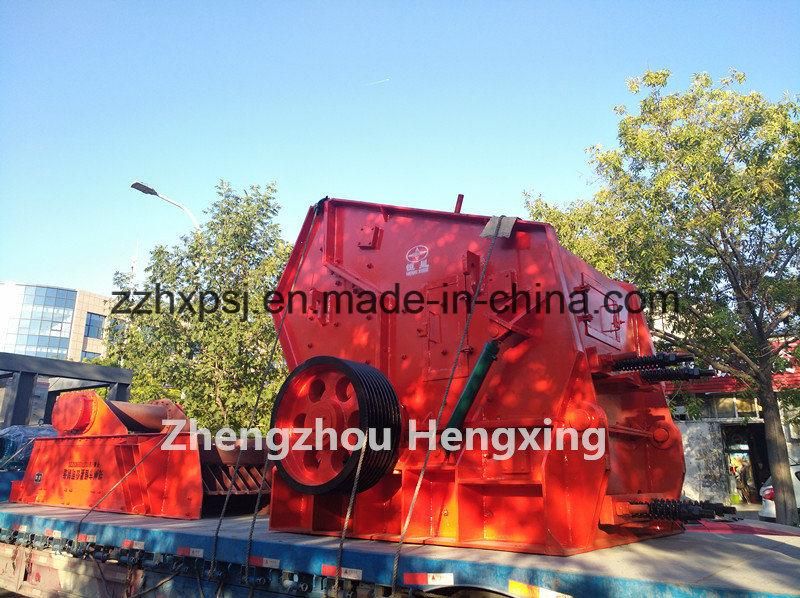

Zhengzhou Hengxing Impact crusher shipping for export :




You are welcome to contact us :
Sara
Mobile phone ): 0086 137 8347 1727
