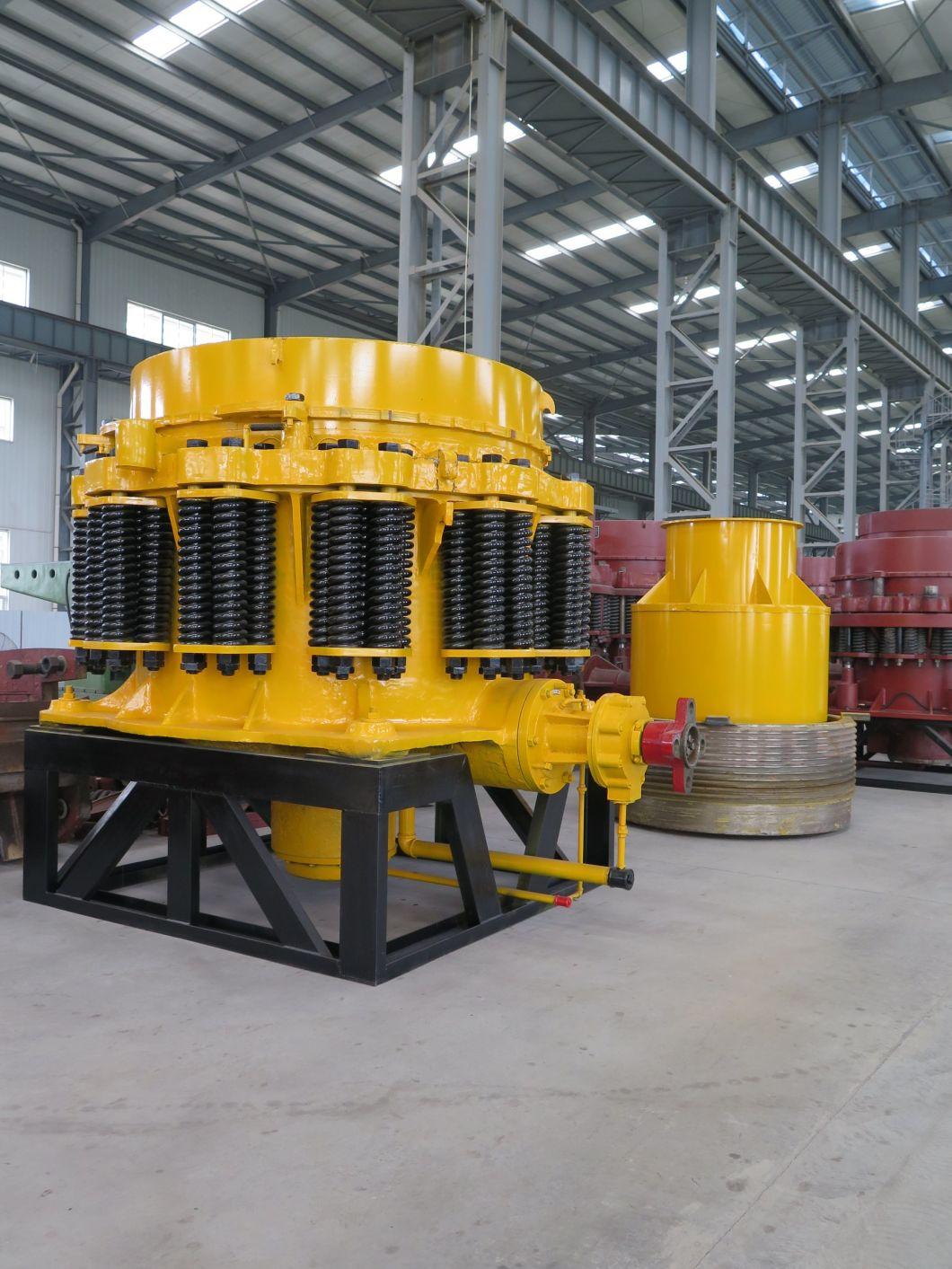

Mini S Series Cone Crusher for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Cone Crusher
- Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry
- Drive：Hydraulic
- Crushing Style：Extruding & Milling
- Compressive Strength (For Crushing)：>300MPA
- Crushing Degree：Intermediate Crusher
Base Info
- Model NO.：36
- Finished Surface：Cut Off Tool
- Certification：ISO, CCC
- Condition：New
- Color：Yellow
- Movable Cone Diametermm (Inch)：900 (3′)
- Rev (R/Min)：580
- Motor Model：Y315s-6,75
- Capacity (T/H)：45-91
- Machine Size (Mm)：2821*1880*2164
- Discharging Opening (Mm)：9-22
- Closed Side Max.Feeding (Mm)：102
- Open Side Max.Feeding (Mm)：83
- Chamber Style：Medium
- Power (Kw)：6-75
- Transport Package：Nude
- Specification：ISO, CE
- Trademark：Oriemac
- Origin：Shanghai, China
- Production Capacity：7000PCS,Month
Description
ModelMovable Cone Diametermm (inch) Chamber Style Opening Side Closed Side Discharging Opening (mm) REV (r/min) Power (kw) Motor Model Capacity (t/h) Machine Size (mm) Max.Feeding (mm) 36(3′) 900 (3′) medium 83 102 9-22 580 6-75 Y315S-6/75 45-91 2821×1880 ×2164 coarse 159 175 13-38 59-163 36(3′) 914 (3′) fine 13 41 3-13 580 6-75 Y315S-6/75 27-90 2821×1880 ×2410 medium 33 60 3-16 27-100 coarse 51 76 6-19 65-140 51(4.25′) 1295 (4 1/4′) fine 109 137 13-31 485 6-185 Y355M2-6/185 109-181 2800×2342 ×2668 medium 188 210 16-31 132-253 coarse 216 241 19-51 172-349 51(4.25′) 1295 (4 1/4′) fine 29 64 3-16 485 6-160 Y355M1-6/160 36-163 2800×2342 ×2668 medium 54 89 6-16 82-163 coarse 70 105 10-25 109-227 66(5.5′) 1650 (5 1/2′) fine 188 209 16-38 485 6-240 181-327 3911×2870 ×3771 medium 213 241 22-51 258-417 coarse 241 268 25-64 299-635 66(5.5′) 1650 (5 1/2′) fine 35 70 5-13 485 6-240 90-209 3917×2870 ×3771 medium 54 89 6-19 136-281 coarse 98 133 10-25 190-336 84(7′) 2134 (7′) fine 253 278 19-38 435 6-400 381-726 5200×4300 ×4700 medium 303 334 25-51 608-998 coarse 334 369 31-64 870-1400 84(7′) 2134 (7′) fine 51 105 5-16 435 6-400 190-408 5200×4300 ×4700 medium 95 133 10-19 354-508 coarse 127 178 13-25 454-599
