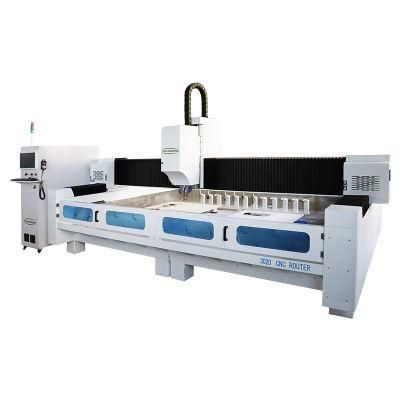

Bridge Cutting Kitchen Countertops Edge Polishing Stone CNC Router 4 Axis 5 Axis Stone Granite Engraving Cutting CNC Bridge Saw Machine
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- After-sales Service：Field Maintence ,Installation ,Technical Support
- Warranty：2 Years
- Function：Hollow out, Cutting, Line Engraving, Lettering, Polishing,Grimming,Sink Making
- Application Material：Marble
- Automation：Automatic
- Control：CNC
Base Info
- Model NO.：IGS-5A-3020
- Motor Power：High Power
- Engraving Head Speed Adjustability：Small Adjustable Range
- Certification：CE, ISO
- Current：AC
- Application：Decoration, Advertising, Art & Craft, Stone Industry
- Customized：Customized
- Key Words：Stone Bridge Cutting Saw
- Product Name：Stone Atc CNC Router
- Applications：Wood, MDF, Acrylic, PVC, Metal
- Driving System：AC Servo Motor
- Table：Vacuum Table or T-Slot
- Spindle Power：7.5kw Water Cooling Spindles
- Inverter：Fuling or Delta Optional
- Control System：Taiwan Lnc or Taiwan Syntec
- Dust Collector：with
- Vacuum Pump：with
- Transport Package：Standard Exporting Wooden Cases
- Specification：3000*2000mm
- Trademark：IGOLDEN CNC
- Origin：China
- Production Capacity：100 Sets,Month
Description
Voltage
380v-3phase,50hz
Motor power
4 kw
Stroke of X axis
3000mm
Stroke of Y axis
2000mm
Stroke of Z axis
260mm
Stroke of A axis
360 degree rotation
Cutting speed of X axis
1-2000mm/min
Cutting speed of Y axis
1-2000mm/min
Cutting speed of Z axis
1-1000mm/min
Rotating speed of A axis
0-7R/min
Cutting thickness
100mm
Cutting precision
0.2mm
Programing way
Manual or Import graphics
Overall size
4500x2750x2100mm
Weight
2000kg
Warranty
1 year for the machine frame, 6 months for electric parts
- Compact structure, small area coverage, no need to do ground foundation.
- Using advanced computer control system to achieve higher working efficiency.
- Powerful functions combined in one machine to achieve almost all processing works for small sized factory.
- High quality electrical components with long service life and low maintenance cost.

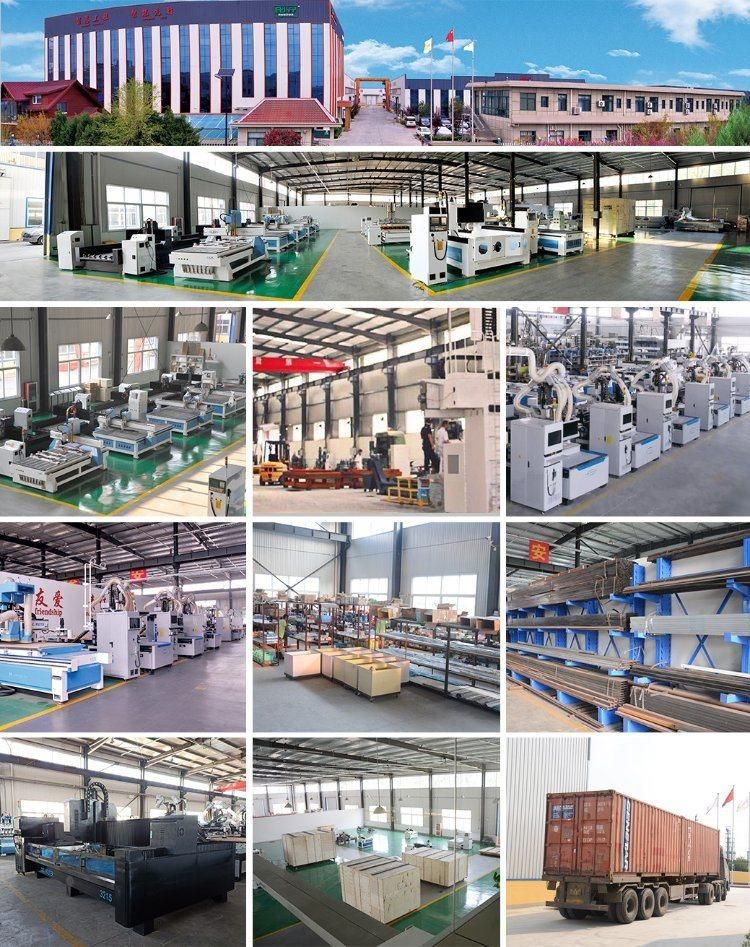

Company information:Jinan iGolden Cnc Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc. The main configuration all adopt top parts which imported from Italy, Japan,Germany, etc.
We adopt international advanced producing technologies to improve our products.Our products are widely used in advertising,woodworking, artworks, model, electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on. N
