• Model NO.：Crushing Machine
• Finished Surface：Outer Surface Process
• Certification：CE, ISO
• Condition：New
• Color：According to Customer Needs
• Primary Crushing：140mm<Material Fineness≤800mm
• Medium & Fine Crushing：30mm<Material Fineness
• Sand-Making Crushing：5~30mm
• Processing Type：Wet Process
• Product Quality：High Quality and Efficient
• Transport Package：Standard Packaging
• Specification：>300t,h
• Trademark：CHAENG
• Origin：Xinxiang City, Henan Province, China
• Production Capacity：5000 PCS , Year

Basic Info.

Model NO. Crushing Machine Finished Surface Outer Surface Process Certification CE, ISO Condition New Color According to Customer Needs Primary Crushing 140mm<Material Fineness≤800mm Medium & Fine Crushing 30mm<Material Fineness Sand-Making Crushing 5~30mm Processing Type Wet Process Product Quality High Quality and Efficient Transport Package Standard Packaging Specification >300t/h Trademark CHAENG Origin Xinxiang City, Henan Province, China Production Capacity 5000 PCS / Year

Product Description

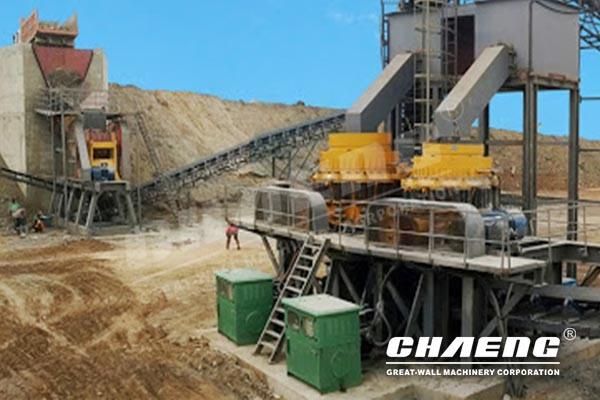

Stone Crushing Plant description

Sand Plant (Sand making plant) produce the crushed sand as an alternative of river sand. CHAENG have sand making machine like jaw crusher, cone crusher, impact crusher, hammer crusher, sand screening machine like vibrating screen. These sand crushing and screening equipment are for maximum productivity.

Sand making plants include quartz sand production line, building sand production line and stone material production line, all of which could produce aggregates and crushed sand from limestone, granite, basalt and river stone. Especially we have a lot of experience for sand plant and sand washing plant with river stone. All these products are widely used in the construction of hydraulic power plant, building material, highway, and urban infrastructure.

Sand making production line consists of vibrating feeder, Jaw Crusher, Cone Crusher, Impact Crusher (sand-maker), vibrating screen, sand washer (sand classifier), belt conveyor, water treatment system and centralized electronic control system.
 Stone Crushing Plant Working principle

Sand making plants are operating as followings. Firstly, the materials go to primary crusher (Jaw crusher) for primary crushing. Then the materials are transferred by the belt conveyor to secondary crusher (Cone crusher) for further crushing. Then the vibrating screen will grade the materials, where stones that meet the granularity standard will be sent to crusher (sand-maker), while the rest will be returned for another round of crushing. Part of the stones processed by crusher (sand maker) will be made into sand and become sand products after being washed. The rest will be further crushed by the sand maker into qualified sand materials of various types. Stone Crushing Plant (Price) System introduction
Crushing system
In the whole production line, the crushing system is divided into three parts: primary crushing, medium & fine crushing and sand-making crushing.
Primary crushing: 140mm < material fineness≤800mm
Medium & fine crushing: 30mm sand-making crushing: 5~30mm

Screening system
After the crushing of each part, the material will enter the corresponding material fineness screening system, and is distributed to the corresponding crushing system according to the fineness.

Washing system
The material of 0-5mm separated by the screening systems is firstly cleaned by their respective sand washing systems, then dewatered by the dewatering screen, and finally stored in the finished product shed.

Wastewater utilization system
After the sludge-containing wastewater is dewatered by the cyclone and the dewatering screen, the slurry flows into the lifting tank and is transported by the lift pump to the horizontal sedimentation tank. The bottom flow is sent to the sludge tank through the plunger pump, and the upper clear liquid flows into the clear water tank for production use. The slurry in sludge tank is sent to the filter press by the filter press feed pump. After the pressure filtration, the mud cake is transported by the belt conveyor to the yard of the plant, and the filtered water is discharged into the clear water tank for recycling.

Storage system
Fully enclosed finished product shed without dust leakage can meet the storage requirements of natural sandstone, machine-made sand and finished aggregate.

One-card-controlled loading system
Intelligently controlling the entire process of vehicle from weighing to loading and delivery can simplify the process and integrate the corresponding information system and automatic system, so as to reduce manual operations and comprehensively improve delivery efficiency and customer satisfaction.

Features and Advantages of the Stone Crushing Plant

Sand production line adopts a high level of automation and low operation cost, featuring features high crushing efficiency, energy conservation, great productivity, less pollution and easy maintenance. Stone products produced by the line get excellent shape, meeting the national standard for high-speed feeding materials.

To meet the process various processing types of rocks and the production demands in terms of size, productivity and quality, we will assemble the production line according to the specific situation of the site so as to achieve the highest economic efficiency for our investors. We will carry out feasibility investigation on the newly developed or expanded production lines. We will supervise the process design, manufacturing, equipment installment and debugging, operation and offer operation training, delivering our clients the most excellent services.

We assemble sand plant (sand-making production line) according to our client's requirement for material size, productivity and usage. We offer complete pre-sale, sale and after-sale services. We design the process in line with the production site of our clients so as to bring our clients the most rationally designed and the most economically efficient sand plant (sand making production line).

CHAENG's Strength

1.Based on high-end and advanced equipment

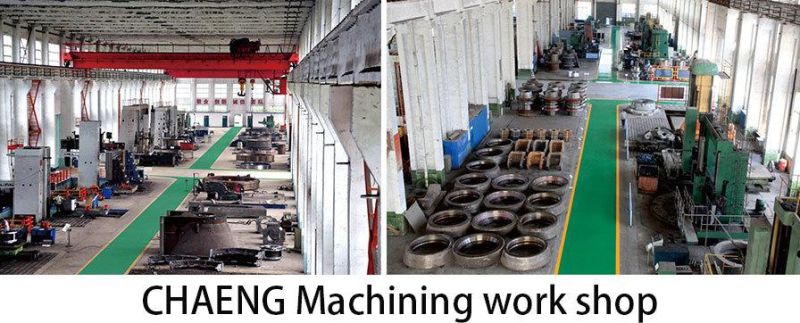

With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.
 2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
