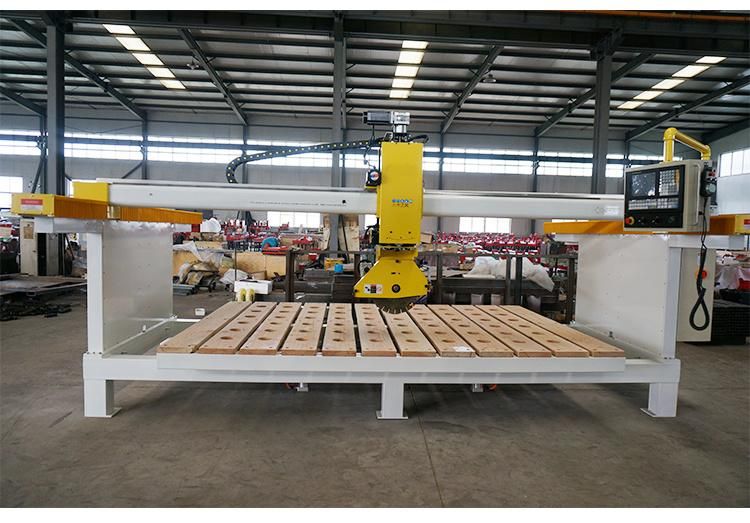

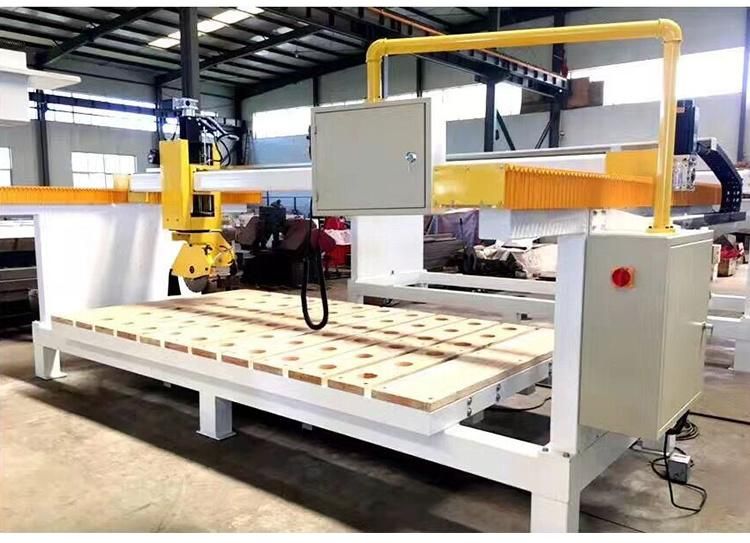

CNC Bridgesaw Automatic 4 Axis Stone Edge Profile Router Machine, Atc Counter Granite Cutting Stone Machines
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Type：CNC Cutting Machine
- Usage：Ceramics, Granite, Marble
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：Stone Machines
- Control：CNC
- Certification：ISO, CE
- Keywords：Bridge Saw CNC Stone Cutting Machine
- Working Area：3000*2000*350mm
- Table Size：3000*2000mm
- Spindle Power：4.5kw
- Table Structure：T-Slot
- Driving Motor：Servo Brand
- Working Speed：8m,Min
- Repositioning Accuracy：0.05mm
- Control System：Special CNC Control System
- Transmission：X,Y Rack and Pinion, Z Ball Screw
- Spindle：Water Cooling Spindle and Cutters
- Key Selling Points：High-Accuracy
- Spindle Speed：24000r,Min
- Transport Package：Plywood Case
- Specification：3000*2000*350mm
- Trademark：iGoldencnc
- Origin：China
- Production Capacity：500
Description
NO.
Description
Parameters
1
Working area
3000*2000*350mm
2
Table size
3000*2000mm
3
Transmission
X/Y rack and pinion, Z ball screw
4
Table structure
T Slot
5
Spindle power
4.5KW
6
Spindle speed
24000r/min
7
Travelling speed
10m/min
8
Working speed
8m/min
9
Working Delicacy
0.005mm
10
Repositioning Accuracy
0.05mm
11
Driving Motor
Servo brand
12
Control System
Special cnc control System
13
Command Code
G Code*.u00*.mmg*.plt
14
Power(without spindle)
1500W
15
Voltage
AC380/50HZ
16
Tilting table and loading wheel
With
17
Software
Artcam/Type3,other CAD/CAM
- Compact structure, small area coverage, no need to do ground foundation.
- Using advanced computer control system to achieve higher working efficiency.
- Powerful functions combined in one machine to achieve almost all processing works for small sized factory.
- High quality electrical components with long service life and low maintenance cost.
Packing details:
Inner packing: Plastic film
Outer packing: Strengthen standard export wooden case
Assure transport machines to the destination safely!
Company information:

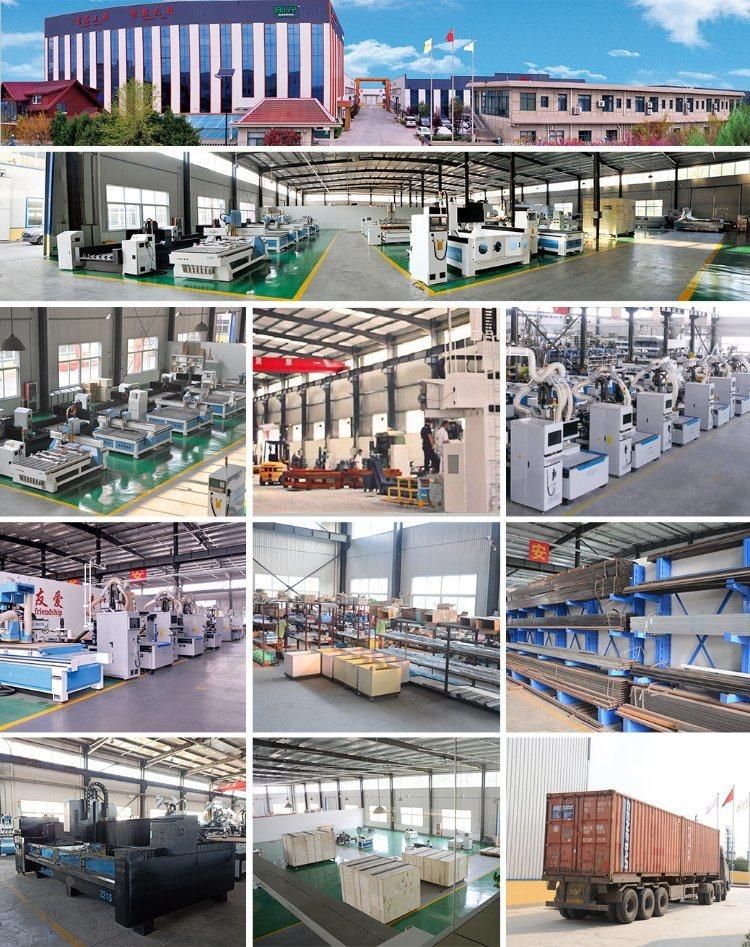

iGoldencnc group is one of manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years since 2002. Located in Jinan,shandong province,covers the area of 6000 square meters. Now we have two modern companies and more than 100 people,three sales teams, two product research and development teams, two after-sales service teams. Products exported to Europe,America,Australia,Africa,Asia etc.
FAQ.
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q6. What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.
Q7.MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
