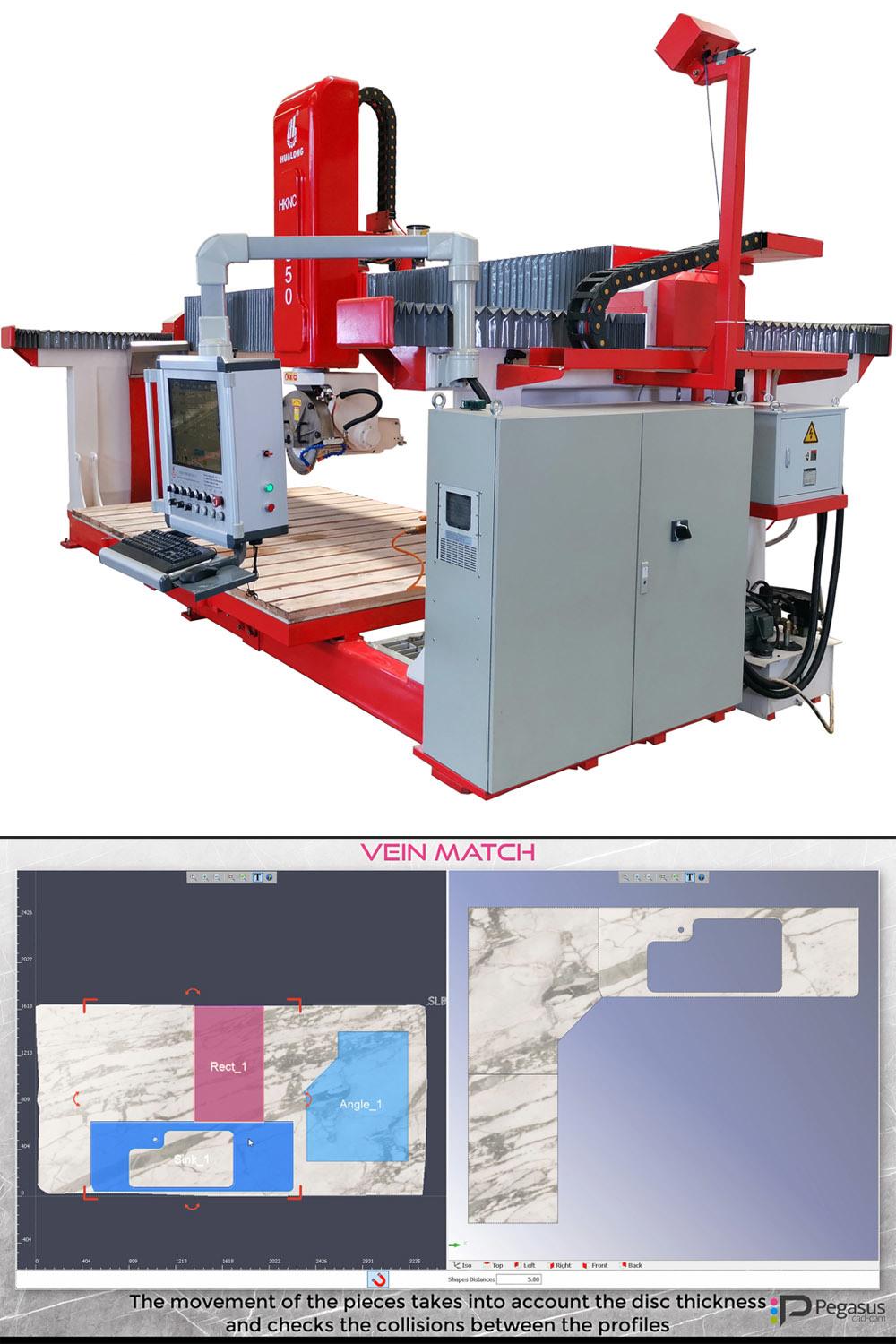

Hualong Machinery, Waterjet 5 Axis CNC Bridge Saw Stone Cutting Machine with Vacuum Chuck Multipurpose for Granite Marble Slab Countertop Vanity Ambry Slab
Fujian Province Hualong Machinery Co., Ltd.- Warranty：1 Year
- Type：CNC Cutting Machine
Base Info
- Model NO.：HKNC-650X
- Usage：Ceramics, Concrete Curb, Granite, Marble, Tile Quartz
- Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE
- Guide Rail：Linear Guide
- Gearing：Rack Gear
- Dimension of Working Table：3500*2100
- Diameter of Saw Blade：350-650mm
- Max. Cutting Thickness：190mm
- Max. Horizontal Length：3500mm
- Max. Lifting Travel of Cutter：500mm
- Max. Lifting Weight by suction Cups：200 Kg
- Cutter & Table Rotation：0-360 Degree Freely
- Head Tilting：0-90 Degree Freely
- Table Tilting：0-85 Degree Freely
- Gross Power：30.35kw
- Water Consumption：2 M3,H
- Power of Main Motor：15 Kw
- Gross Weight：5800 Kg
- Transport Package：Polypropylene Plastics Packing
- Specification：6300(L)*3600(W)*3100(H)mm
- Trademark：Hualong
- Origin：Putian, Fujian, China
- Production Capacity：50 Sets Per Month
- Package size per unit product：630.00cm * 360.00cm * 310.00cm
- Gross weight per unit product：5800.000kg
Description

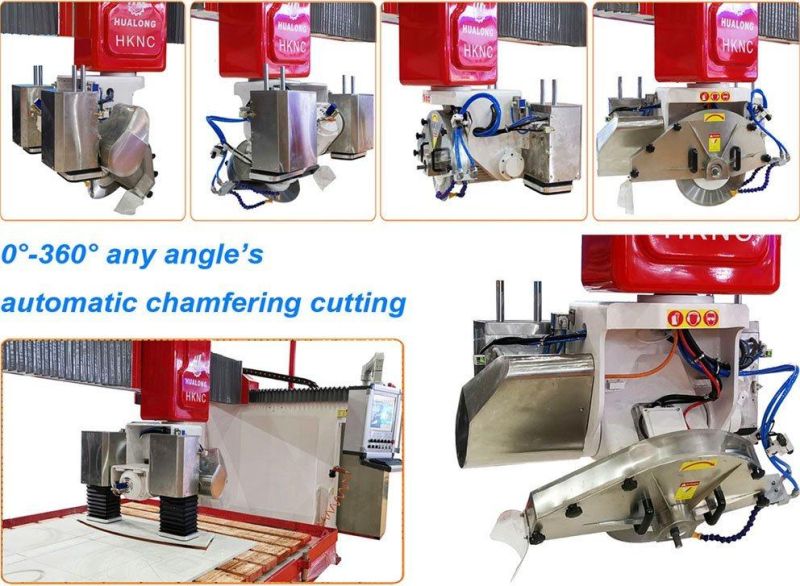

Specific Features: 1. 0° to 360° freely at any angle automatic positioning cutting.

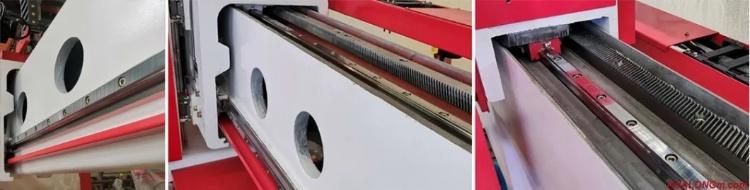

2. Taiwan Hiwin Linear guideway in "X, Y, Z" axis to guarantee accuracy and speed.

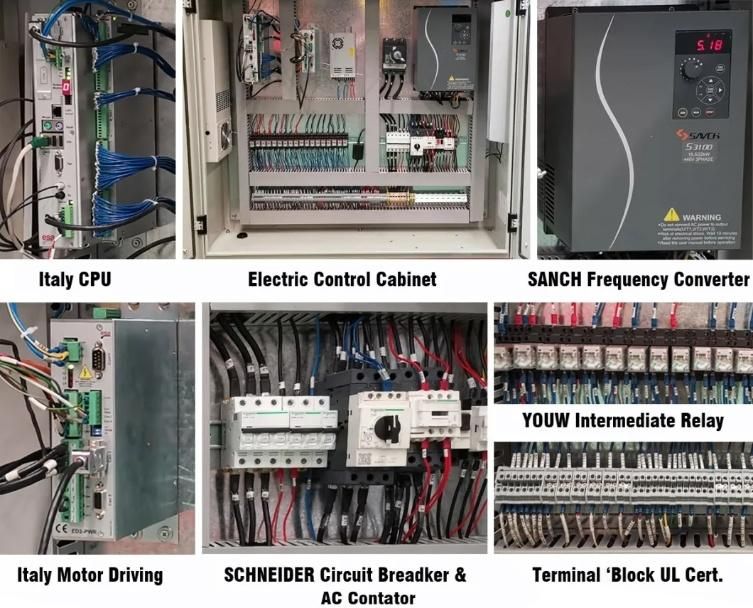

3. Electric components in international standards to be easily sourced.

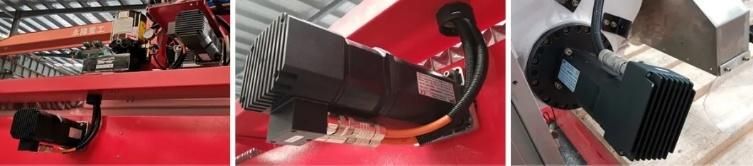

4. Italian imported original servo motors for 5 interpolated axes (X,Y,Z,C,A) to faciliate accuratepositioning and faster cutting.
5. Photo camera digitzer

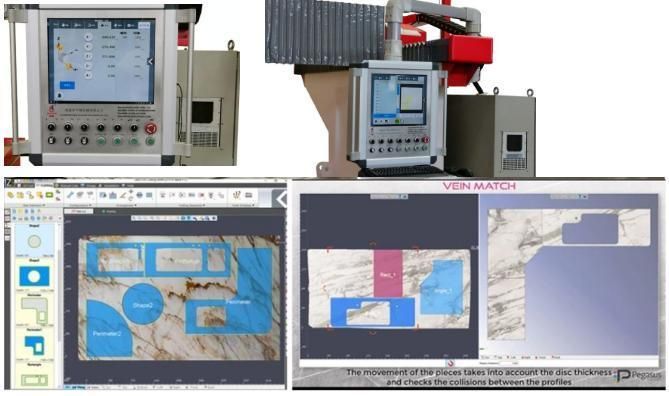

6. Italian imported original software and 15 inch industrial computer screen from Italy.
7. Italian control system in different languages for automatic cutting and easy operation, such as
English, Italy, Spanish, Chinese.
8. Milling & Engraving
9. Profiling and curved surface processing
10. Steel Structure
11. Safety door infrared induction (optional)

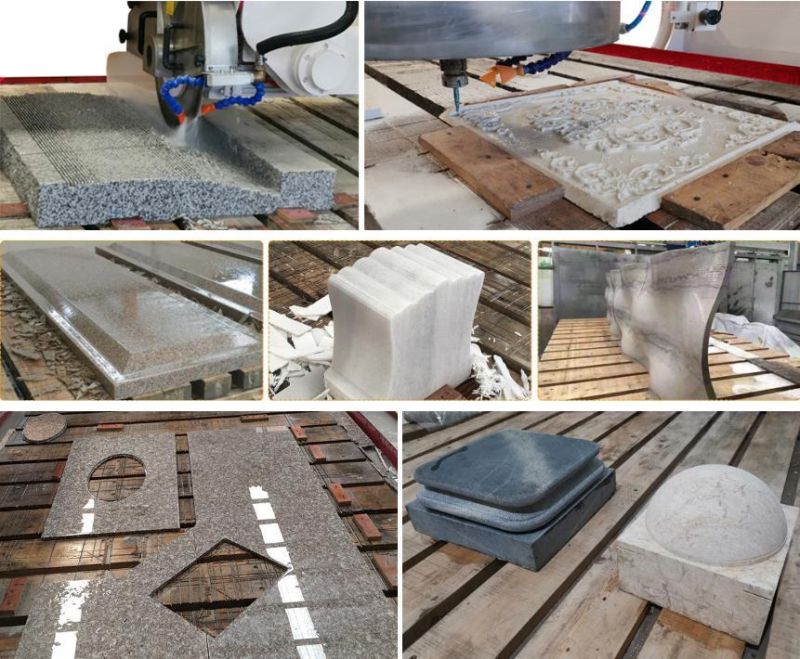

Application fields:
* 3D decorative wall panels* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
Pre-sale Service:
* Inquiry and consulting support.
* Configure best machine line according to customer's condition.
* View our factory
After-sale Service:
* Training how to install and how to use the machine.
* Engineers available to serve machinery overseas.
* Lifetime technology maintenance in free and spare parts supply.
Our Service
·All of our machine will be full-checked and tested by our quality control department before shipment.
·Lifetime technology maintenance in free
·Spare parts supply in free due to our defects within 12 months' warranty time and at cost out of 12 months.
·Free training for installation, operation and maintaince.
·Technical support all working days.
·English version 'instruction books', "Operation Manual" will be offered.
Packaging & Loading
1)All parts wrapped by waterproof PE film and/or air bubbles.
2)Spare and accessary parts of small size packed in plywood cartons.
3)With steel ropes to fix in container, anti-skid suitable for long distance shipment.
FAQ
Q1: Do You Offer Free Samples?
A1: Normally we don't offer free samples. But further solutions will be discussed respectively upon request.
Q2: Can You Supply Us Wearing Parts For The Bridge Cutting Machine?
A2: Sure, it is our duty.
Q3: How About The Delivery Time After Payment For The Order?
A3: Normally 25-45 days. It depends on the ordered models, quantity and our production duty engaged already.
Q4: What Service Can You Provide?
A4: Online technology support, engineers arranged to overseas for guiding machine installation training operation, debugging and maintenance.
