• Model NO.：YCJ-1500(I)
• Control：Common AC Contactor
• Certification：ISO, CE
• Conditiaon：New
• Container Type：20GP(DC)
• Transport Package：by Film Package
• Trademark：XINDA
• Origin：Yunfu City, China
• HS Code：84641090
• Production Capacity：800

Basic Info.

Model NO. YCJ-1500(I) Control Common AC Contactor Certification ISO, CE Conditiaon New Container Type 20GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 800

Product Description

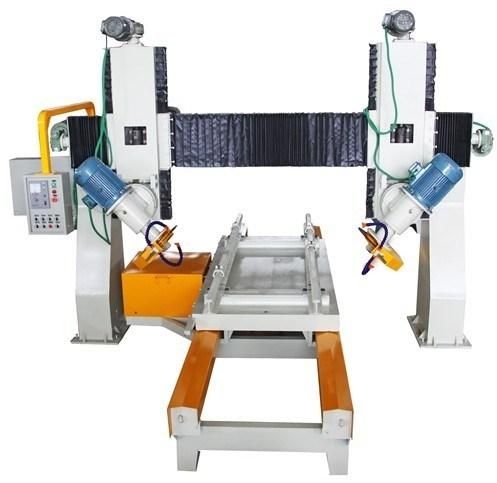

Function: The machine is used for cutting arc slab Vertical edge


 Brief introduction:1, AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand. 2,Cutter head moves left and right by screw rod transmission 3,Cutter head goes up and down by screw rod transmission 4,Worktable is driven by variable frequency motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.
Technical parameters:

Parameters	YCJ1500(I)
Blade diameter	Φ400-Φ600mm
Max Cutting Size	1500×1500mm
Maximum lifting travel	700mm
Water Consumption	4m³/hour
Overall Dimension	5600×4000×2800mm
Main motor power	2PCS×5.5KW
Total Power	15.5KW
Total Weight	3.6T

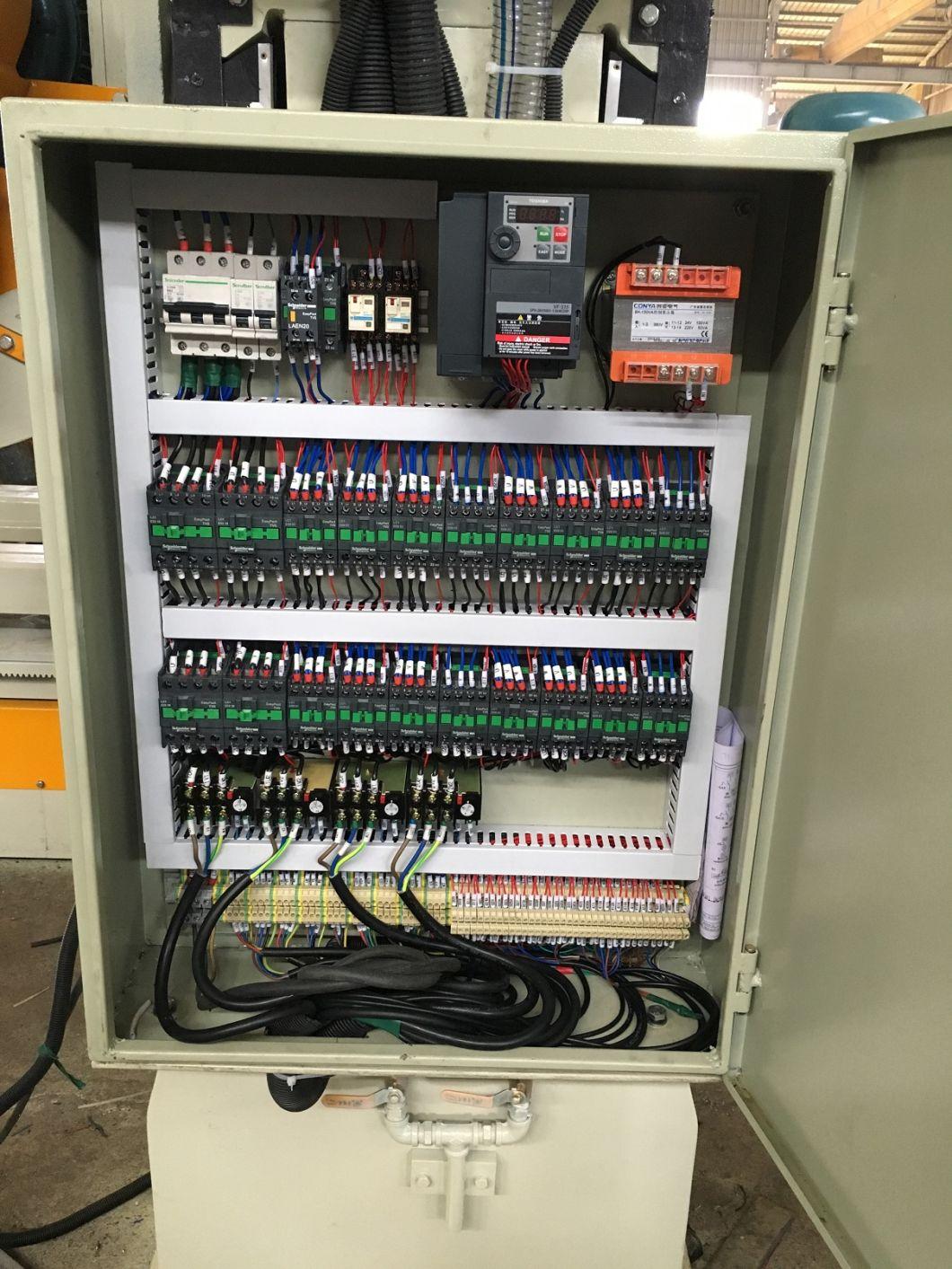

Electric Cabinet& Operation Panel Photos :



 Exhibition:FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 workdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.
