Zhongyuan Stonewin Diamond Wire Saw Machine for Marble Quarry
Fujian Ningde Aqt Imp. & Exp. Co. Ltd- After-sales Service：1 Year
- Warranty：1 Year
- Type：Wire Saw Machine
- Usage：Concrete Curb, Granite, Marble
- Application：Stone Industry, Stone Quarry
- Source Voltage：380V
Base Info
- Model NO.：ZY-45G-6P
- Automation：Automatic
- Cutting Ability：High Speed
- Control：PLC
- Certification：ISO, CE
- After Sale Service Team：20 Professional Teams
- Service Time：24 Hours
- Transport Package：by Polywood
- Specification：2550*1680*1670mm
- Trademark：Stonewine
- Origin：China
- HS Code：84641020
- Production Capacity：5000
Description

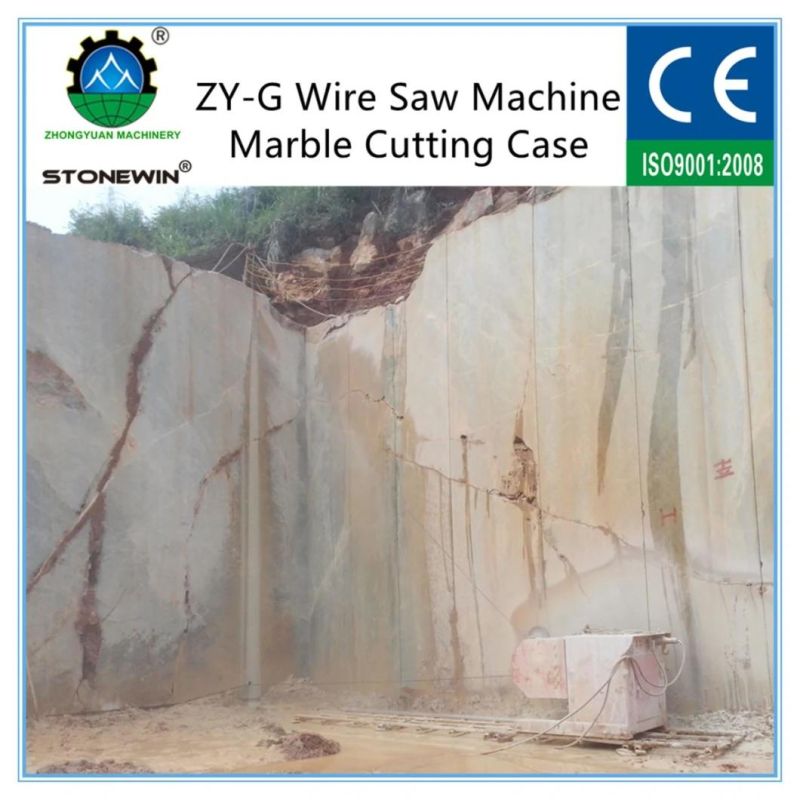

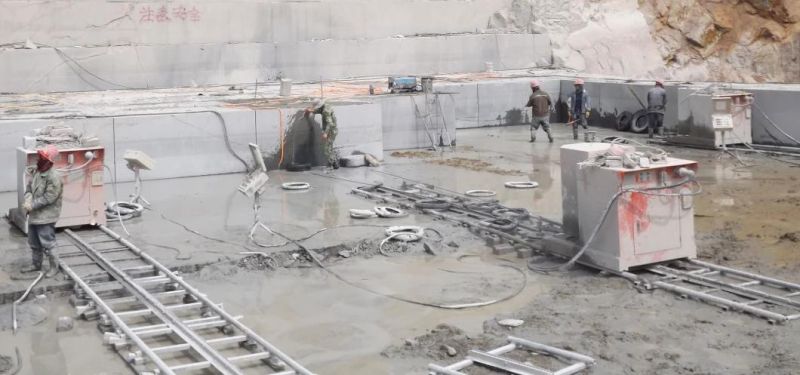

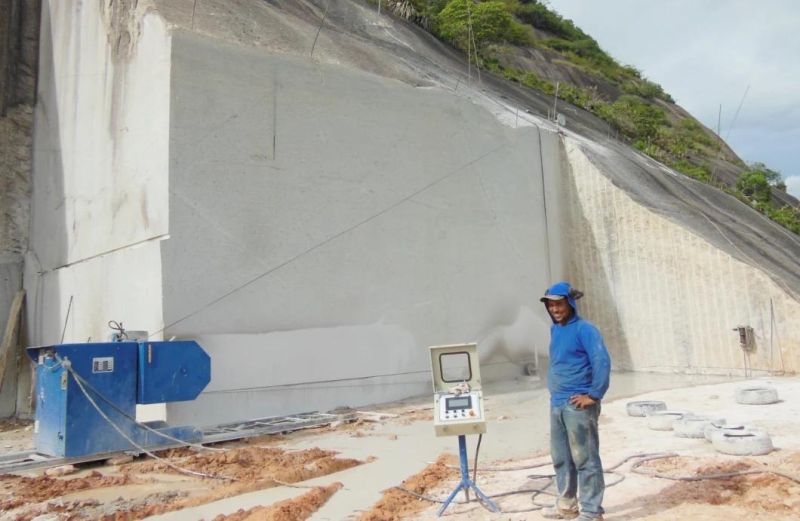

ZY-G SERIES WIRE SAW MACHINE FOR MARBLE QUARRYING PARAMETERMODEL ZY-45G-6P MAIN MOTOR POWER 45KW-6P(60HP) FLYWHEEL DIAMETER Φ800mm WIRE SAW SPEED 0-40m/s MAX.WIRE SAW LENGTH 20-80 meters WALKING MOTOR POWER 0.75kw(1HP) LATERAL MOVING DISTANCE 390mm MAX.LATERAL CUTTING DISTANCE 1700mm ROTATION ANGLE 360° MACHINE WALKING SPEED 0-60m/h RAIL LENGTH 2m*3+1m(7m) ALLOWED WORKING TEMPERATURE -15ºC~+40ºC DIMENSION 2320*1460*1450mm NET WEIGHT 2.8T
