• Model NO.：HLSQ-450
• Application：Art & Craft, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：Siemens PLC
• Certification：ISO, CE
• Color：Red and Ivory
• Guide Rail：Linear Guide
• Touch Screen：Siemens
• Gearing：Rack Gear
• Head Rotation：0,90,180,270 Degree
• Head Tilting：0,45 Degree
• Table Rotation：0-360 Degree
• Table Tilting：0-85 Degree
• Diameter of Saw Blade：400-450mm
• Dimensions of Working Platform：3300X2000mm
• Max. Length of Horizontal Cutting：3300mm
• Max. Cutting Thickness：100mm
• Max. Lifting Travel：300mm
• Power of Main Motor：15kw
• Gross Power：21.3kw
• Transport Package：Polypropylene Plastics Packing
• Specification：5700(L)*3260(W)*2765(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month
• Package size per unit product：570.00cm * 326.00cm * 276.50cm
• Gross weight per unit product：5400.000kg

Basic Info.

Model NO. HLSQ-450 Application Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control Siemens PLC Certification ISO, CE Color Red and Ivory Guide Rail Linear Guide Touch Screen Siemens Gearing Rack Gear Head Rotation 0/90/180/270 Degree Head Tilting 0/45 Degree Table Rotation 0-360 Degree Table Tilting 0-85 Degree Diameter of Saw Blade 400-450mm Dimensions of Working Platform 3300X2000mm Max. Length of Horizontal Cutting 3300mm Max. Cutting Thickness 100mm Max. Lifting Travel 300mm Power of Main Motor 15kw Gross Power 21.3kw Transport Package Polypropylene Plastics Packing Specification 5700(L)*3260(W)*2765(H) Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/Month

Packaging & Delivery

Package size per unit product 570.00cm * 326.00cm * 276.50cm Gross weight per unit product 5400.000kg

Product Description

HLSQ-450 is a SIEMENS PLC Controlled bridge saw with interpolated axes, rotating head and fixed work bench, specially engineered to cut and process the marble, granite, or other natural and engineered stones. The specific functions are listed as followings.
 1. 0° to 45° head tilting, 0° to 270° head rotation

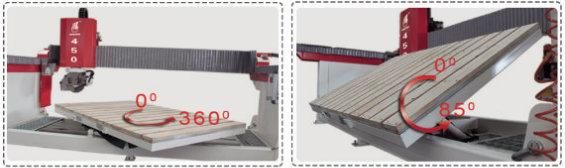

 2. 0° to 85° table tilting, 0° to 360° table rotation

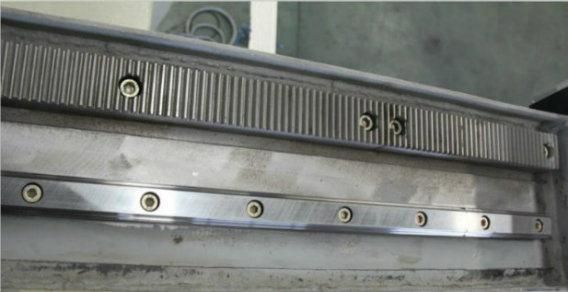

 3. Linear guideway in  "X, Y, Z" axis to guarantee accuracy and speed

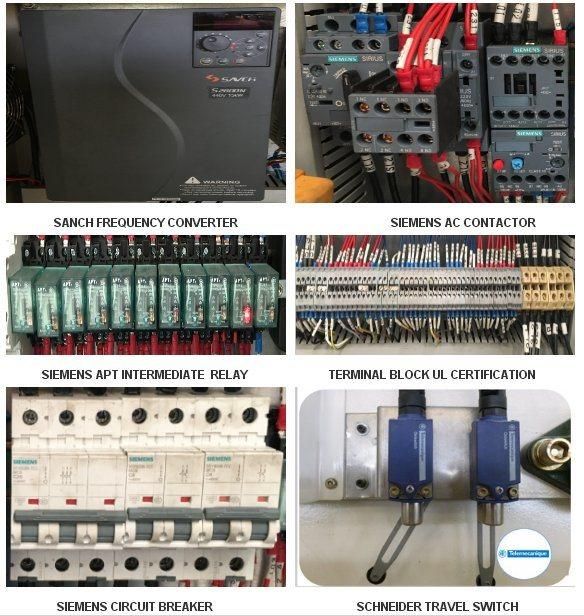

 4. Electric components in international standards to be easily sourced



 5. Full machine can be loaded in 20 GP container. Easy to load, transport and install due to its monobloc structural frame.

 6. SIEMENS PLC control system in 4 Languages for automatic cutting and easy operation.

 7. Spindle motor variable speed by means of inverter (Optional).

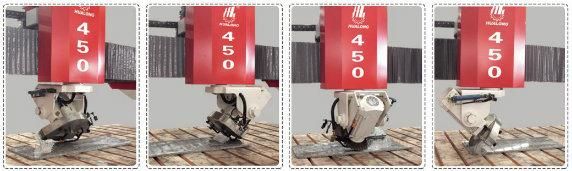

 8. 0° - 90°- 180° - 270° full automatic positioning chamfering cutting

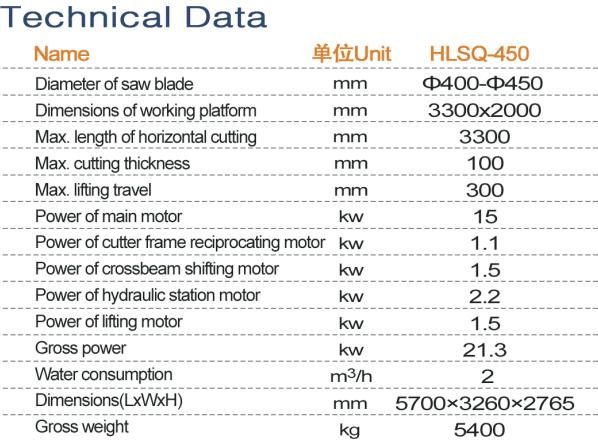

 Technical data of the machine shown as below

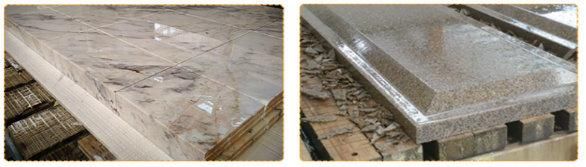

The finished products that our machine can process are shown as followings
