• Model NO.：HLQY-700
• Application：Machinery & Hardware, Art & Craft, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO, CE
• Head Tilting Position：45 Degree
• Table Rotate：90-360 Degree
• Table Tilt：0-85 Degree
• Guide Rail：Linear Guide
• Gearing：Rack Gear
• Max. Processing Dimensions：3200X3200X2200mm
• Blade Diameter：400-700mm
• Working Table Dimension：3200X2000
• Power of Main Motor：18.5kw
• Water Counsumption：4 Stere,H
• Dimension of Machine：6000*5000*2800mm
• Gross Weight：6100kg
• Transport Package：Plastic Packing
• Specification：6000x5000x2800mm
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50PCS,Month
• Package size per unit product：600.00cm * 500.00cm * 280.00cm
• Gross weight per unit product：6100.000kg

Basic Info.

Model NO. HLQY-700 Application Machinery & Hardware, Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control PLC Certification ISO, CE Head Tilting Position 45 Degree Table Rotate 90-360 Degree Table Tilt 0-85 Degree Guide Rail Linear Guide Gearing Rack Gear Max. Processing Dimensions 3200X3200X2200mm Blade Diameter 400-700mm Working Table Dimension 3200X2000 Power of Main Motor 18.5kw Water Counsumption 4 Stere/H Dimension of Machine 6000*5000*2800mm Gross Weight 6100kg Transport Package Plastic Packing Specification 6000x5000x2800mm Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 600.00cm * 500.00cm * 280.00cm Gross weight per unit product 6100.000kg

Product Description

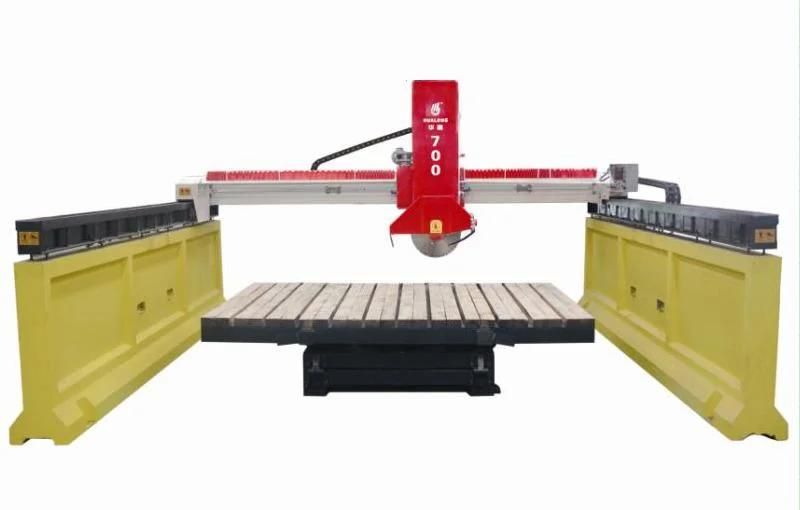

HLSQ-700 is a PLC Controlled bridge saw with interpolated axes and human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device.
With rotating and tilting work bench, the machine can fullfill the vertical and horizontal cutting.
Head can be 45° chamfering cutting.
The main spare parts of the machine adopt high-quality materials.
Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy-operation. Specially engineered to cut and process of marble, granite, or other natural and engineered stones.
