Granite Router Cutting Machines CNC Stone Machinery

Jinan Zhongke CNC Equipment Co., Ltd.
  • Function:Line Engraving
  • Application Material:Marble
  • Automation:Manual
  • Control:CNC
  • Motor Power:High Power
  • Engraving Head Speed Adjustability:Wide Adjustable Range

Base Info

  • Model NO.:1325
  • Certification:CE, ISO
  • Current:AC
  • Application:Stone Industry
  • Customized:Customized
  • Inverter:Sunfar Inverter
  • Control System:Ncstudio Control System
  • Spindle Speed:6000-24000rpm,Min
  • Motor:Stepper Motor
  • Highest Engraving Speed:8m,Min
  • Transmission:Helical Rack
  • Power:3-8kw
  • Guide Rail:Taiwan Hiwin Square Guide Rail
  • Colour:Customized
  • Spindle:Water Cooling Spindle
  • Transport Package:Plywood Package
  • Specification:1300*2500mm
  • Trademark:ZHONGKE
  • Origin:Jinan Shandong
  • HS Code:84649000
  • Production Capacity:100

Description

Basic Info.

Model NO. 1325 Certification CE, ISO Current AC Application Stone Industry Customized Customized Inverter Sunfar Inverter Control System Ncstudio Control System Spindle Speed 6000-24000rpm/Min Motor Stepper Motor Highest Engraving Speed 8m/Min Transmission Helical Rack Power 3-8kw Guide Rail Taiwan Hiwin Square Guide Rail Colour Customized Spindle Water Cooling Spindle Transport Package Plywood Package Specification 1300*2500mm Trademark ZHONGKE Origin Jinan Shandong HS Code 84649000 Production Capacity 100

Product Description

granite router cutting machines cnc stone machinery

Granite Router Cutting Machines CNC Stone Machinery
Feature:
1.Adopt Taiwan HIWIN guide rail. the bearing of the lead guide is face to face, long time to use and high precision.
2.high precision ball screw, and screw rack, make better accuracy.
3.dustproof and waterproof system, guarantee the long term running of the merchanical aspect.
4.Breakpoint memory, can engrave at the breakpoint after power off and breaking knife.
4.compatibility software: CAD/CAM, such as type3, artcut, proe, wentai,castmate Corelerow etc.
5. stepper motor working mode
6.water cooled spindle, rotation speed is 24000rpm/min.
7 Ncstudio control system, we offer CD for traning.
Specification:
Performance indexstone work cnc engraving machine
Sculpture range1300×2500mm
Z working area300mm
table size15000×3000mm
Max feeding300mm
 rotation axis diameter12.5cm/ 20cm
Highest engraving speed8m/min
resolution0.05mm
Reposition accuracy0.05mm
commandG Code*.u00*.mmg*.plt
surrounding for Softwarewindows98/2000/xp
Power (do not contain spindle)2kw/3kw/4.5kw
powerAC380V/50Hz
main axle power rate  3.0-4.5KW
main axle rotating speed6000-24000rpm/min
work modestepper

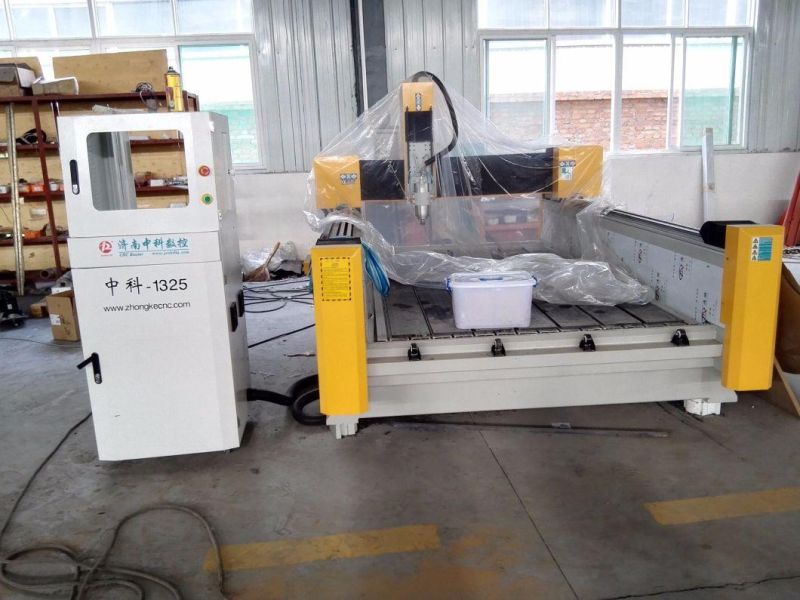

Granite Router Cutting Machines CNC Stone Machinery

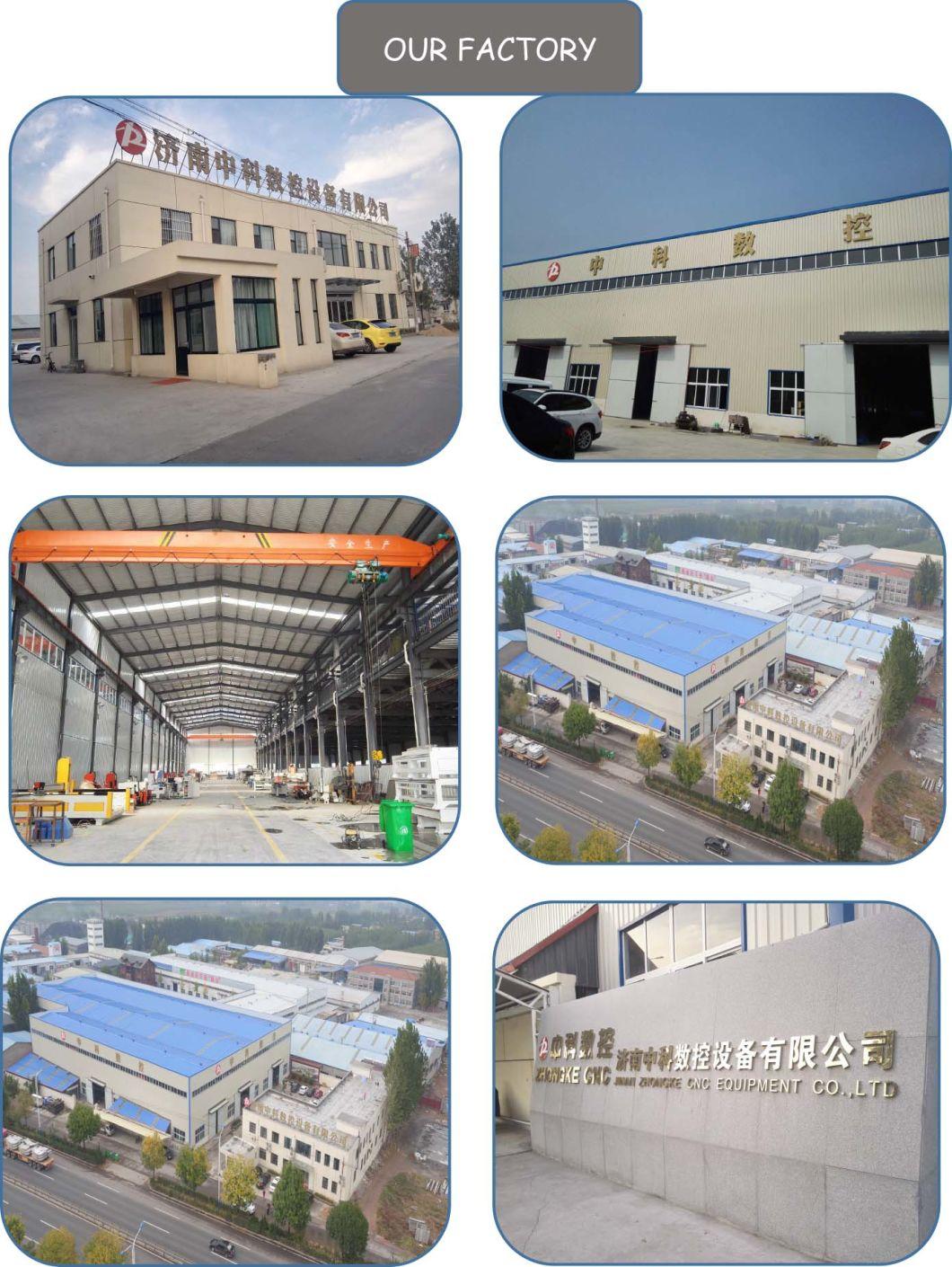

Our factory

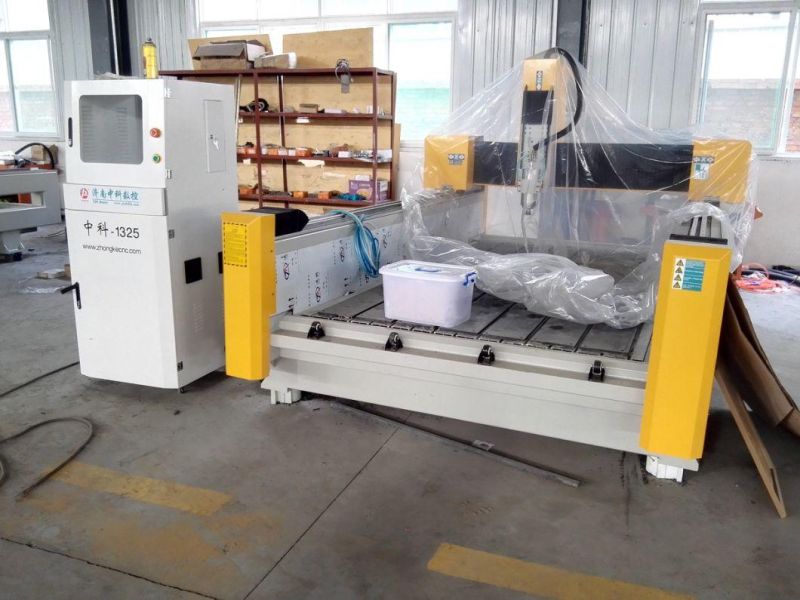

Granite Router Cutting Machines CNC Stone Machinery
