• Model NO.：YF series
• Crushing Style：Grinding & Impact
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Intermediate Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. YF series Crushing Style Grinding & Impact Compressive Strength (For Crushing) >300MPA Crushing Degree Intermediate Crusher Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

High Capacity 200-1000t/H Primary Mobile Jaw Crusher Machinery Price



 introduction of Primary Mobile Jaw Crusher Machinery Price  :

Primary Mobile Jaw Crusher Machinery provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. Primary Mobile Jaw Crusher Machinery concept is fully adaptable to all mobile crushing needs, it set up a new range of business opportunities for coarse and fine crushing. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, it is the best choice.

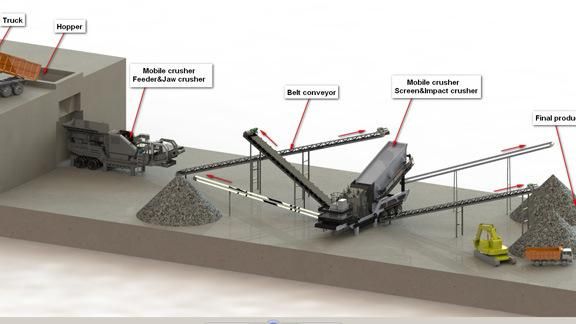

Working Principle of Primary Mobile Jaw Crusher Machinery :

The main station and crushing equipment for crushing tyre mobile (optional jaw crusher, impact crusher, cone crusher, impact crusher machine), material feeder uniform delivery to the crusher preliminary broken, was later by the circular vibrating screen form a closed system, realize the circulation of the material crushing, meet size requirements of material from the conveyor output, so as to achieve the purpose of production. The mobile crushing station can be based on actual production the need to remove the circular vibrating screen, and directly to the material preliminary broken, and then with other crushing equipment for specific operation, convenient, flexible.

Primary Mobile Jaw Crusher Machinery features:

1. Primary Mobile Jaw Crusher Machinery series high performance crusher
2. Incorporated the feeder, belt conveyor and vibrating screen into the crusher
3. Steering traction axis, convenient for road transportation
4. Support legs on truck, quick to set-up
5. Electric motor and control cabinet are incorporated

Primary Mobile Jaw Crusher Machinery parameters:


Parameter model	Transport length (mm)	Transport height (mm)	Transport width (mm)	Max. height (mm)	Max. width (mm)	Belt conveyor height (mm)	Total weight (ton)
YF938J69	11200	3900	2450	4700	2900	2600	42
YF1142J710	13000	4400	2450	5100	3100	2600	55
YF1349J912	15000	4800	3000	5600	3300	2800	72

Configuration

Parameter model	Feeder spec	Jaw crusher	Belt conveyor	Extended belt conveyor	Generator	Capacity (t/h)	Power (kw)
YF938J69	GZD-960X3800	PE600X900	B650X7M	Optional	Optional	70-150	91.5
YF1142J710	GZD1100X4200	PE750X1060	B800X9M	Optional	Optional	90-200	134
YF1349J912	GZD-1300X4900	PE900X1200	B1000X11M	Optional	Optional	150-300	146
