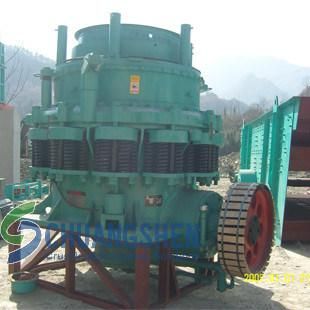

Concrete Cone Crusher, High Performance Symons Cone Crusher (CPYS)
Chemact (Liaoning) Petrochemicals Ltd.- Type：Cone Crusher
- Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry
- Drive：Electric
- Crushing Style：Extruding & Milling
- Compressive Strength (For Crushing)：<300mpa
- Crushing Degree：Intermediate Crusher
Base Info
- Model NO.：CPYS
- Finished Surface：Thread Process
- Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
- Condition：New
- Color：Black
- Power(W)：75-400(Kw)
- Capacity(T/H)：20-2000
- Brand Name：Chuangshen
- Model Number：Cpys Cone Crusher
- Dimension(L*W*H)：Negotiable
- Weight：12367-89500(Kg)
- Warranty：Mainframe Is One Year (Excluding The Quick Wear PA
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Max Feeding Size(mm)：500
- Transport Package：Standard Packaging
- Specification：Industrial grade
- Trademark：chuangshen
- Origin：Shanghai China
- Production Capacity：5set,Day
Description
Model
Diameter Of
Crushing Cone (mm)
Adjustable Range Of Discharge
(mm)
Feed Opening Of Min
Discharging(Open Side)(mm)
Max Feed Size
(mm) Capacity
(t/h) Power
(kw) Weight
(kg) Overall Dimensions
(LxWxH)(mm) CPYS-36 Standard S 900 9~22 102 85 45~91 75 12367 2650x1640x2241 X 13~38 175 150 59~163 75 12221 XL 25~38 178 150 118~163 75 12220 CPYS-36 Short S 3~13 41 35 27~90 75 13164 L 3~16 76 65 27~100 75 13321 X 6~19 102 85 59~129 75 13316 CPYS-51 Standard S 1300 13~31 137 115 109~181 160 22476 2980x1870x3160 M 16~38 210 178 132~253 160 22167 X 19~51 241 205 172~349 160 22120 XL 25~51 259 220 236~358 160 22125 CPYS-51 Short S 3~16 64 54 36~163 160 21703 M 6~16 89 76 82~163 160 21675 X 8~25 105 89 109~227 160 21789 XL 16~25 133 113 209~236 160 21821 CPYS-66 Standard S 1600 16~38 209 178 181~327 250 41460 3900x2930x3200 M 22~51 241 205 258~417 250 41087 X 25~64 269 228 299~635 250 40834 XL 38~64 368 313 431~630 250 40674 CPYS-66 Short S 5~13 70 60 90~209 250 40734 M 6~19 89 76 136~281 250 40614 X 10~25 133 113 190~336 250 40531 XL 13~25 152 129 253~336 250 40374 CPYS-84 Standard S 2100 19~38 278 236 544~1034 400 86730 4960x3540x4090 M 25~51 334 284 862~1424 400 86730 X 31~64 369 314 1125~1814 400 86730 XL 38~64 460 391 1252~1941 400 86730 CPYS-84 Short S 5~16 105 89 218~463 400 89500 M 10~19 133 113 404~580 400 89500 X 13~25 178 151 517~680 400 89500 XL 16~25 203 172 580~744 400 89500
