• Model NO.：CSCB
• Finished Surface：Thread Process
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Condition：New
• Color：Black
• Power(W)：50-500kw
• Capacity(T/H)：40-600
• Place of Origin：Shanghai, China (Mainland)
• Brand Name：Chuangshen
• Model Number：Cscb, CPL
• Dimension(L*W*H)：Negotiate
• Weight：4730-22500kg
• Warranty：One Year(Excluding The Spare Parts)
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Standard Packaging
• Specification：Industrial grade
• Trademark：chuangshen
• Origin：China
• Production Capacity：5set,Day

Basic Info.

Model NO. CSCB Finished Surface Thread Process Certification CE, ISO, GOST, SONCAP, UL, CCC, API Condition New Color Black Power(W) 50-500kw Capacity(T/H) 40-600 Place of Origin Shanghai, China (Mainland) Brand Name Chuangshen Model Number Cscb, CPL Dimension(L*W*H) Negotiate Weight 4730-22500kg Warranty One Year(Excluding The Spare Parts) After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Standard Packaging Specification Industrial grade Trademark chuangshen Origin China Production Capacity 5set/Day

Product Description

vsi crusher equipment , china vertical shafting impact crusher

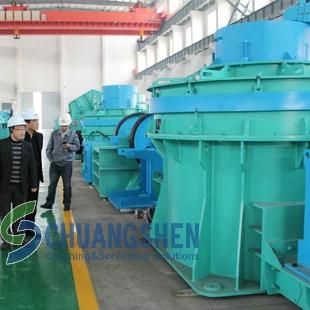

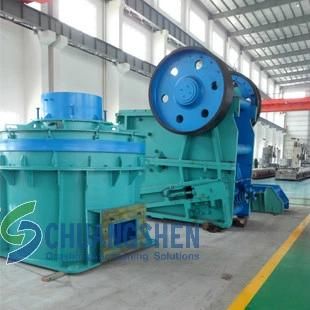

I.China Vertical Shaft Impact Crusher



Vertical shaft impact crushers, also called sand making machines, are fine crusher styles based on the principle of impact and attrition. Vertical shaft impact crushers are appropriate for various environments, especially for crushing brittle, hardness and grind materials. Vertical shaft impact crushers give uniform product size which are the best available choice for artificial sand making of construction, irrigation works, building and mining industrials. Vertical shaft impact crushers would work safely many years as long as users check and maintain on time.



II.China Vertical Shaft Impact Crusher appropriate for



Brittle hardness and grind materials such as ore, concrete, limestone, cobble, granite, metallurgy slag Secondary, tertiary and fine crushing stages or coarse grinding stage or shaped aggregate stage. Artificial sand making, concrete, beneficiation and grinding used in modern construction, irrigation works, building and mining industrials.



III.Main advantages of China vertical shaft impact crushers



Convertible Crusher Design; Single or dual motor mount configuration; Oil lubrication system comprised of tank, pump, temperature switch, flow meter, oil cooler, oil heater and valve assembly Adjustable hopper ensures the best inlet amount; Cubic particles; High output and low power;

 We offer two types vertical shaft impact crushers, CSCB series absorb German technology with Oil lubrication system, CPL series are grease lubrication system

Model	Max Feed Size(mm)	Eccentric Shaft Speed(r/min)	Capacity(t/h)	Power(kw)	Weight(kg)
CSCB-850	50	800-1800	200-350	(110-200)x2	10950
CSCBF-850	50	800-1800	200-350	(110-200)x2	13350
CSCBL-850	50	800-1800	250-400	(110-200)x2	10980
CSCB-1000	63	800-1800	350-600	(200-250)x2	13730
CSCBF-1000	63	800-1800	350-600	(200-250)x2	16380
CSCBL-1000	63	800-1800	450-600	(200-250)x2	13990
CPL(ST)-550	30	2258-2600	40-60	30-45	4730(5300)
CPL(ST)-700	35	1775-2050	80-100	55-90	7150(7750)
CPL(ST)-850	50	1460-1720	100-240	150-220	11680(12350)
CPL(ST)-1000	60	1240-1460	150-320	220-320	15800(17300)
CPL(ST)-1200	60	950-1220	200-500	320-500	20150(22500)
