• Model NO.：JCS1325R 4Head
• Certification：CE, ISO, BV, TUV
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized

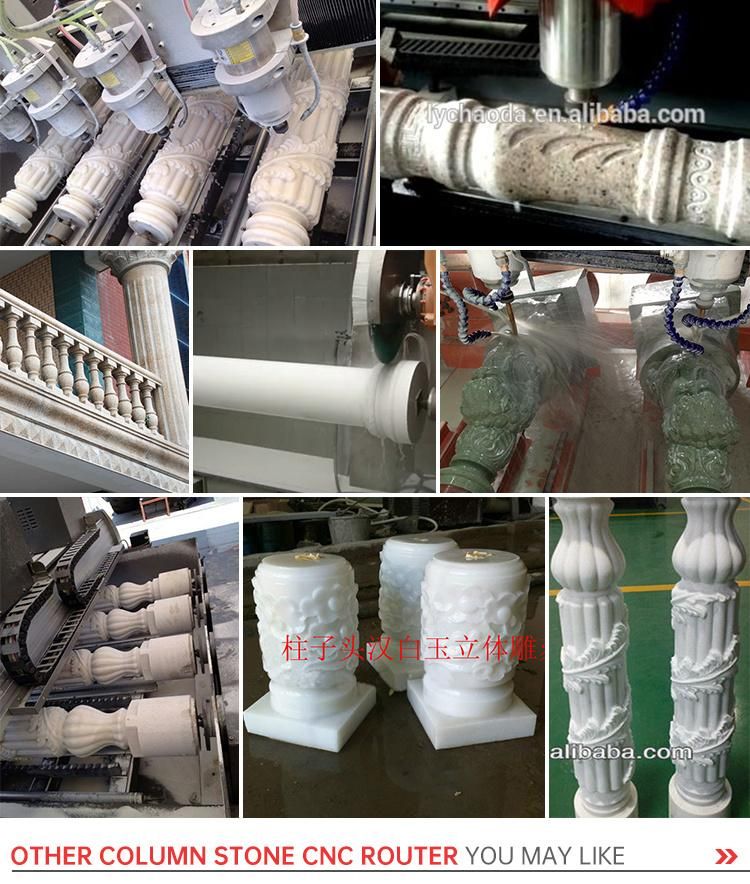

• Usage：Stone Column, Railing, Balustrade, Statue
• Applicable Material：Wood, Stone, Plastic, Soft Metal Engraving
• Rotary Working Area：200mm Diameter*1300mm Length *4
• Spindle Number：4 Pieces
• Spindle Power：3kw Water Cooling
• Spindle Rotation Speed：24000rpm
• Collet：Er20
• Travel Motors：Japan Servo Motors
• Invertor：Taiwan Delta
• Controlling System：4 Axis Nc Studios
• Compatible Software：All Cam Software, Powermill, Ug etc
• Overall Size (L*W*H)：2.91m, 2.26m, 2.21m
• Water Proof Dust Cover：Yes
• Oil System：Yes
• Machine Weight：2500kg
• Transport Package：Outside: Standerd Plywood Case Package
• Specification：working size: 200mm(D)*1300mm(L)*4pc
• Trademark：CHAODA
• Origin：China
• HS Code：8464909000
• Production Capacity：1200sets,Year

Description

Parameters

Model

JCS1325R-4H

working area

200mm diameter, 1300mm length

Guide Rail

Taiwan HIWIN square linear guide rail on X,Y, Z axis

Rack and Pinion

 Taiwan Rack and pinion transmission on X, Y axis

Ball Screw

Taiwan Ball Screw on Z axis

Spindle power

3 kw water-cooling spindle

Spindle rotating speed

0-24000rpm/min

Motor

Servo Motor

Work voltage

AC380V/50Hz

Command language

G code or HPGL

Operating system

DSP control system

Weight

2500kg

Application:
1).Stone Material: Artificial stone, Marble, Granite, Ceramic Tile,milestone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, grindstone,Jade etc.
2).Wood Material:Solid Wood,Particle board,MDF,Wood Panel,Glass, Furniture(Door lock holes and edges), wave board screen,Calligraphy tablet etc.
3).Acrylics material:Acrylics,Light guide plate and diffuser plate
4).Thermoplastic Elastomers:Rubber, Plastic, Resin and Foam Products
5).Engineering Plastics Material:PVC,ABS,PE,PF,PU
6).Compound material:FRP, Artificial Stone, Compact Grade Ceramic Chip and Laminates,Carbon Fiber Panel
7).Light Metal Materiall:Aluminum, Copper
