Stone Tiles and Slabs Vacuum Lifter for Handling in Storage

Foshan Shengheng Glass Machinery Co., Ltd.
  • Application：Pack an Unpack Stone Tiles and Slabs in Storage
  • Power：6-8 Bar Air
  • Loading Capacity：300kg , 500kg
  • System：Pneumatic System
  • Suction Pad：Round Shape, Silicone Material
  • Pad Number：4,8 PCS, 250mm Diameter

Base Info

  • Performance：Pneumatic Tilting or,and Rotation
  • Transport Package：Plywood Case
  • Trademark：SHENGHENG
  • Origin：China
  • HS Code：842890
  • Production Capacity：200 Sets,Year

Description

Basic Info.

Performance Pneumatic Tilting or/and Rotation Transport Package Plywood Case Trademark SHENGHENG Origin China HS Code 842890 Production Capacity 200 Sets/Year

Product Description

MAIN FEATURES
  1. The idea device for lifting and handling finished stone products into wooden crates or in storage.
  2. Vacuum generation quickly created by compressed air for fast sucking slabs/tiles.
  3. Executions of lifting, rotation or tilting movements are effected pneumatically.
  4. Manually operated control valves ensure the précised and adjustable movements.
  5. Use only one kind of energy source (compressed air) for operation makes its less maintenance and service.
  6. Simple and ergonomically structures result in own light weight and comfortably effortless handling.
  7. Used and attached to lightweight crane, jib slewing crane and overhead crane.
  8. Silicone suction pads make it tightly touch and suck slabs/tiles.
  9. Spring-mounted suction pads reduce the force caused by vacuum lifter touching slabs/tiles, preventing from any scratches and breaking.
  10. Integrated energy saving function to reduce the running times of vacuum generator and save air source (option).
  11. Energy saving system can also automatically restart to replenish vacuum, increasing safety of operation and reducing the possibility of risk.
  12. Integrated vacuum system, movement controls and safety system into the control box, making easy handling.
  13. Combined with slewing cranes and lightweight cranes (X-Y-craneways) for using. Moving the lifter along the arm tracks.

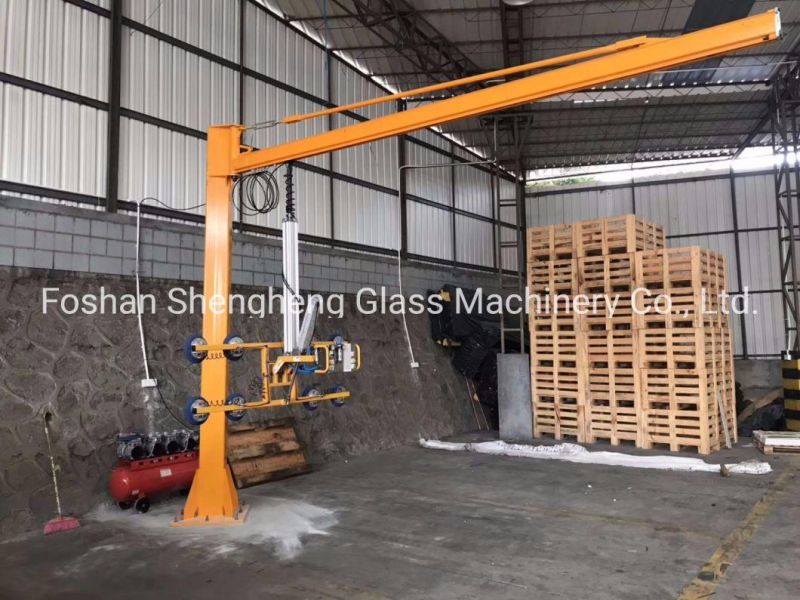

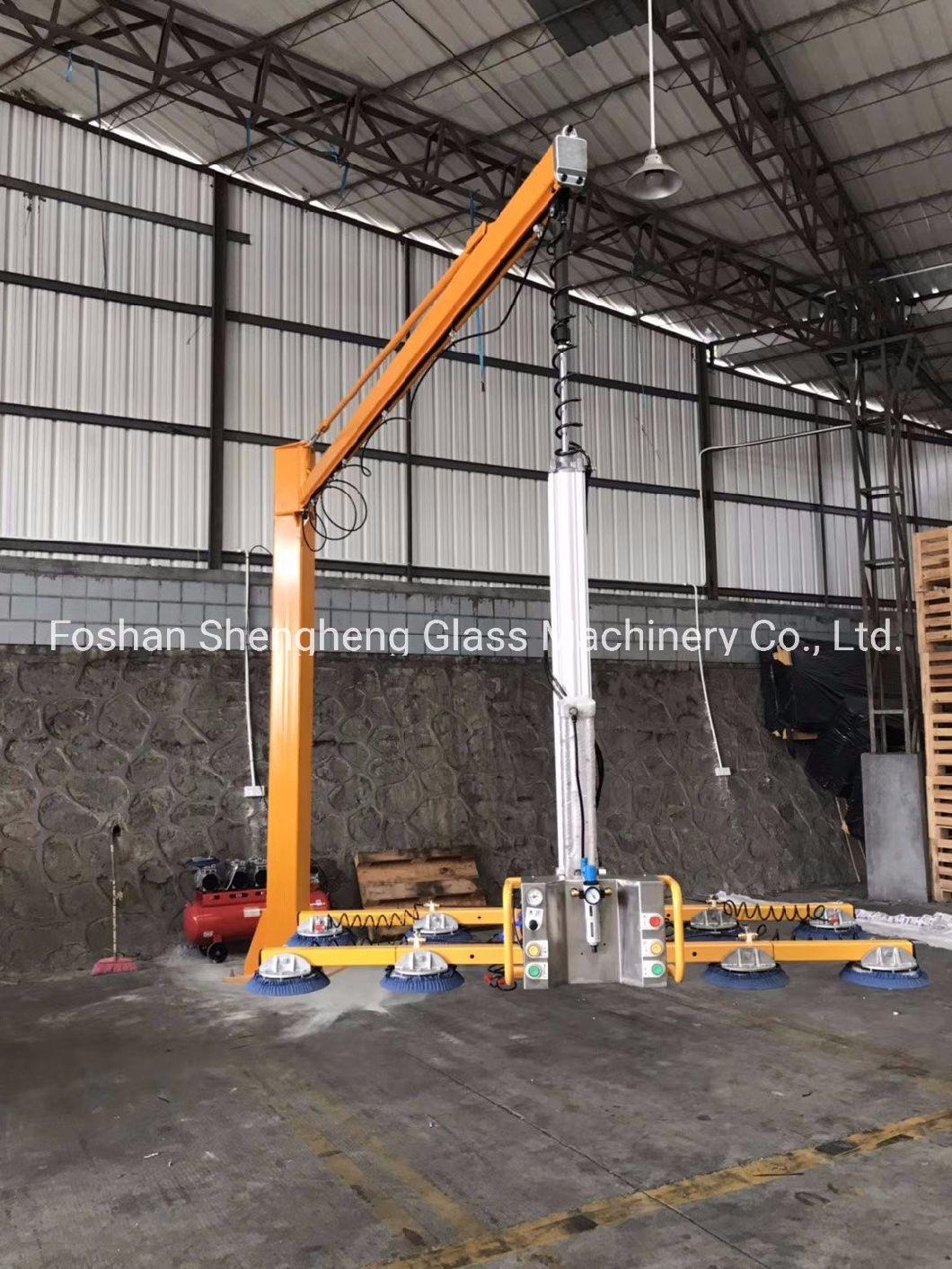

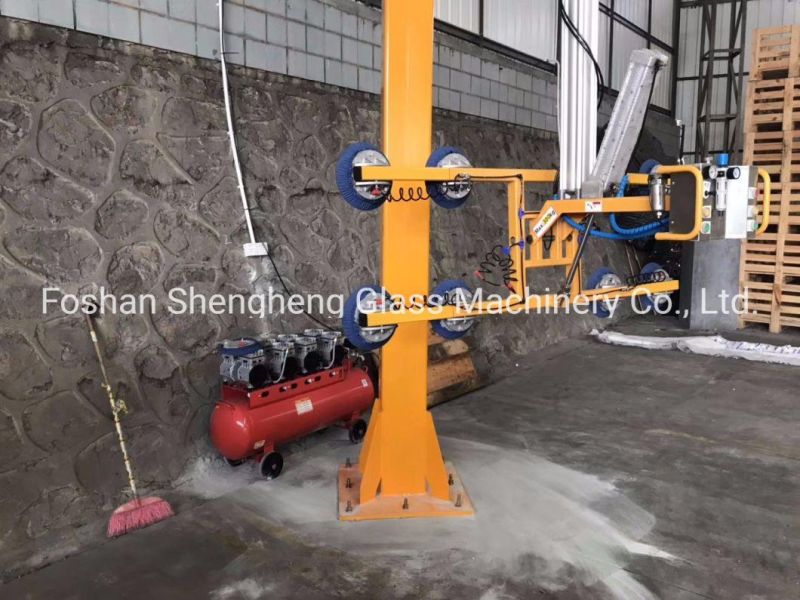

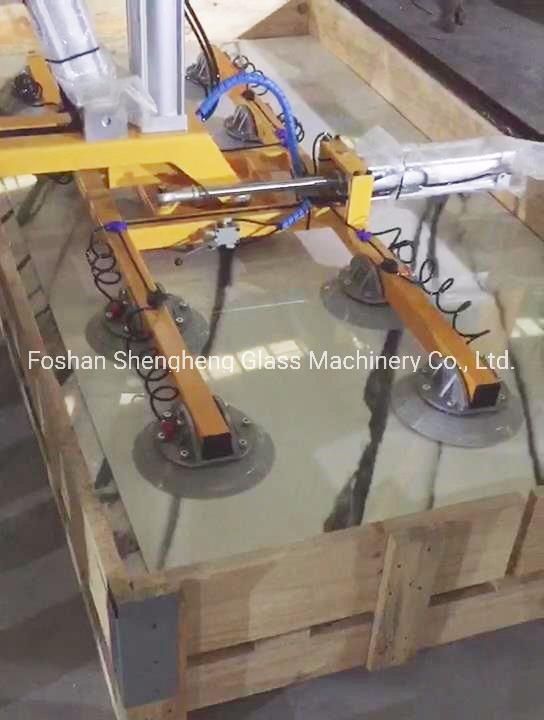

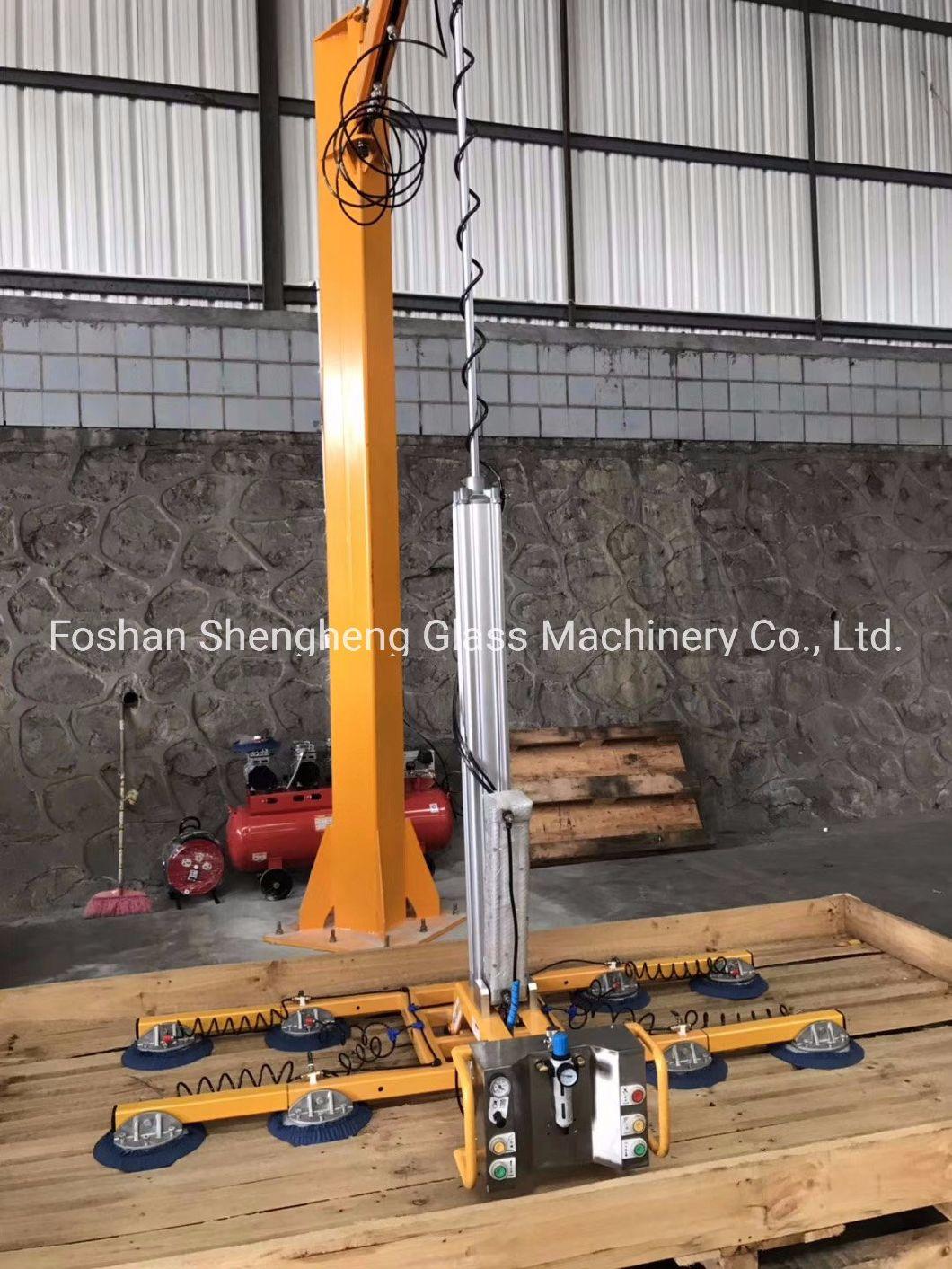

VACUUM LIFTERS FOR HANDLING STONE TILES AND SLABS IN STORAGE
Stone Tiles and Slabs Vacuum Lifter for Handling in Storage
Stone Tiles and Slabs Vacuum Lifter for Handling in Storage

Stone Tiles and Slabs Vacuum Lifter for Handling in Storage
Stone Tiles and Slabs Vacuum Lifter for Handling in Storage
Stone Tiles and Slabs Vacuum Lifter for Handling in Storage


ABOUT US
SHENGHENG Company is specializing in researching and manufacturing various kinds of lifting equipment, such as electric vacuum lifters, pneumatic vacuum lifters, robot manipulators and lightweight cranes.
The key components of equipment are imported from foreign famous suppliers, like SMC, FESTO, THOMAS, ARTAC and others, for stability, safety, durability and easy operation.
Except for providing standard products, we can design and producing lifting equipment as per customers' need and requirement. Our products have been widely used and applied in the processing, transport and installation for different kinds of panels, like glass, marble, granite, metal plates, sandwich plates and other panels.
We have been manufacturing and providing vacuum lifting equipment and manipulators for twelve years and export our products to many countries and regions for 10 years.


EXPORT PACKING
Stone Tiles and Slabs Vacuum Lifter for Handling in Storage
