• Model NO.：CGM250D
• Grinding Method：Dry and Wet Grind
• Certification：ISO, CE
• Condition：New
• Rated Voltage：220V
• Power：2.2kw,3HP
• Speed：1410rpm
• Weight：70kg
• Transport Package：Wooden Case, Pallet
• Specification：825mmx432mmx860mm
• Trademark：Corediam
• Origin：China
• HS Code：8479109000
• Production Capacity：5000 Pieces,Year

Basic Info.

Model NO. CGM250D Grinding Method Dry and Wet Grind Certification ISO, CE Condition New Rated Voltage 220V Power 2.2kw/3HP Speed 1410rpm Weight 70kg Transport Package Wooden Case, Pallet Specification 825mmx432mmx860mm Trademark Corediam Origin China HS Code 8479109000 Production Capacity 5000 Pieces/Year

Product Description

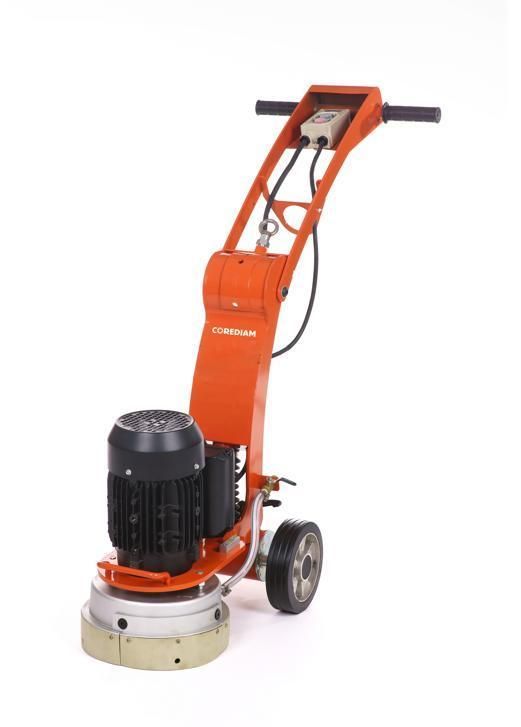

1. CGM250D Floor Grinder introduction

The Floor Grinder is a sturdy, reliable and easy to use machine.
The Floor Grinder is fitted 2.2kw single phase motor. This motor offers a direct drive to the grinding plate with the incorporation of a flexible coupling between the motor and the plate.

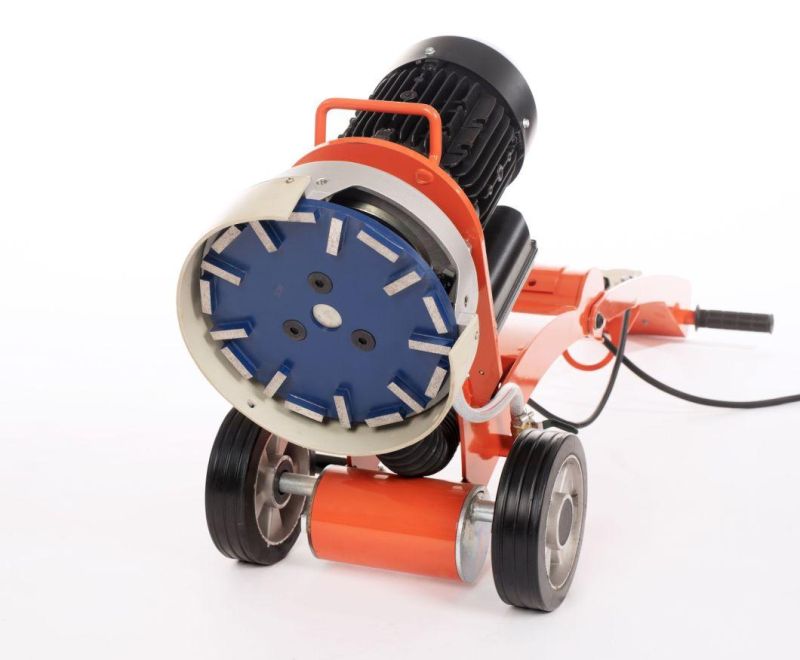

The shroud system is unique in design, automatically adjusting to suit segment height and floor angle. This shroud system, when used in conjunction with an appropriate industrial vacuum unit, eliminate dust loss during grinding. The shroud has 2 removable sections to enable the operator to grind close up to the wall etc.
Please note that dust loss is possible when this section is removed.
The Floor Grinder comes complete with a water connection for wet grinding should this be required. This incorporates a ball valve allowing the operator to regulate the water supply to obtain the best grinding results.
The Floor Grinder has a foldable handle which enables it to be easily transported in the trunk of most small vehicles. The rear wheels can also be extended outward should the operator want more stability from the grinder. This requires the use of a 10mm wrench. The operator can also raise or lower the height of the handle to maximize their comfort when using the grinder.
And the new designed lifter system makes operator handy to use.

Note: Read the entire operating manual carefully before attempting to use CGM250 Floor Grinder.
         Special attention should be paid to the section entitled 'Safety Precautions'.

2.Specification


Model Spec.	CGM250D
Rated Voltage	230V
Power	2.2KW/3HP
Speed	1410rpm
Plate Type	Standard 250mm Grinding Disc or Grinding Plate
Plate Bolt Types	M12x25 Countersunk socket head
Packing Size	750mmx500mmx800mm
Weight	70kg
Quantity	145pcs./40 container                 70pcs./20container

3.Application

Rough surface grinding different kinds of concrete and masonry materials with superior efficiency.

4.Delivery time

2 week for sample order, and  2-3 weeks for batch orders.

6.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
