• Model NO.：QDM-900,1200,1800
• Application：Granite, Marble
• Type for Grinding Machine：Special Grinding Machine
• Grinding Machine Type：Vibration Polishing Machine
• Grinding Method：Wet Grind
• Certification：ISO, CE
• Condition：New
• Output：3-3.5sqm Per Hour for Medium Hard Granite.
• Control System：PLC(Imported Brand)
• Feature：Grinding Efficiency
• Water Consumption：4m3,H
• Overall Dimensions：6500X3100X2000mm
• Weight：3000kg
• r.p.m of Polishing Head：560r,Min
• Transport Package：Fully Wrapped with Waterproof Membrane
• Trademark：WANLONG
• Origin：Qanzhou, China
• HS Code：8464209000
• Production Capacity：30sets , Month

Basic Info.

Model NO. QDM-900/1200/1800 Application Granite, Marble Type for Grinding Machine Special Grinding Machine Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification ISO, CE Condition New Output 3-3.5sqm Per Hour for Medium Hard Granite. Control System PLC(Imported Brand) Feature Grinding Efficiency Water Consumption 4m3/H Overall Dimensions 6500X3100X2000mm Weight 3000kg r.p.m of Polishing Head 560r/Min Transport Package Fully Wrapped with Waterproof Membrane Trademark WANLONG Origin Qanzhou, China HS Code 8464209000 Production Capacity 30sets / Month

Product Description

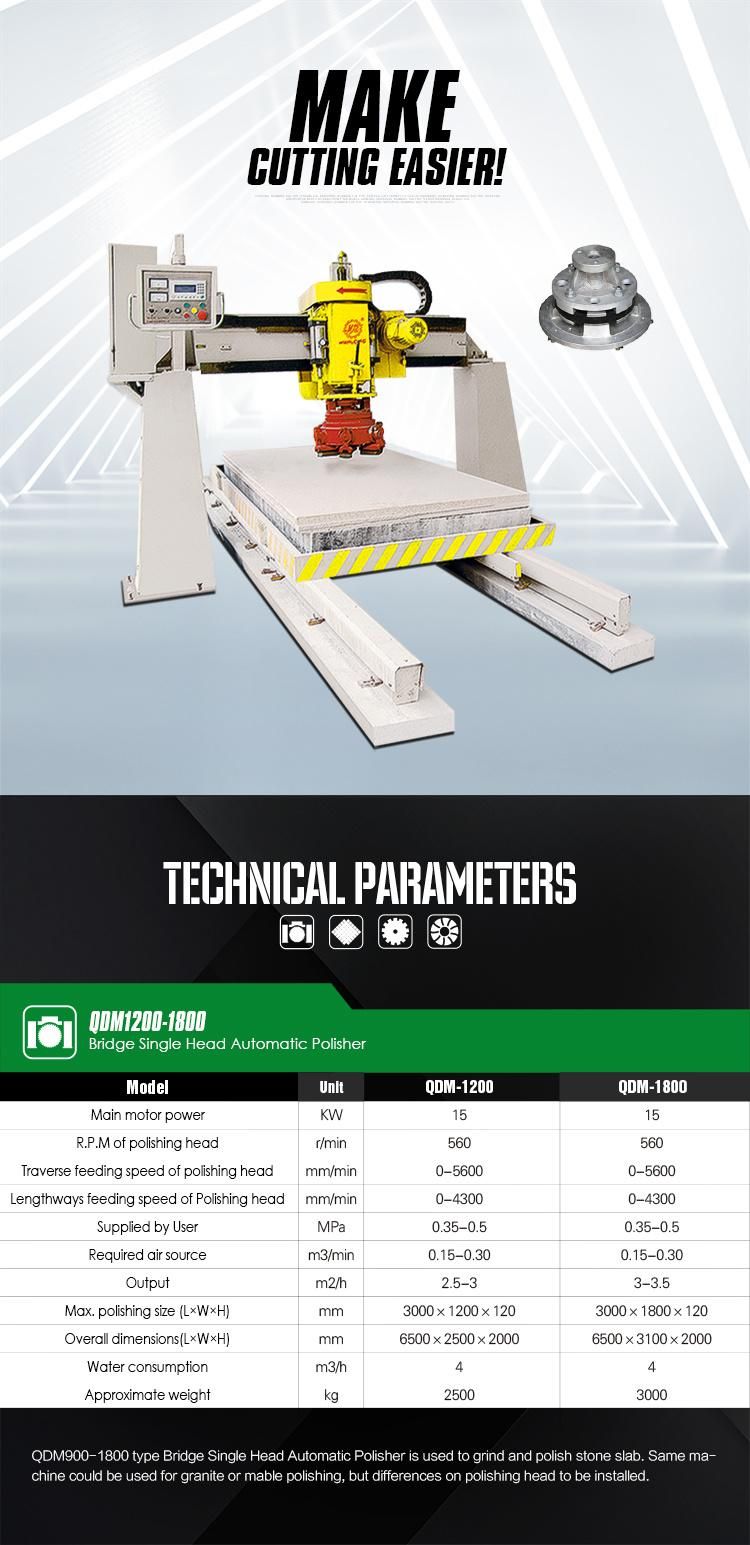

WANLONG QDM-900/1200/1800 Bridge Single Head Automatic Polishing Machine:



This machine is used for polishing large slabs like tombstones. Same machine could be used for granite or mable polishing, but differences on polishing head to be installed.

Feature:

1. It should equipmed with the Air compressore for adjust the pressure on polishing diffierent thickness of stone.

2. Micro compture of Panasonic centrally control the machine for automatic polishing.

3. Automatic & Manual elevating devices for customer's choice.



Model	Unit	QDM-900	QDM-1200	QDM-1800
R.P.M of polishing head	r/min	560	560	560
Traverse feeding speed of polishing head	mm/min	0-5600	0-5600	0-5600
Lengthways feeding speed of Polishing head	mm/min	0-4300	0-4300	0-4300
Supplied by User	MPa	0.35-0.5	0.35-0.5	0.35-0.5
Required air source	m³/min	0.15-0.30	0.15-0.30	0.15-0.30
Output	m²/h	2-2.5	2.5-3	3-3.5
Max. polishing size (L x W x H)	mm	3000*900*120	3000*1200*120	3000*1800*120
Overall dimensions (L x W x H)	mm	6500*2200*2000	6500*2500*2000	6500*3100*2000
Main motor power	KW	15	15	15
Water consumption	m³/h	4	4	4
Approximate weight	kg	2000	2500	3000

 Configurations:

1. SIEMENS main motor with stronger seats.

2. PANASONIC PLC and inverter.

3. Strong cast iron HT200.

4. Touch sensitive Panel Easy for worker to operate.

5.  3-3.5sqm per hour for medium hard granite.

6. video on the youtube: https://youtu.be/gD_YyH6WQ30.

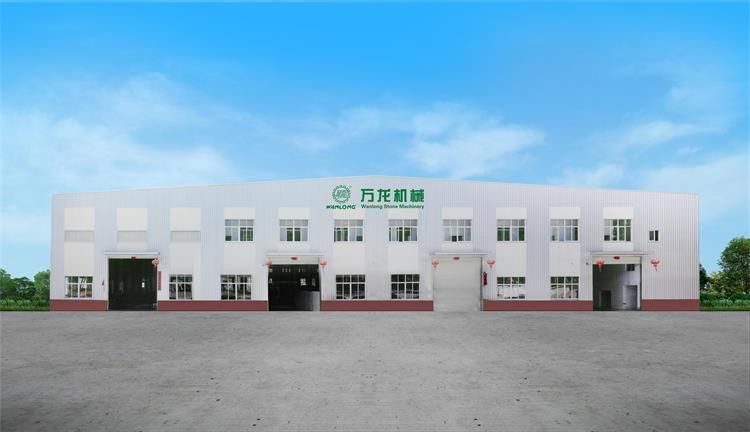

Company Information

Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).

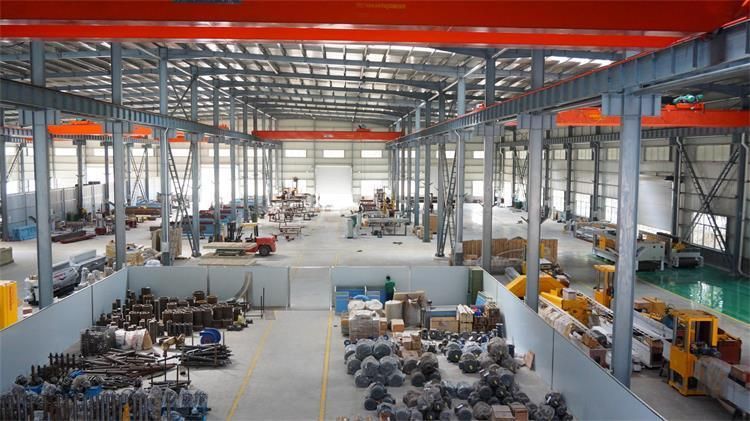

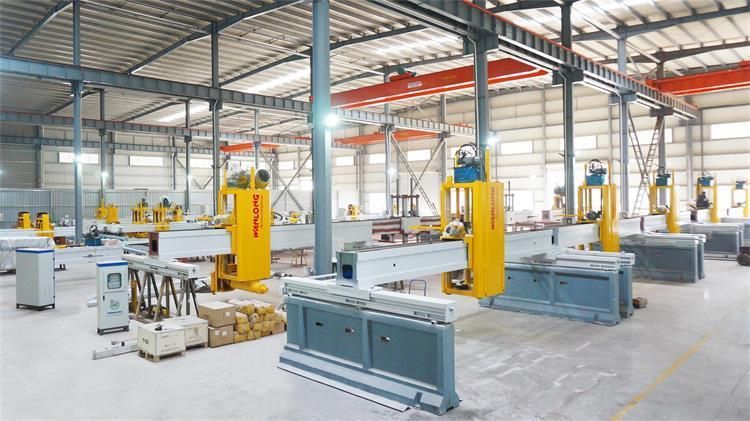

Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.

FAQ

1. We are considering to buy Chinese products, how can I know the quality whether it is suitable for our factory or market?

Now more and more people in the world like to use Chinese products though the quality is not the best while the price is very cheap. We are most professional in stone cutting this field for many years. If not available we think a small amount trial order for testing is necessary, otherwise you will never know the performance of Chinese products.

2. What is the minimum quantity we should buy?

For sample purpose we don't mind how much you buy, we will send the samples by courier(DHL, TNT, UPS, EMS, etc).

3.As I know many companies supply free samples, do you offer free samples?

We don't offer free samples, according to our years' experience we think when people get the samples by paying they will cherish what they get. Although the quantity of sample is small however its cost is higher than normal production.

4. What is your mode of payment?

For Air Cargo the payment should be T/T of total amount before shipment, for Sea Cargo other terms to be negotiated.

5. If we make the payment, how long you will make the shipment?

It depends on the quantity of order, as usual we make the shipment within 7-10 days on receipt of payment. For special order(Such as big order or not standard specification order) it may cost more days. We always let our customers know how many days he should wait before or after he place an order.
