Stone Processing Machinery

Home > Product > Stone Cutting Machine

Thinstone Saw Cutting Machine with Conveyor for Veneer/Corner Stone

Xiamen Bestlink Factory Co., Ltd.
  • Usage：Ceramics, Granite, Marble
  • Application：Stone Industry

Base Info

  • Model NO.：VS-30
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：Low Speed
  • Control：Control Panel
  • Certification：CE
  • Blade Diameter：750mm-1200mm
  • Condition：New
  • Warranty：1 Year
  • Power：22 , 45 Kw
  • Blade Number：Single
  • Cutting Depth：280-450 mm
  • Color：Customized
  • Transport Package：Nude Packing
  • Specification：3100mm*1600mm*1730mm
  • Trademark：BESTLINK
  • Origin：China
  • HS Code：84791090
  • Production Capacity：100 Sets,Month

Description

Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min

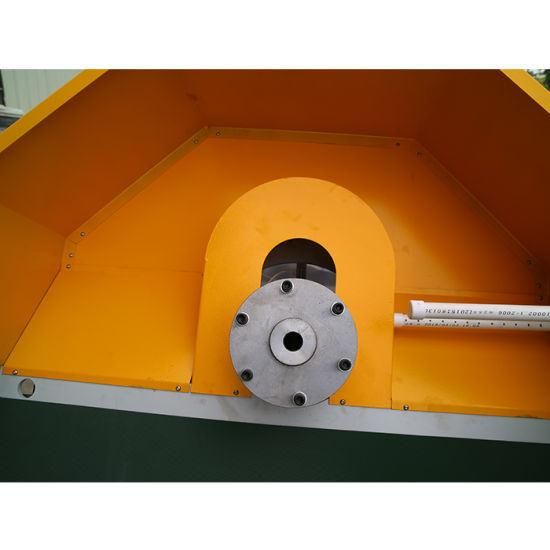

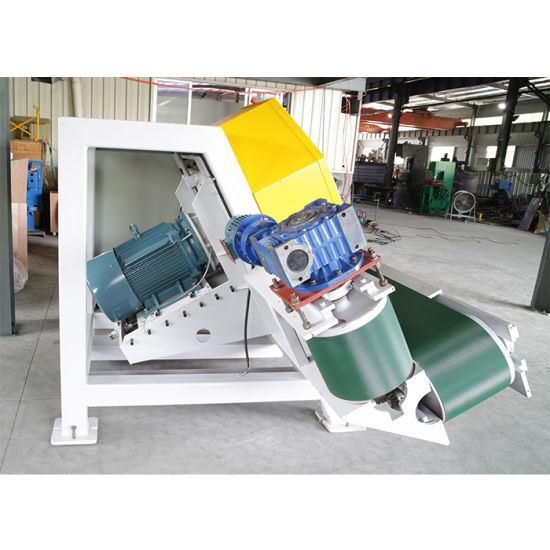

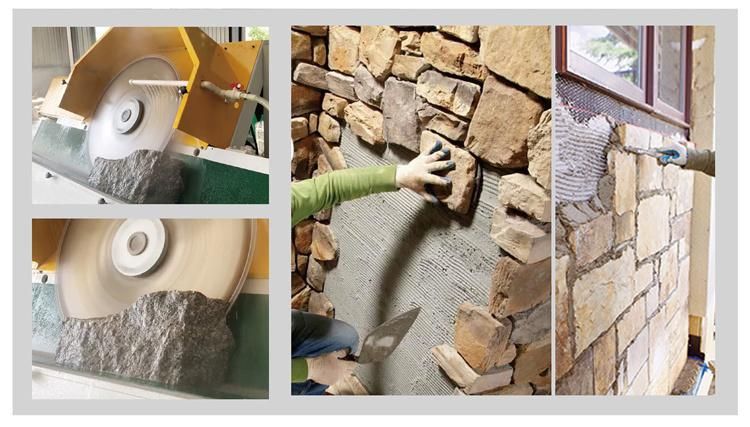

Pictures for the Thin Veneer Saw Machine Detailes:
Thinstone Saw Cutting Machine with Conveyor for Veneer/Corner Stone


Thinstone Saw Cutting Machine with Conveyor for Veneer/Corner Stone
Thinstone Saw Cutting Machine with Conveyor for Veneer/Corner Stone
Thinstone Saw Cutting Machine with Conveyor for Veneer/Corner Stone
