• Model NO.：jaw crusher
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Feeding Size：0-1500mm
• Applications Industry：Gravel Quarry, Mining, Coal Mining, Concrete Mixi
• Processed Materials：Rock Quarry
• Install of Jaw Crusher：Under Engineers′ Guide
• Transport Package：Transport Package
• Specification：300-1200T,H
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：300-1200t,H

Basic Info.

Model NO. jaw crusher Finished Surface Thread Process Certification CE, ISO Condition New Color Customized Feeding Size 0-1500mm Applications Industry Gravel Quarry, Mining, Coal Mining, Concrete Mixi Processed Materials Rock Quarry Install of Jaw Crusher Under Engineers′ Guide Transport Package Transport Package Specification 300-1200T/H Trademark CHAENG Origin Henan Production Capacity 300-1200t/H

Product Description

Product Description

Jaw crusher is used in primary crushing for stones and bulk materials .It processes various kinds of ore with compression strength not more than 320mp. It has been widely applied in area of is widely used in mining, quarry, metallurgy, building, highway, railway, construction wastes processing, water conservancy and cement production, etc.
It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.

CHAENG provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railwy, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.

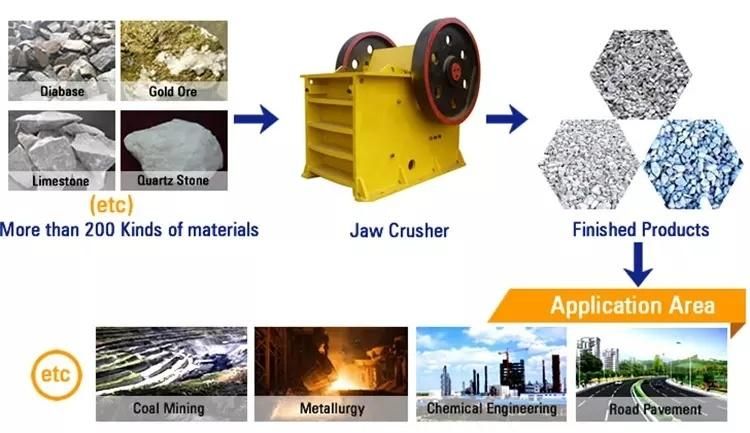

Jaw crusher Application

It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.

CHAENG provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railwy, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.

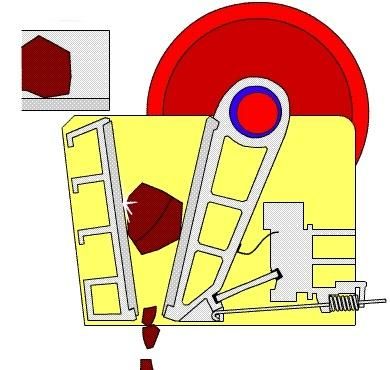

Working process of jaw crusher

 The working part of jaw crusher consists of two jaw plates, one is fixed jaw plate (fixed jaw), which is fixed vertically (or slightly outwardly at the upper end) on the front wall of the body, the other is movable jaw plate (movable jaw), which is inclined in position and forms upper and lower crushing chambers (working chambers) with fixed jaw plate. The movable jaw plate moves periodically to and fro against the fixed jaw plate, sometimes separated and sometimes approached. When separated, the material enters the crushing chamber, and the finished product is discharged from the lower part; when approached, the material between the two jaw plates is crushed by extrusion, bending and splitting.
Jaw crusher can be divided into simple swing jaw crusher (simple swing jaw crusher) according to the swing mode of movable jaw plate. Complex swing jaw crusher (compound swing jaw crusher) and comprehensive swing jaw crusher are three kinds.

 Specification of jaw crusher

Model	Inlet port width	Inlet port length	Feed size	Minimum outlet port	Maximum outlet port	Installed power	Minimum production capacity	Maximum production capacity	Outline L	Outline W	Outline H
GPEV500x750	500mm	750mm	425mm	50mm	100mm	55Kw	40T/h	100T/h	2053mm	1921mm	2000mm
GPEV580x930	580mm	930mm	460mm	60mm	175mm	90Kw	120T/h	455T/h	2880mm	1755mm	1460mm
GPEV700x1060	700mm	1060mm	560mm	70mm	200mm	110Kw	155T/h	580T/h	3320mm	2030mm	2005mm
GPEV750x1060	750mm	1060mm	630mm	80mm	140mm	90Kw	110T/h	320T/h	2655mm	2302mm	3110mm
GPEV760x1100	760mm	1100mm	640mm	75mm	200mm	110Kw	150T/h	350T/h	2600mm	2500mm	2200mm

Our service

Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers' request and budget, our experts make efficient, reliable solutions. Following customers' order we produce strictly, what's more, before placing the order every customer has the chance to visit XinXiang Great Wall (Chaeng) working machines or complete plant in the site.

To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.

After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers' plants. Necessary training about machine daily maintenance to local workers is provided also.

After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of XinXiang Great Wall (Chaeng), they are now strategically located home and abroad, working for our customers.
