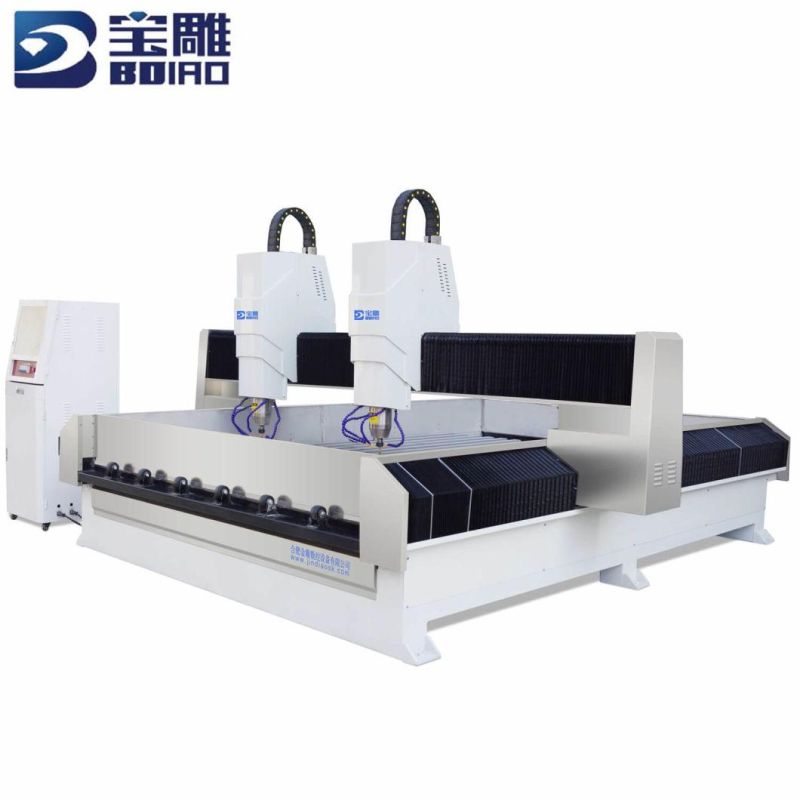

Stone Carving CNC Router Machine/Marble CNC Engraving Machine
Hefei Aquila CNC Equipment Co., Ltd.- Function：Hollow out, Cutting, Line Engraving
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
- Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
Base Info
- Model NO.：BD1325A
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Water Sink/Tank：Powder-Painting
- X/Y/Z Axis Working Area：1300*2500*300mm
- Spindle Motor Power：5.5kw Water Cooled
- Control System：Nc Studio,DSP
- Transport Package：Wooden Case Package
- Specification：1300*2500mm
- Trademark：Boiro
- Origin：China
- HS Code：84659900
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. BD1325A Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Water Sink/Tank Powder-Painting X/Y/Z Axis Working Area 1300*2500*300mm Spindle Motor Power 5.5kw Water Cooled Control System Nc Studio/DSP Transport Package Wooden Case Package Specification 1300*2500mm Trademark Boiro Origin China HS Code 84659900 Production Capacity 300 Sets/MonthProduct Description
Stone carving cnc router machine/Marble CNC Engraving MachineKeywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Parameters
| Model | Stone CNC Router |
| Machine Structure | Thick steel welded, w/ aging treatment |
| Working Table | Aluminum T-slot table protected with PVC |
| Water Sink/Tank | Powder-painting |
| X/Y/Z Axis Working Area | 1300*2500*300mm |
| Spindle Motor Power | 5.5KW water cooled |
| Spindle Rotational Speed | Adjustable 0-24000 rpm/min |
| Control System | NC Studio/DSP |
| Guide Rail | Taiwan imported linear guide rail |
| Drive System | X/Y axis helical rack & pinion, Z axis Taiwan ball screw(contracting brake for Z axis) |
| Drive Motor | Stepper motor / Yaskawa Servo motor, 750W |
| Inverter | Fuling/ Zoncn |
| Max. Traveling Speed | 25 m/min |
| Max.Working Speed | 15 m/min |
| Resolution | 0.01 mm |
| Tool Shank | Φ 3.175mm,Φ 4mm, Φ6mm, Φ12mm |
| Dictate Format | G-Code / HPGL |
| Cooling System | Circulating water-refluxing design |
| Working Voltage | AC380V 3PH 50HZ |
Application
Suitable for artificial stone, quartz stone, marble countertops and wash basins, tea tray carvings, European style edging, and other shaped stone materials, ceramic, glass and microcrystalline stone drilling, sanding, chamfering, engraving and so on.
