Multi Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block Machine

Xiamen Aga Import and Export Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Type：CNC Cutting Machine
  • Usage：Granite, Marble
  • Application：Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：DQ2500
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO, CE
  • Max. Cut Length：3300mm
  • Max. Cut Depth：1100mm
  • Max. Blade Size：2500mm
  • Max. Cut Width：2200mm
  • Spindle Motor：45-55kw
  • Lifting Stroke：1350mm
  • Transport Package：Plastic Packing
  • Specification：Dimention: 7.8x4.3x5.5m
  • Trademark：AGA
  • Origin：Xiamen, Fujian, China
  • HS Code：84641010
  • Production Capacity：100sets,Month

Description

Multi Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block MachineMulti Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block Machine

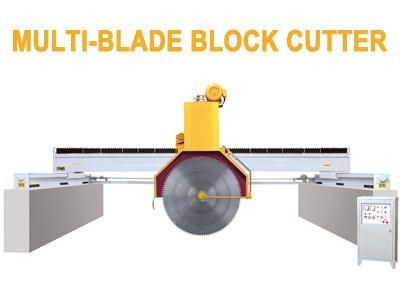

DQ2500, High Efficiency Multi-blade Stone Cutting Machine
Four cylindrical gantry mutli-blade combination cutting machine adopts diamond tools and high-speed cutting technology, which is suitable for high-efficiently cutting a variety o thickness of stone sheet (thickness such as 17mm,20mm,30mm etc).

1, Features:

--Siemens smart PLC control system makes high automation performance and easy operation.
--Wafer cutting, improve resource utilization.
--Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
--Two-slider frame structure driven synchronized by screw with high stiffness and stability.
--Linear guide rail, high precision, long life, high-efficient cutting.

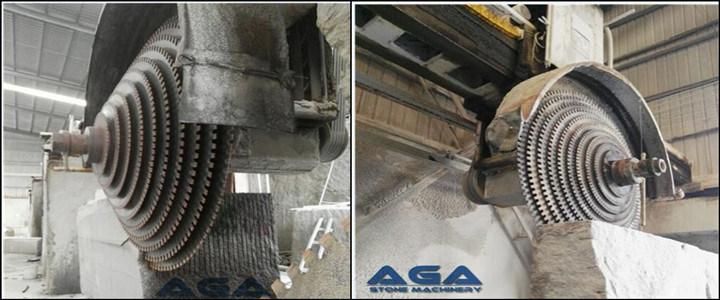

Multi Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block Machine

Multi Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block Machine

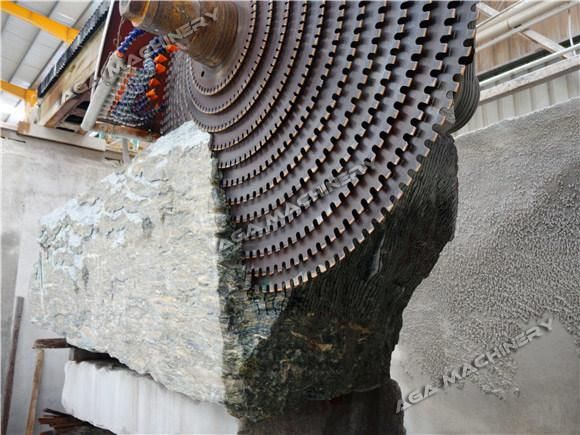

Multi Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block Machine
2, Main Structure:
1,Beam Assembly 2,Hydraulic Station 3,Apron Components 4,Water Cover Assembly 5,Stringer Assembly 6,Spindle Box Components 7,BLade 8,Foudation Components 9, Control Panel.

3,Work Restrictions and Power Requirements
Material: granite, marble (Stone Mohs Hardness:2-7.5)
Maximum Moving Speed for Blade in the X-axis:  13m/min,Cutting speed is related to stone material and blade material.
Power Requirements: The power supply must be consistent with the requirements of this machine, Voltage380V,Frequency 50HZ and ensure that the voltage error ranges within±5%.

4,Safety Devices
The machine is equipped with the limit switch, which can control the front and back movement of the tool holder, and the left and right feeding movements to achieve the purpose of safe use.

Sepcification

ModelUnitDQ2200DQ2500DQ2800Max. blade sizemmΦ2200Φ2500Φ2800Max. cut lengthmm2800 33003000Max. cut widthmm200020002000Max. cut depthmm950 11001250Spindle motorKw454545Total power Kw525252Size (L×W×H)mm7×4.3×5.37.8×4.3×5.57.3×4.3×5.8WeightKg110001150012000

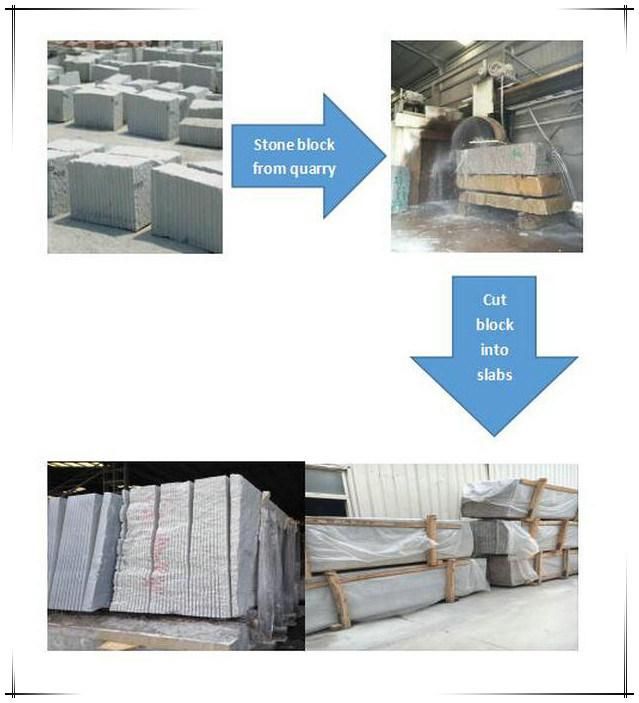

Stone slabs produce process
Multi Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block Machine

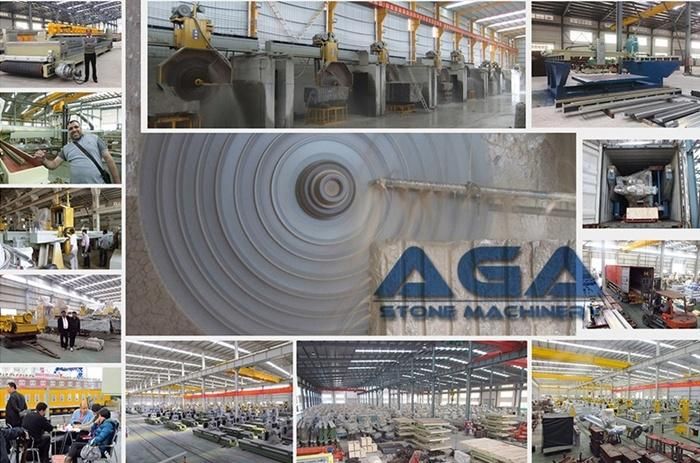

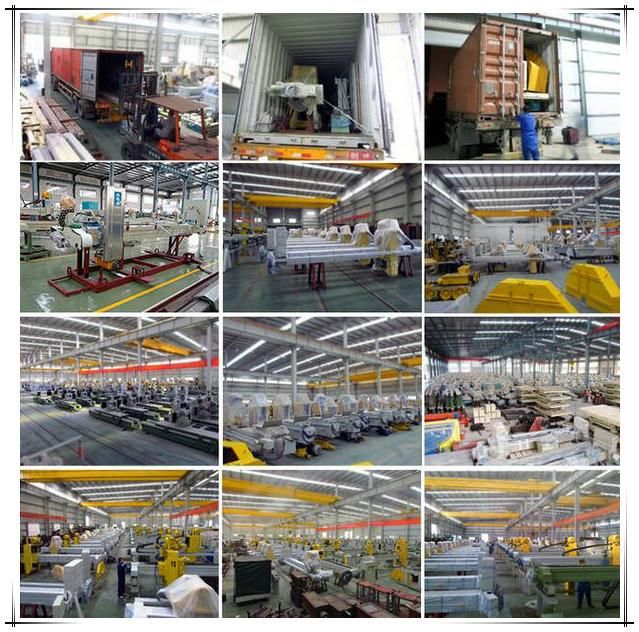

Factory show
Multi Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block Machine
Related machine
We are professional in making marble granite machine, such as Polishing Machine XMJ1050-16C, ZDMJ-16C,  Bridge Saw XZQQ625A, HQ400/600/700, HQ1200, Block Cutter DQ2200/2500/2800,DS1600,DL2200/2500/3000, CNC Wire Saw WS2000, Balustrade Cutting Machine DYF600, Column Cutting Maching SYF1800, Edge Polishing Machine MB3000, MB3000L, Splitting Machine P90/95, P240, Pressing Machine P72/ 80, P74, Stone Crusher PS22... ect, please visit our website for more machine pictures: agastonemachine.en.made-in-china.com .

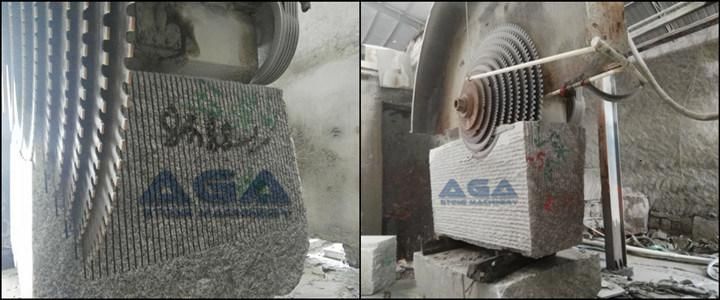

Multi Blade Cutter with Granite Bridge Block Cutter Machine & Gang Saw (DQ2500) for Marble Slice in Stone Cutting Machine or Block Machine
