Mighty Stone Veneer Saw Cutting Machine for Making L Shape Wall Cladding
Xiamen Bestlink Factory Co., Ltd.- Warranty：1 Year
- Type：Hydraulic Cutting Machine
Base Info
- Model NO.：30hp 60hp Mighty Stone Saw
- Usage：Ceramics, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：Low Speed
- Control：Control Panel

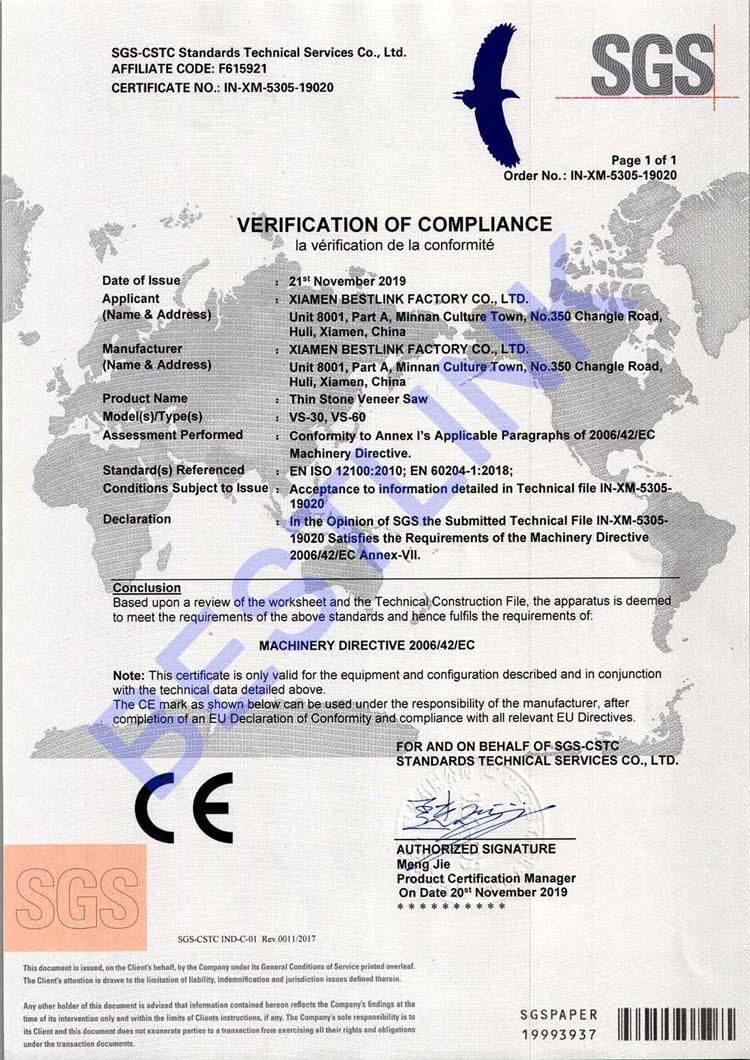

- Certification：CE
- Blade Diameter：750mm-1200mm
- Condition：New
- Power：22 , 45 Kw
- Blade Number：Single
- Cutting Depth：280-450 mm
- Color：Customized
- Loading：Full Container
- Transport Package：Nude Packing
- Specification：3100mm*1600mm*1730mm
- Trademark：BESTLINK
- Origin：China
- HS Code：84791090
- Production Capacity：100 Sets,Month
Description
Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min

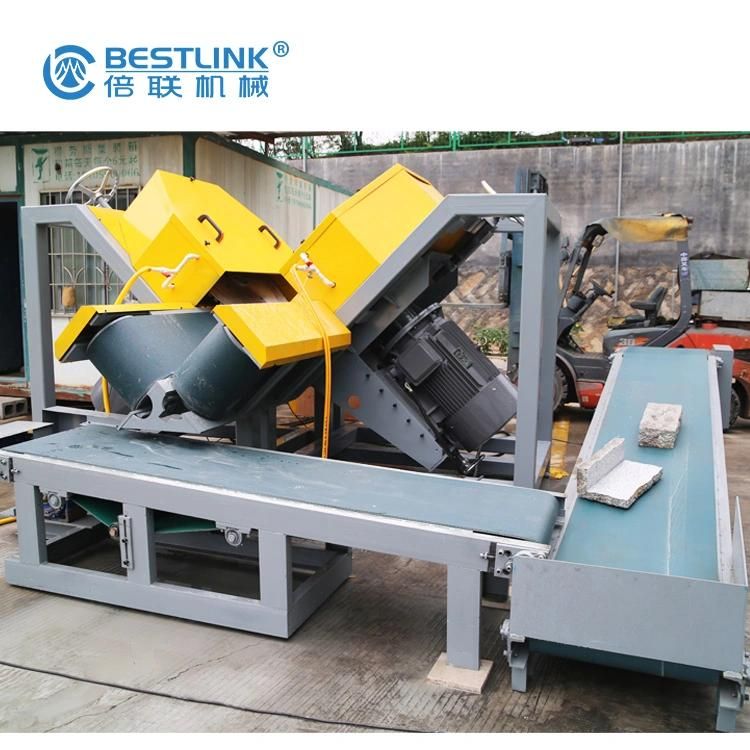

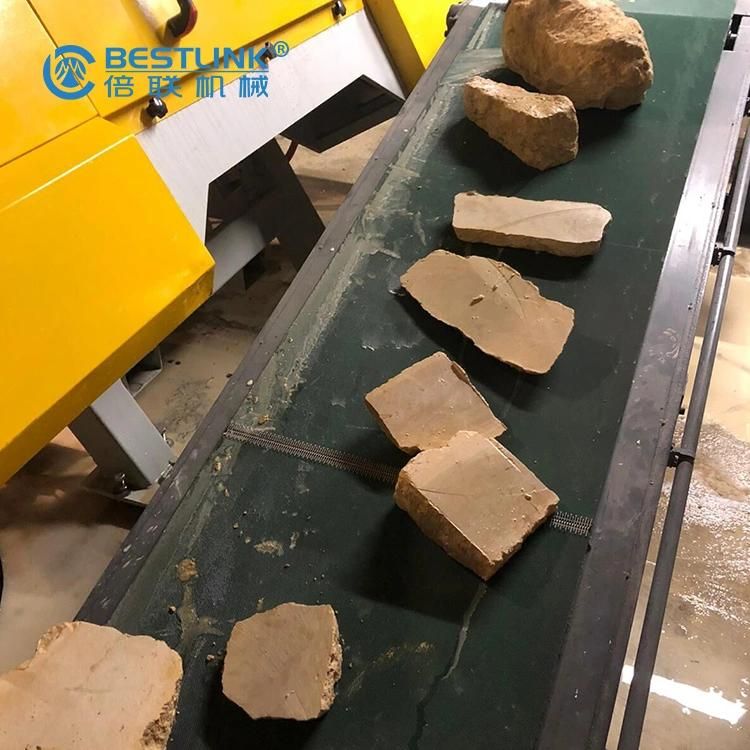

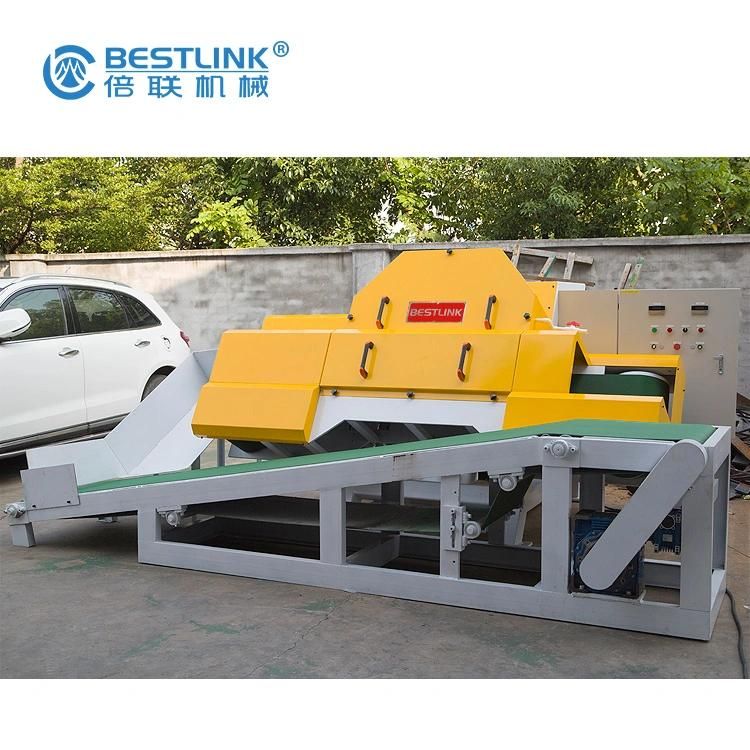

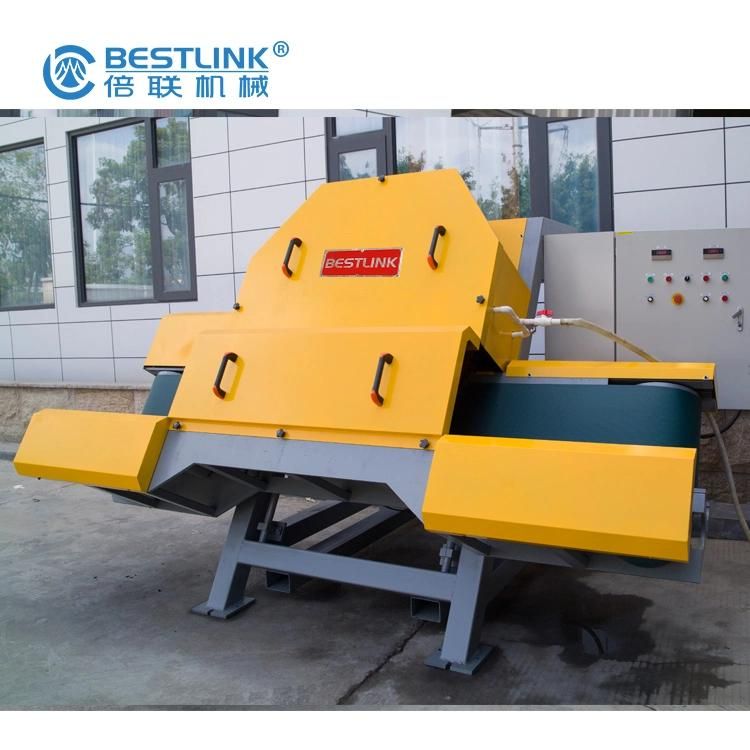

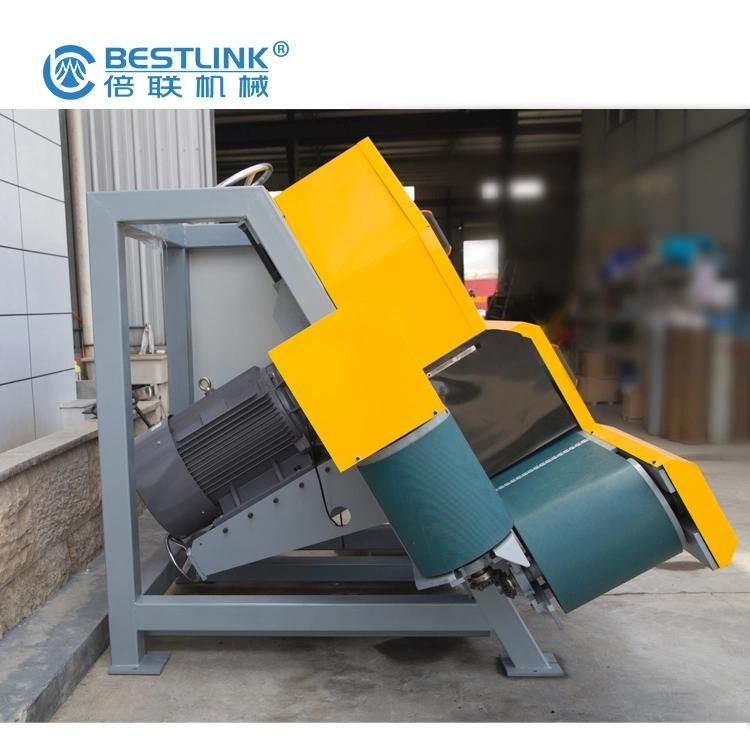

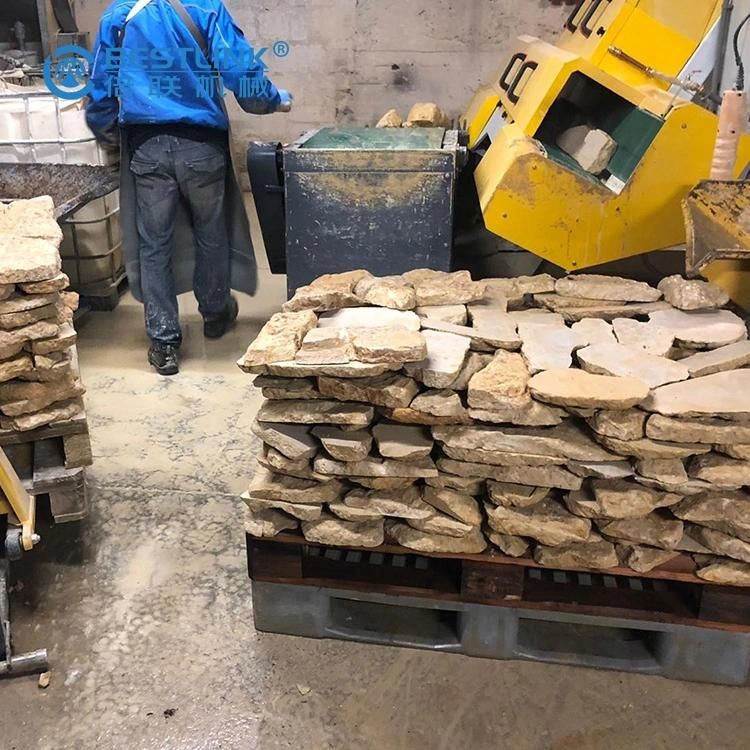

Pictures for the Thin Veneer Saw Machine Detailes:

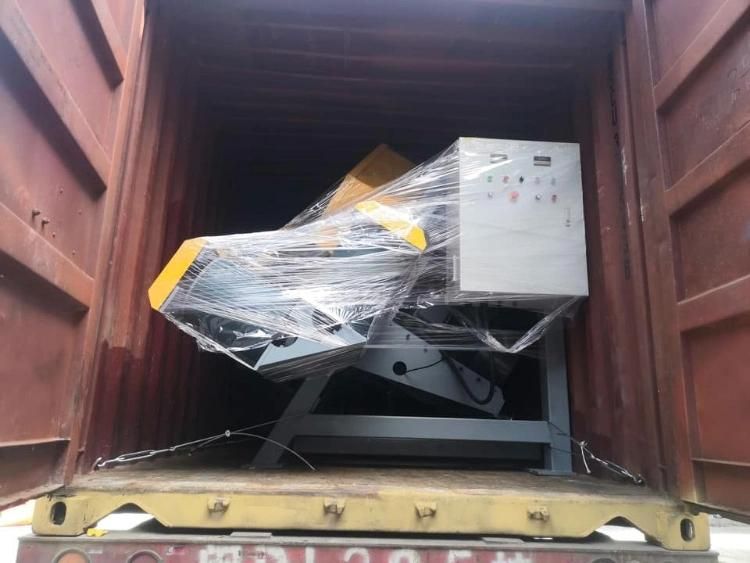

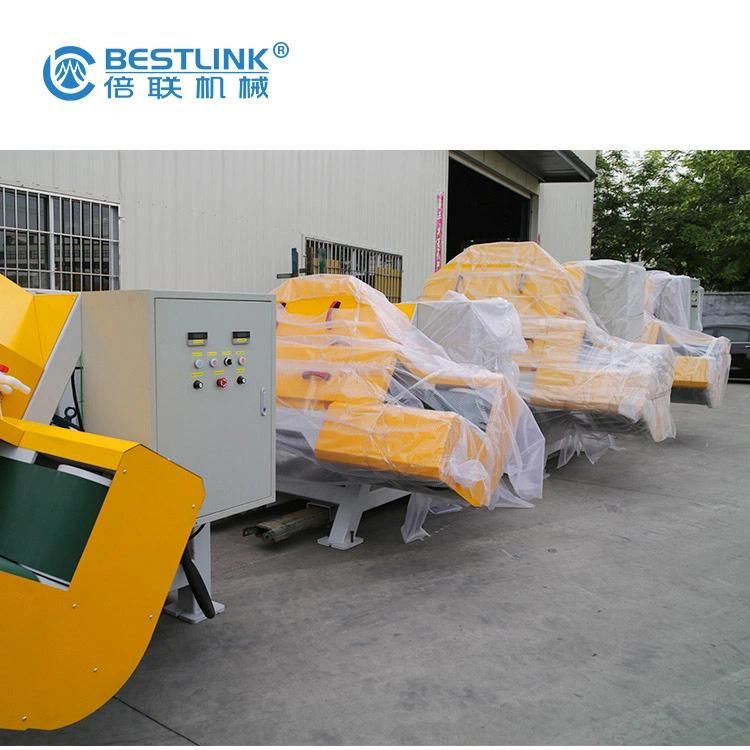

Veneer stone saw is loading and shipping to Norway
Pictures for the Thin Veneer Saw Machine Detailes:
Veneer stone saw is loading and shipping to Norway
