• Model NO.：XZQQ625
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Cut Length：3200mm
• Cut Width：2000mm
• Cut Thick：170mm
• Table Tilting：0-85 Degree Vertically
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cuts
• Transport Package：Plastic Packing
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Cut Length 3200mm Cut Width 2000mm Cut Thick 170mm Table Tilting 0-85 Degree Vertically Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cuts Transport Package Plastic Packing Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

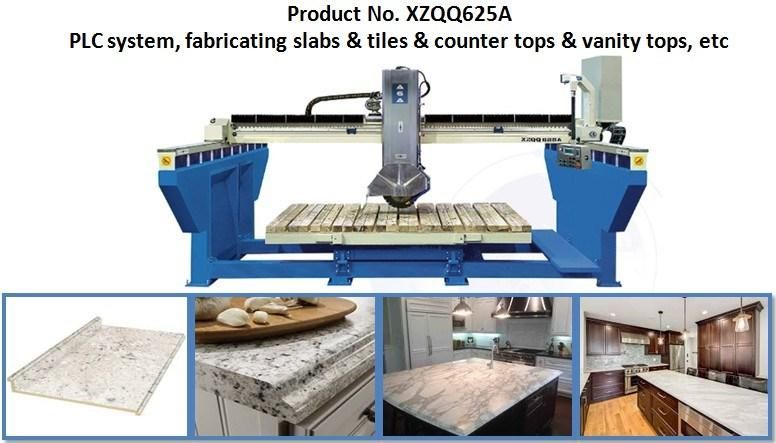

China Premium CNC Cutting Machine Stone Bridge Saw
Product No. XZQQ625
Premium automatic granite bridge saw cutting machine made with U.S standard full of options, including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc.
The balde can tilt 0-45 degree for miter cutting, preferable for fabricating kitchen countertops. This bridge saw is robust monoblock made with the best quality and full of options.



Granite bridge saw technical parameteras:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Granite Bridge Saw Granite Bridge saw Features:
1) Monoblock frame provides stable performance:
Main structures of the granite bridge saw are made of very strong cast iron for stable running and stainless steel for protection.
2) Machine head tilts 0-45 degree for miter cutting:
The bridge saw blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. It is able to tilt 0-45 degree automatic for miter cut, very excellent performance in cutting and fabricating slabs and countertops.
3) Working table tilts 0-85 degree and rotates 0-360 degree stopped any position:
Granite bridge saw table can be locked in any position 0-360 degree and it also tilts 0-85 degree hydraulic for easy load of stone materials.
4) PLC system for easy oeration, color touch screen provides live datas:
This bridge saw is made with PLC control, electric system is simple and easy to operate. Color touch screen provides live datas and all functions are operated on it that makes its users very friendly.
5)Laser cutting and wireless remote control:
The granite bridge saw is a laser cutting machine with a laser guide, which gives precision cuts every time and makes precise cut in +/-0.2mm.  Wireless remote provides easy control of machine.
6)Easy loading and installed:
Full saw can be loaded 20 GP container. Easy to load, transport and install thanks to its monoblock structural frame.

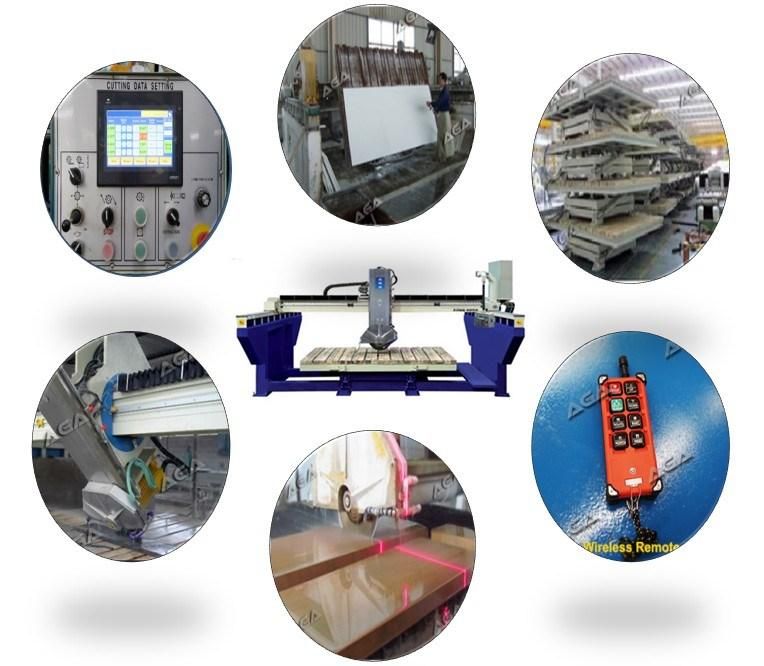

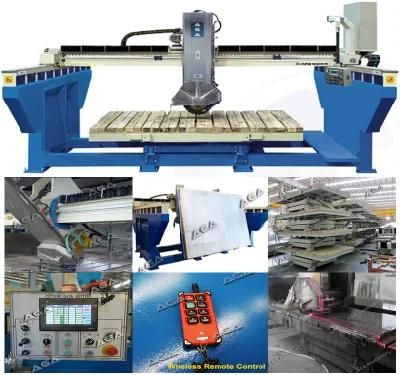

Granite bridge saw details in pictures:



FAQ:1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
Bridge saw, stone bridge saw, granite bridge saw, granite saw, stone saw, granite cutting machine, bridge cutting machine, granite sawing machine, marble bridge saw, marble cutting machine, stone sawing machine, high tech saw, edge cutting machine, edge sawing machine, etc.

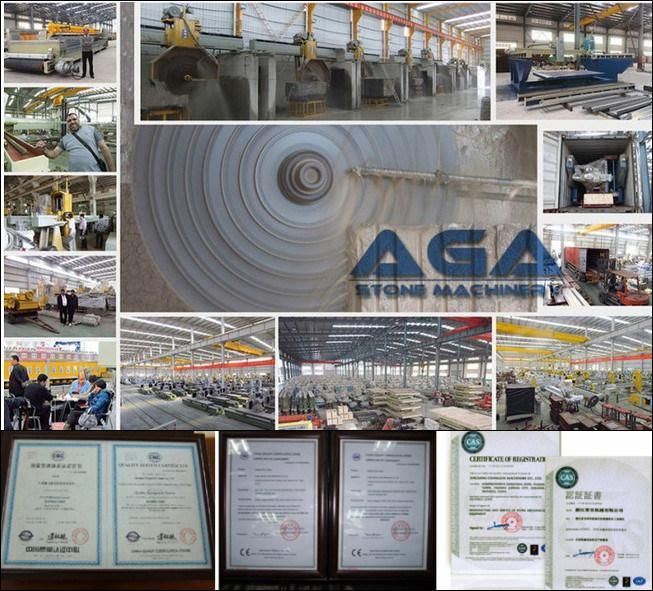

AGA Machinery:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test. The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc.


If you have any questions on this bridge saw please feel free to inform us, we're more than happy to serve you!
