• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Max. Blade Size：625mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cut
• Spindle Motor：15 Kw 20HP
• Dimention(L*W*H)：6*5*2.6m
• Transport Package：Plastic Packing
• Specification：Weight: 7200kg
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：100sets,Mon

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Max. Blade Size 625mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cut Spindle Motor 15 Kw 20HP Dimention(L*W*H) 6*5*2.6m Transport Package Plastic Packing Specification Weight: 7200kg Trademark AGA Origin China HS Code 84641010 Production Capacity 100sets/Mon

Product Description

China CNC Machine 5 Axis Machine Granite Bridge Saw
Product No.XZQQ625A

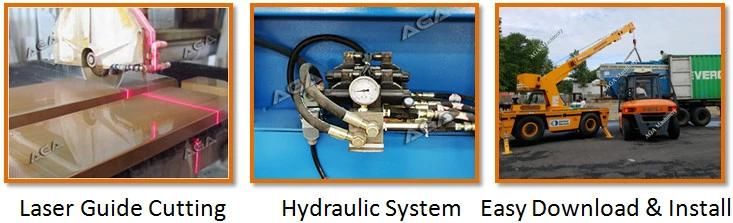

Bridge saw XZQQ625A is made with a power motor 20HP, full of options including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc.





Maximize your granite and marble production with the Monoblock Stone Bridge Saw.

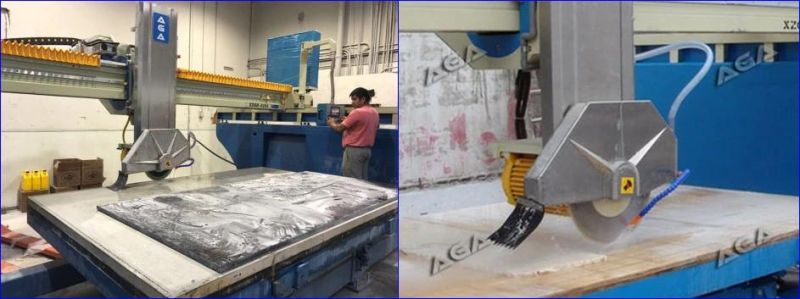

Premium bridge saw XZQQ625A is made with full functions, providing excellent performance in cutting granite marble stones. It's a robust saw for cutting and fabricating slabs, tiles, countertops, etc.

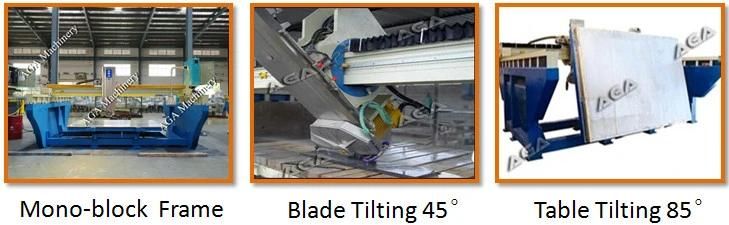

This bridge saw is monoblock made with strong cast iron and stainless steel, it provides stable running and long time service life.

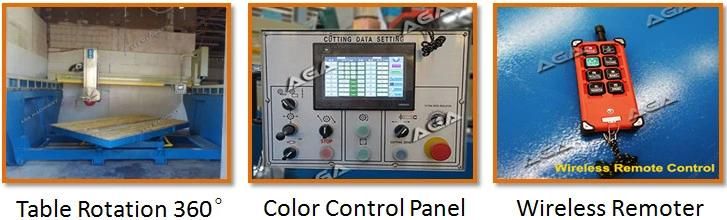

Bridge saw head tilts 45 degrees for miter cut, functional table turns 0-360 degrees to change the cutting position at any degree automatically and it also tilts 85 degrees for easy load of stone materials.
This stone bridge saw is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data.
Wireless remote provides easy control of the saw making its users very friendly.


Granite bridge saw technical Specification

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

FAQs:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

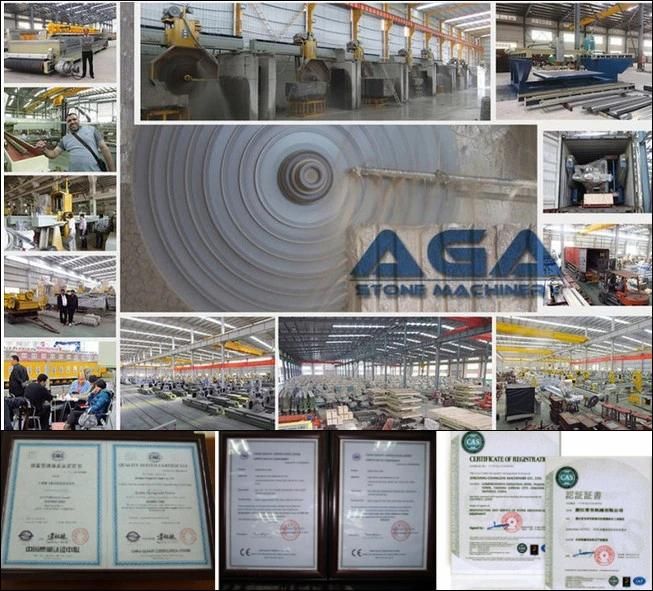

AGA Machinery:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc.We care about customers because by choosing us you are giving a chance make your machine more productive that also mackes your products unrivaled in the competitive market.

Key words:
Stone bridge saw, stone cutting mahcine, bridge saw, granite cutting machine, slab sizing, slab cutting, bridge saw, granite saw, marble saw, stone saw, slab saw, slab cutting, slab sizing, tile cutter, slab cutter, cnc machine, cnc cutting machine, marble grinding machine, cut to size machine, china cnc machine, etc.


If you have any questions please feel free to inform us, we're more than happy to serve you!
