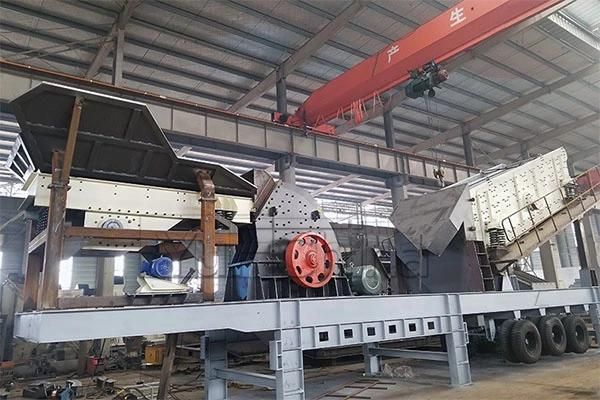

Mobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and Glass

ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD.
  • After-sales Service：After Sales and Accessories Support
  • Warranty：1 Year
  • Type：Hammer Crusher
  • Application：Chemical, Construction, Mineral Industry, Stone Industry
  • Drive：Electric
  • Crushing Style：Grinding & Impact

Base Info

  • Model NO.：1620
  • Compressive Strength (For Crushing)：Less Than 200MPa
  • Crushing Degree：Intermediate Crusher
  • Condition：New
  • Color：Multiple
  • Feeding Size：Less Than 1000mm
  • Discharging Size：0-80mm
  • Capacity：800-1000tph
  • Power：400kw*2
  • Transport Package：Container
  • Specification：1310*790mm
  • Trademark：YUFCHINA
  • Origin：China
  • HS Code：8474209000

Description

Mobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and GlassHeavy hammer crusher can crush stone and form once, without secondary crushing and shaping process, which can reduce the cost by about 40%, low energy consumption and low investment.

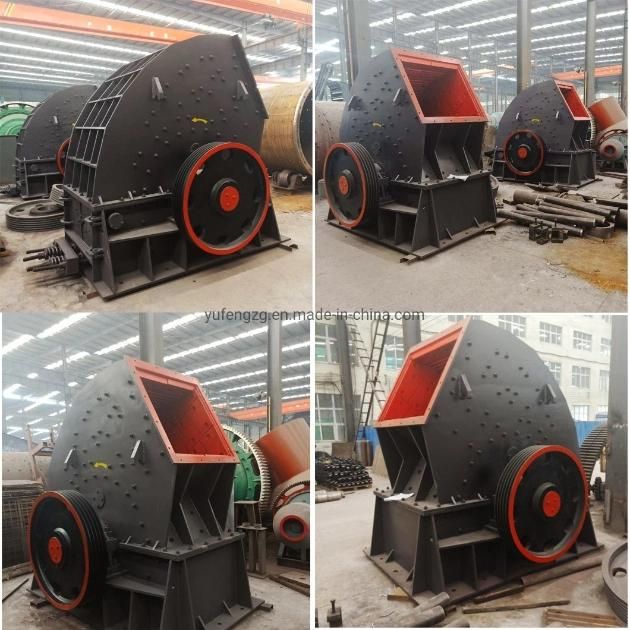

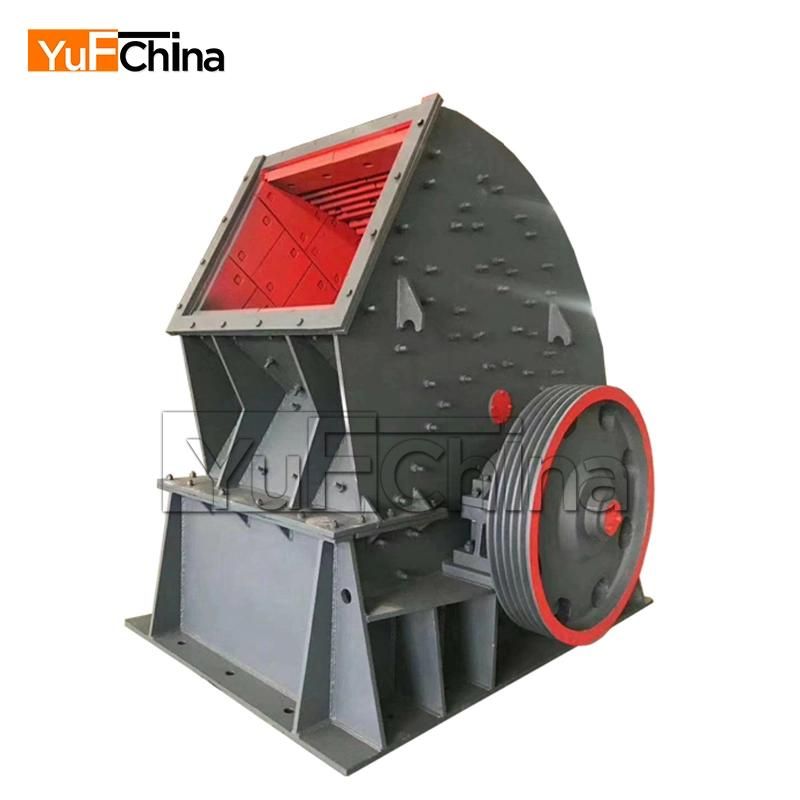

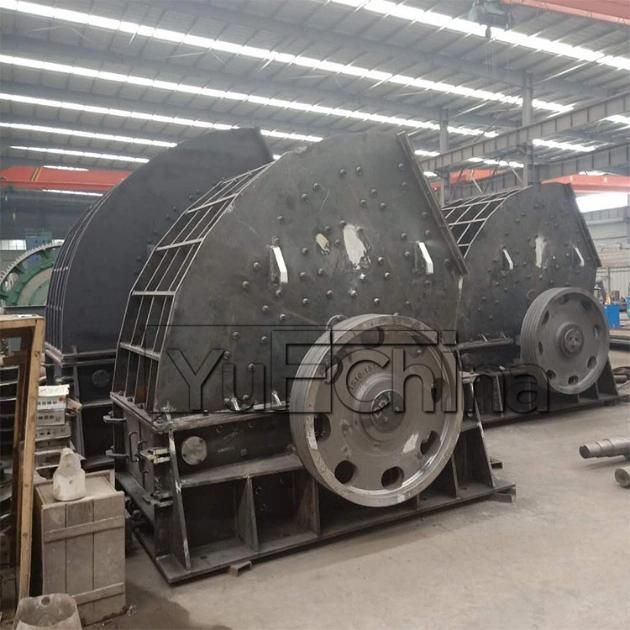

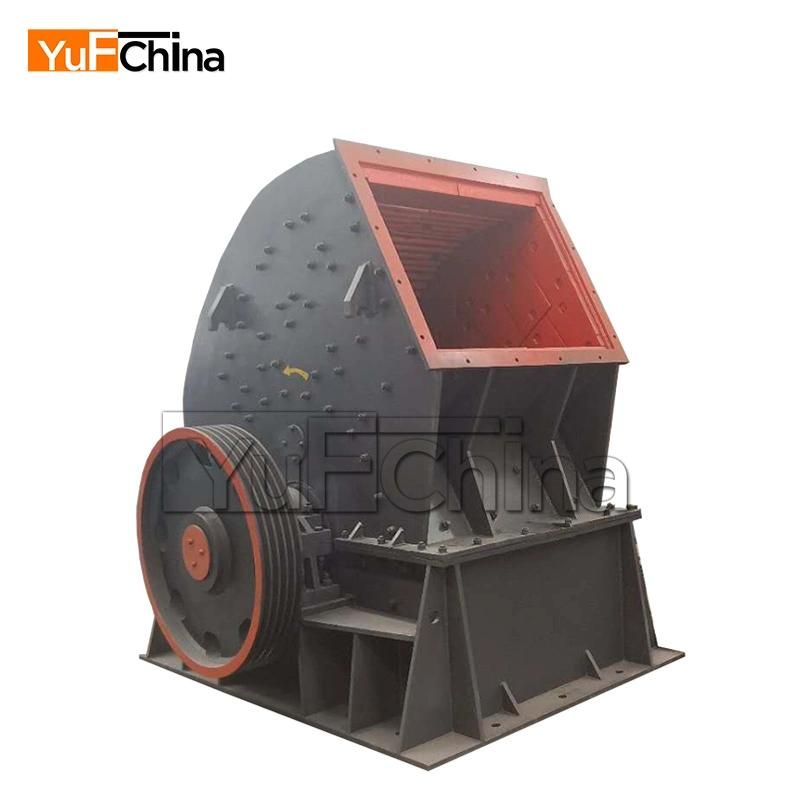

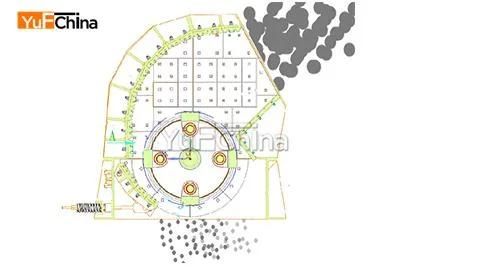

Heavy hammer crusher description

 Mobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and GlassMobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and Glass

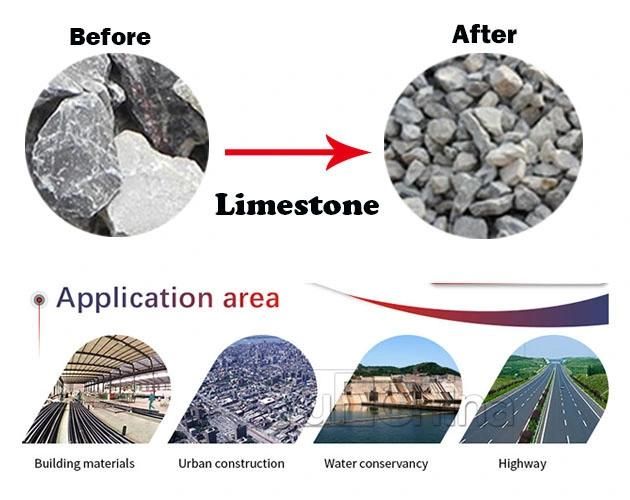

Heavy hammer crusher can crush stone and form once, without secondary crushing and shaping process, which can reduce the cost by about 40%, low energy consumption and low investment.It is widely used in many industries such as mining, smelting, building materials, roads, railways, water conservancy and chemical industries. It is especially suitable for crushing limestone and stone with a compressive strength of less than 200 MPa.



Heavy hammer crusher advantages
 Mobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and GlassMobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and Glass

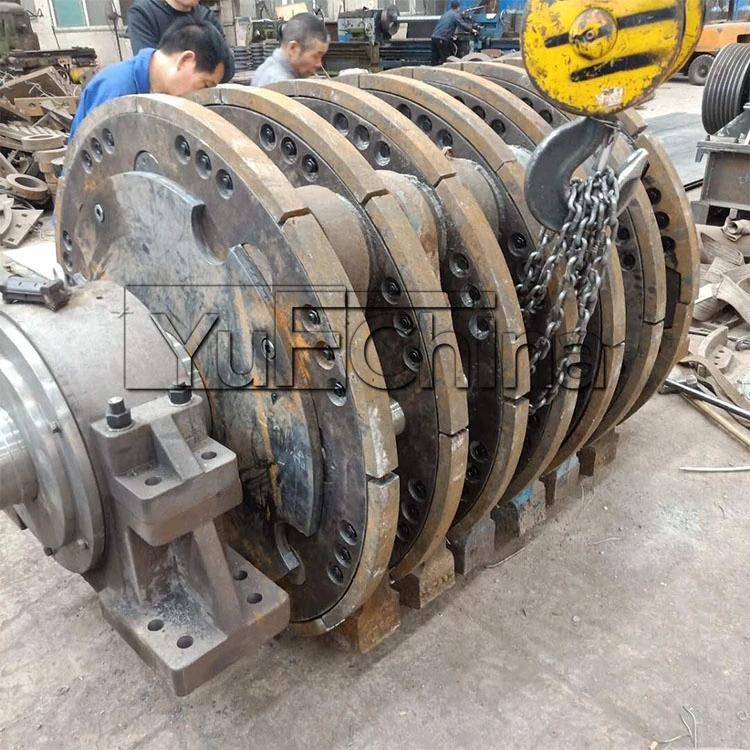

The heavy hammer crusher uses an external lubrication system including an oil pump, a fuel tank and a pipeline. When the oil temperature is too high or the oil flow rate is too slow, the crusher will be automatically turned off.It adopts high-quality high-manganese steel and undergoes a strict heat treatment process to obtain a single austenite structure. The service life is increased by more than five times compared with the original products such as manganese steel and rail, and the working efficiency is increased by more than 30%.



Heavy hammer crusher features

 1. The hammer hammer of the hammer crusher has great impact force.
2. The hammer shaft of the hammer crusher is adjustable and the hammer head has a long life.
3. The grid size is adjustable, the product size is controllable, and the shape of the granules is good.
4. The hammer crusher case can be turned over, and the maintenance is more convenient.
5. Square handle bolts, impact resistance and wear resistance.
6. The hammer crusher has compact structure and strong machine rigidity.

 Mobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and Glass Mobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and GlassMobile Hammer Mill Marble Crusher for Stone Limestone Gold Mining Can and Glass


Heavy hammer crusher technical data

ModelRotor size(mm)Feeding size(mm)Discharging size(mm)Capacity
(T/h)		Power
(KW)
0808φ800×800≤5000-5080-100132
1310φ1310×790≤6000-60100-160160
1512φ1500×950≤8000-80250-400160×2
1615φ1650×1160≤10000-80400-800200×2
1620φ1660×1900≤10000-80800-1000400×2
1820φ1800×1964≤12000-80800-1500400×2
2125φ2100×2486≤16000-1002000-25001250



If you want to learn more information, please contact us at any time.
