• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：80sets,Month

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Year Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 80sets/Month

Product Description

2018 High Performance and Low Price concrete crushing machine

One of the most popular concrete crushing machine in the world, concrete crushing machine is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320 Mpa.

Our design and production are of high position both at home and abroad. One of our main products, concrete crushing machine is designed by our engineers with large reduction ratio, even granularity, simple structure, reliable operation, convenient maintenance, low cost. It is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries.


concrete crushing machine main Features and Advantages:

1. High efficiency and low operation cost
2. Flexible capacity
3. Simple structure and easy to operate
4. Over loading protection
5. Easy replacement of wearing parts
6. Long service life
7. High reliability
8. Wide ranges of choices
9. Alternative ordinary and hydraulic types


concrete crushing machine work principle:

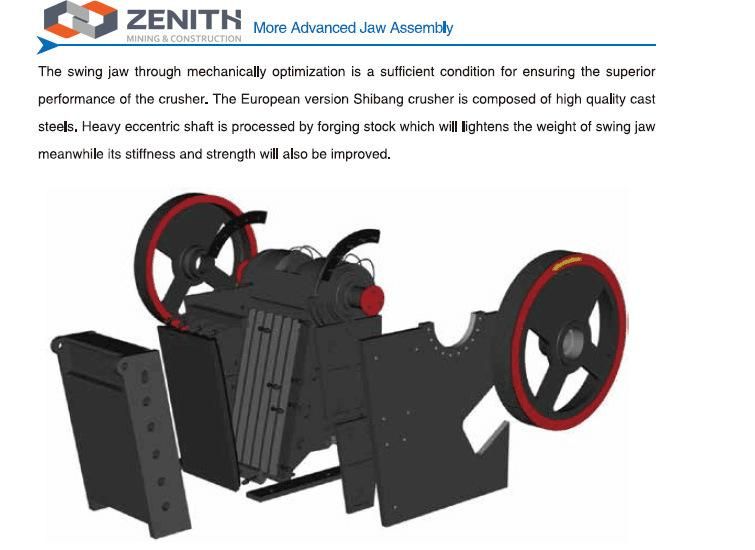

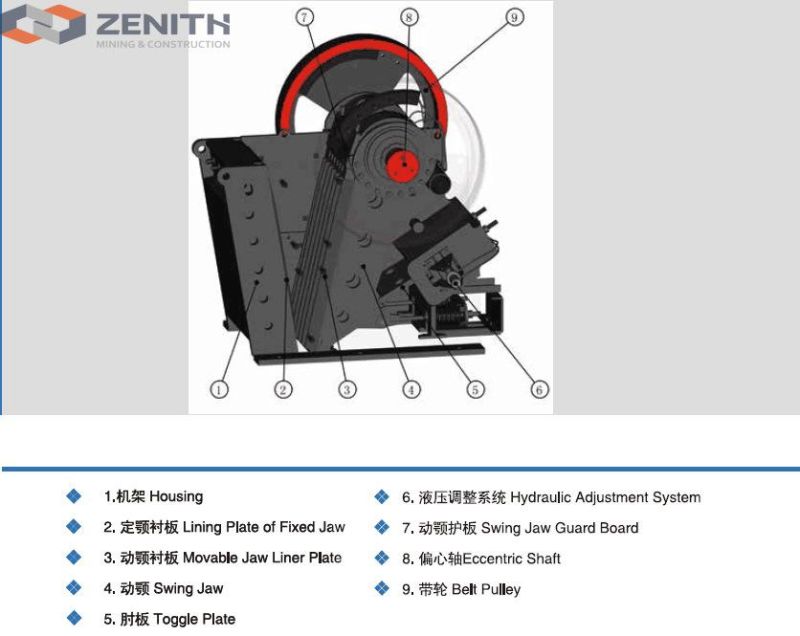

The working principle of concrete crushing machine is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, stone crusher machine price is easy to maintain and repair. These features promote its popularity to a great extant.


concrete crushing machine application:

concrete crushing machine are ideally suitable for primary and secondary crushing, with low power consumption and easy maintenance. Every feature of concrete crushing machine has been carefully designed to provide superior quality and performance. concrete crushing machine are widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. These crushers are recommended by leading consultants in this field and are used by hundreds of customers all over the world.



concrete crushing machine technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560
