Full Automatic Bridge Stone Cutting Machine with Functions of Chamfering Cutting and Cross Cutting Hlsq-450

Fujian Province Hualong Machinery Co., Ltd.
  • Usage：Ceramics, Granite, Marble
  • Application：Machinery & Hardware, Art & Craft, Stone Industry

Base Info

  • Model NO.：HLSQ-450
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Certification：ISO, CE
  • Head Rotate 4 Positions：0,90,180,270degree
  • Head Tilting Position：45 Degree
  • Table Rotate：0-360 Degree
  • Table Tilt：0-85 Degree
  • Guide Rail：Linear Guide
  • Gearing：Rack Gear
  • Color：Red and Ivory
  • Diamensions of Working Platform：3300*2000mm
  • Transport Package：Plastic Packing
  • Specification：5700x3260x2765mm
  • Trademark：Hualong
  • Origin：Putian, Fujian, China
  • HS Code：84641010
  • Production Capacity：50PCS,Month

Description

Full Automatic Bridge Stone Cutting Machine with Functions of Chamfering Cutting and Cross Cutting Hlsq-450Full Automatic Bridge Stone Cutting Machine with Functions of Chamfering Cutting and Cross Cutting Hlsq-450Full Automatic Bridge Stone Cutting Machine with Functions of Chamfering Cutting and Cross Cutting Hlsq-450Full Automatic Bridge Stone Cutting Machine with Functions of Chamfering Cutting and Cross Cutting Hlsq-450Full Automatic Bridge Stone Cutting Machine with Functions of Chamfering Cutting and Cross Cutting Hlsq-450


More advantages
1) 25 years + experience professional on making stone machines.

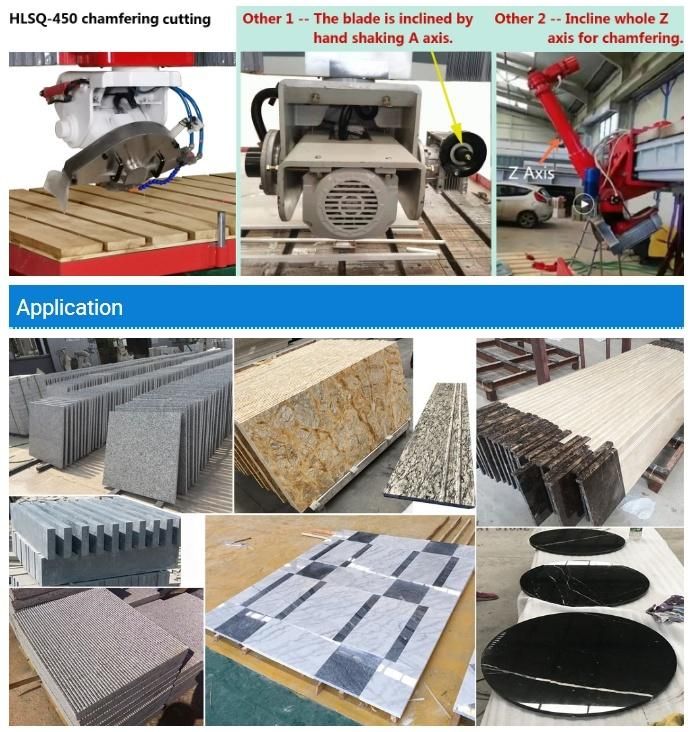

2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.4) For chamfering cutting, the blade tilt of HLSQ-450 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
