China Marble Engraving Machine

JINAN DLM CNC ROUTER CO., LTD.
  • Function：Cutting
  • Application Material：Marble
  • Automation：Automatic
  • Control：CNC
  • Motor Power：Small Power
  • Engraving Head Speed Adjustability：Wide Adjustable Range

Base Info

  • Model NO.：DLM-2513
  • Certification：CE, ISO
  • Current：AC
  • Application：Advertising, Stone Industry
  • Customized：Customized
  • Spindle：5.5kw , 7.5kw
  • Table：T-Slot Steel Table and Water Tank
  • Motor：Servo Motor
  • Controller：Taiwan Syntec
  • Chiller：Cw 5000
  • Rail：25mm Hiwin

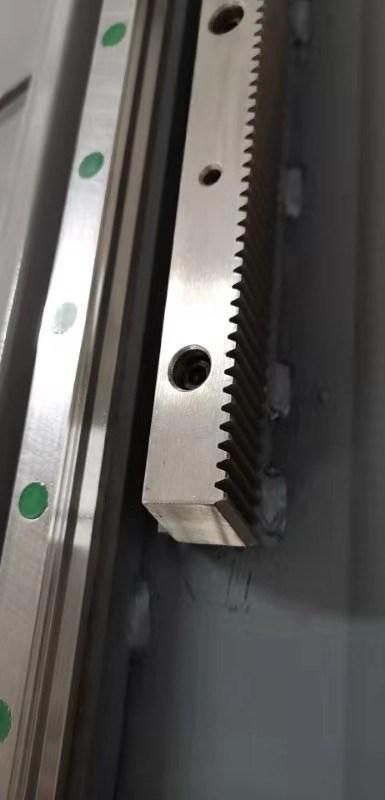

  • Rack：Helical Rack
  • Ball Screw：High Precision
  • Transport Package：Plywood Box
  • Specification：2500mm*1300mm
  • Trademark：DLM
  • Origin：China
  • HS Code：84609090
  • Production Capacity：500 Sets, Year

Description

DescriptionParameterX,Y working area2500mm*1300mmZ working area200mmTable designheavy dutyResolution0.05mmLathe structureSeamless welded steel structureX,Y structurePack and pinion transmission, Linear orbitZ structureImported ball screwMax. idling speed40m/minSpindle motor power5.5Kw/ 7.5KW / water coolingSpindle rotate speed0-24000r/minWorking voltageAC380V/50HzWorking modeServo motorDriverServoCommandG code, HPGL, U00, mmg, pltOperating systemTaiwan SyntecInterfaceUSBDiameter of cutterφ3.175 , φ6 φ, 12.7mmDust-collect functionYesWorking-holdingBy clampNet weight3000KG
detail

China Marble Engraving Machine
China Marble Engraving Machine
China Marble Engraving Machine
China Marble Engraving Machine
China Marble Engraving Machine
China Marble Engraving Machine
China Marble Engraving Machine
China Marble Engraving Machine
