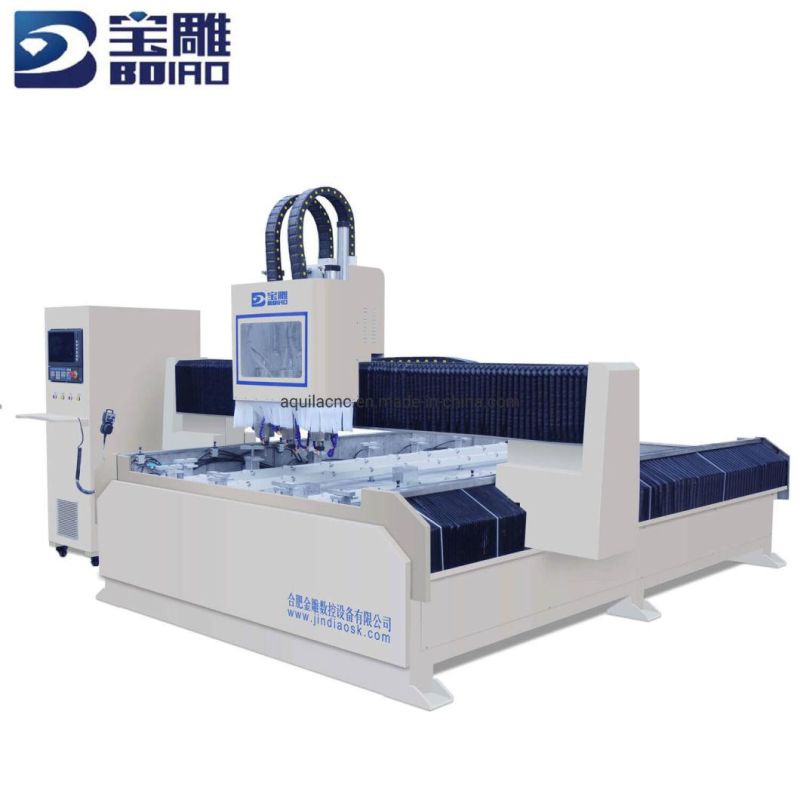

Stone Wash Basin Shaped Lines Cutting Process CNC Router Machine
Hefei Aquila CNC Equipment Co., Ltd.- Function：Cutting, Line Engraving
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：BD1630
- Certification：CE, ISO, SGS,BV
- Current：AC
- Application：Glass, Ceramics, Advertising, Stela & Gravestone, Stone Industry
- Customized：Customized
- Transport Package：Wooden Case
- Specification：3300x2300x2000mm
- Trademark：Boiro
- Origin：Hefei City, China
- HS Code：8464909000
- Production Capacity：3000 Sets, Year
Description
Basic Info.
Model NO. BD1630 Certification CE, ISO, SGS,BV Current AC Application Glass, Ceramics, Advertising, Stela & Gravestone, Stone Industry Customized Customized Transport Package Wooden Case Specification 3300x2300x2000mm Trademark Boiro Origin Hefei City, China HS Code 8464909000 Production Capacity 3000 Sets/ YearProduct Description
Stone Wash Basin Shaped Lines Cutting Process CNC Router MachineKeywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:
Stone Wash Basin Shaped Lines Cutting Process CNC Router Machine is BOIRO featured machine widely used in quartz stone,marble,granite and other materials made of countertop,wash basin,shaped lines,grinding and cutting process.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.
Functions:
The functions of this machine include 2D sculpture,3D relief,cutting,chamfering,drilling and engraving.
Applicable Materials:
Widely used for marble, jade, granite, tombstones, milestones,ceramic tiles,glass,bluestones and etc..
Application Scope:
Suitable for stone processing, countertop, wash basin, shaped lines, grinding and cutting process, tombstone processing, mold prcessing,art relief, decoration, ceramic processing, advertising industry.
Parameters:
| Model | Marble and Granite Coutertops Engraving, Polishing, Chamfering CNC Machine |
| X/Y/Z Axis Working Area | 1600*3000*240mm |
| Machine Size | 4010*2700*2400mm (After disassembling, size should be around 4010*2250*2400mm) |
| Working Table | Aviation aluminum plate + engineering plastic table top |
| Machine Structure | Thick steel welded, with aging treatment |
| Control System | NC Studio NC65C |
| Drive Motor | Leadshine servo motor and Stepper driver motor |
| Spindle Motor Power | 5.5KW+7.5KW water cooled spindle |
| Spindle speed | Adjustable Rotational Speed with 0-24000 rpm/min |
| Inverter | Zoncn (Optional with Fuling) |
| Drive System | X/Y axis helical rack & pinion, Z axis Taiwan ball screw |
| Guide Rail | Taiwan imported linear guide rail PMI |
| Cooling System | Circulating water-refluxing design/Round Spray |
| Oil System | Automatic Oil system |
| Way of Fixing Workpiece | Double-sided sealed vacuum adsorption system |
| Suction cup | 6pcs |
| Water and dust resistant | Intelligent dust proof cooling system |
| Hand wheel | Electric hand wheel |
| Profile polishing wheel | Max diameter 150mm |
| Tool type | BT40, Φ35, Φ30 |
| Collet/Tool holder | ER32, Φ10, Φ12, Φ12.7, Φ16, Φ20 |
| Electric Motor | 7.5KW |
| Positioning cylinder | 6pcs |
| Electric Appliance | Germany Schneider |
| Reducer | Planetary reducer |
| Working accuracy | ±0.08mm |
| Re-positioning accuracy | ±0.05mm |
| Max. Traveling Speed | 25 m/min |
| Max.Working Speed | 15 m/min |
| Water Sink/Tank | Powder-painting (Stainless steel is optional) |
| Dictate Format | G-Code / HPGL |
| Water consumption | 46L/min |
| Air pressure | 0.8Mpa |
| Weight | 3000KGS |
| Working Voltage | AC380V 3PH 50HZ |
| Vacuum Pump | 1*7.5KW |

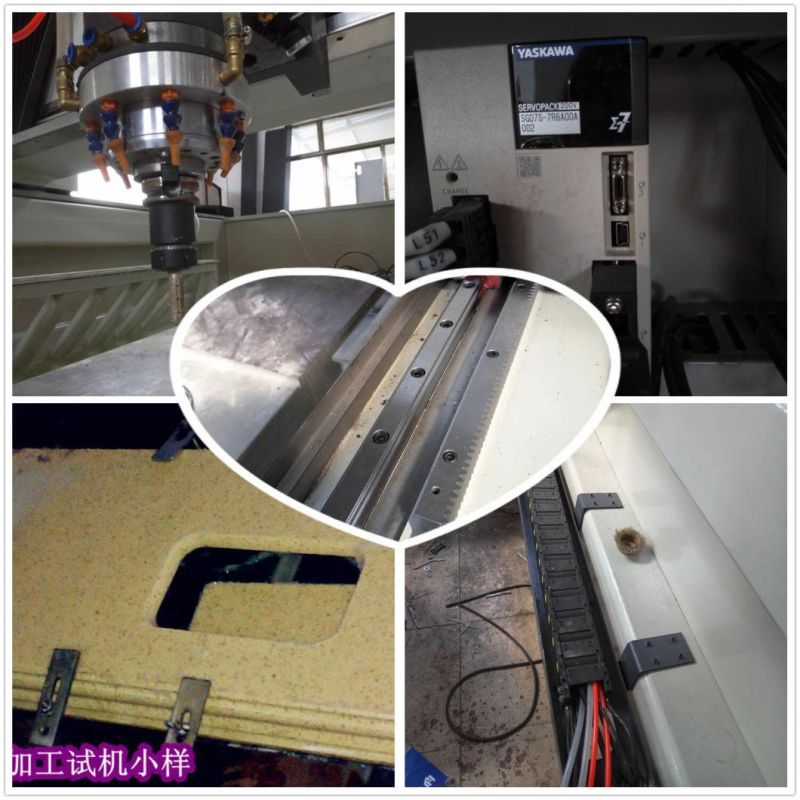

Accessories:
Performance Features:
| 1 | Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability |
| 2 | Famous brand big torque motor, low noise, large power, high efficiency |
| 3 | Adopt imported square linear guide rail, high speed, high precision, long life |
| 4 | Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength |
| 5 | Reasonable dustproof and waterproof design, fully protect the machine transmission parts |
| 6 | Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc.. |
| 7 | Tools and abrasives: a large number of imported and domestic specifications and shapes of tools and abrasives, as well as a variety of processing requirements |
| 8 | Vacuum adsorption device with double-sided seal makes the workpiece loading and unloading convenient, fast and accurate, ensuring that the stone is not moved when grinding and polishing |

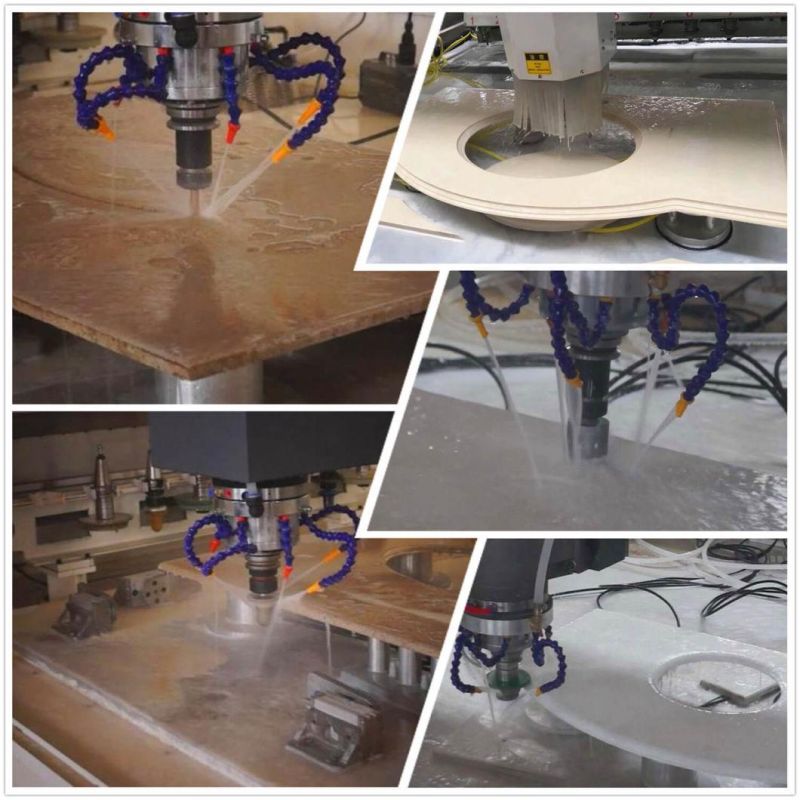

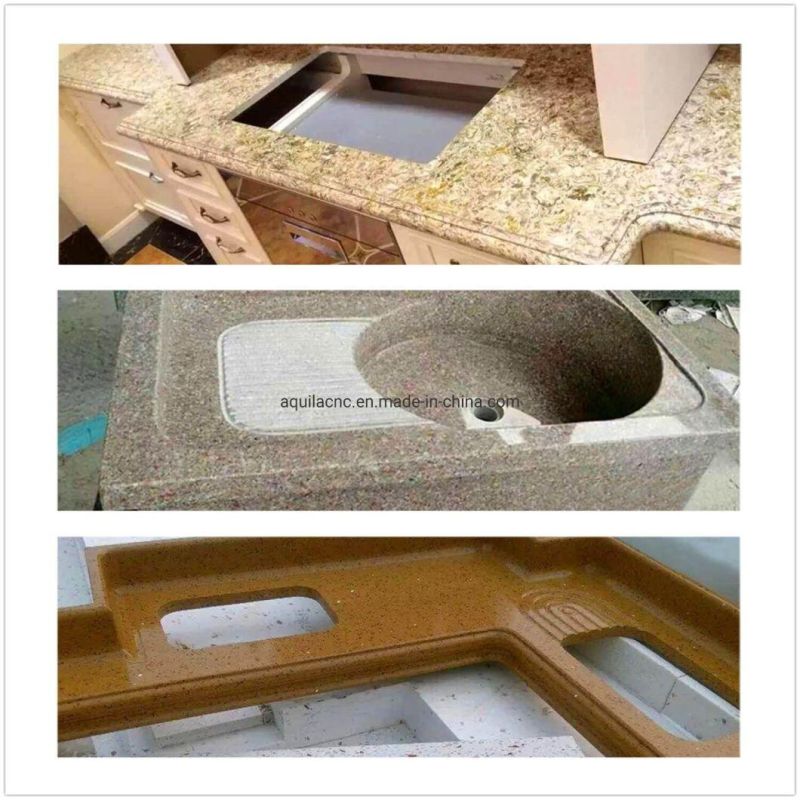

Samples:

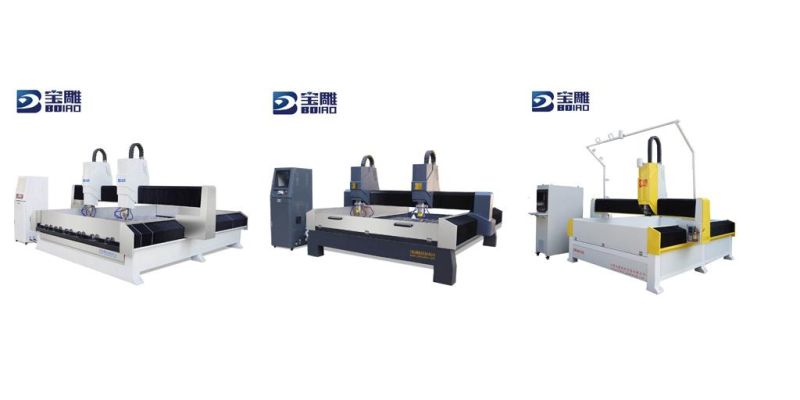

Similar Products:
