• Model NO.：ZDQJ-450
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Transport Package：Load in a 20 Feet Container
• Specification：6000*4800*3100mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：8464109000
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. ZDQJ-450 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Transport Package Load in a 20 Feet Container Specification 6000*4800*3100mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 8464109000 Production Capacity 1000 Sets/Year

Product Description

Product Description

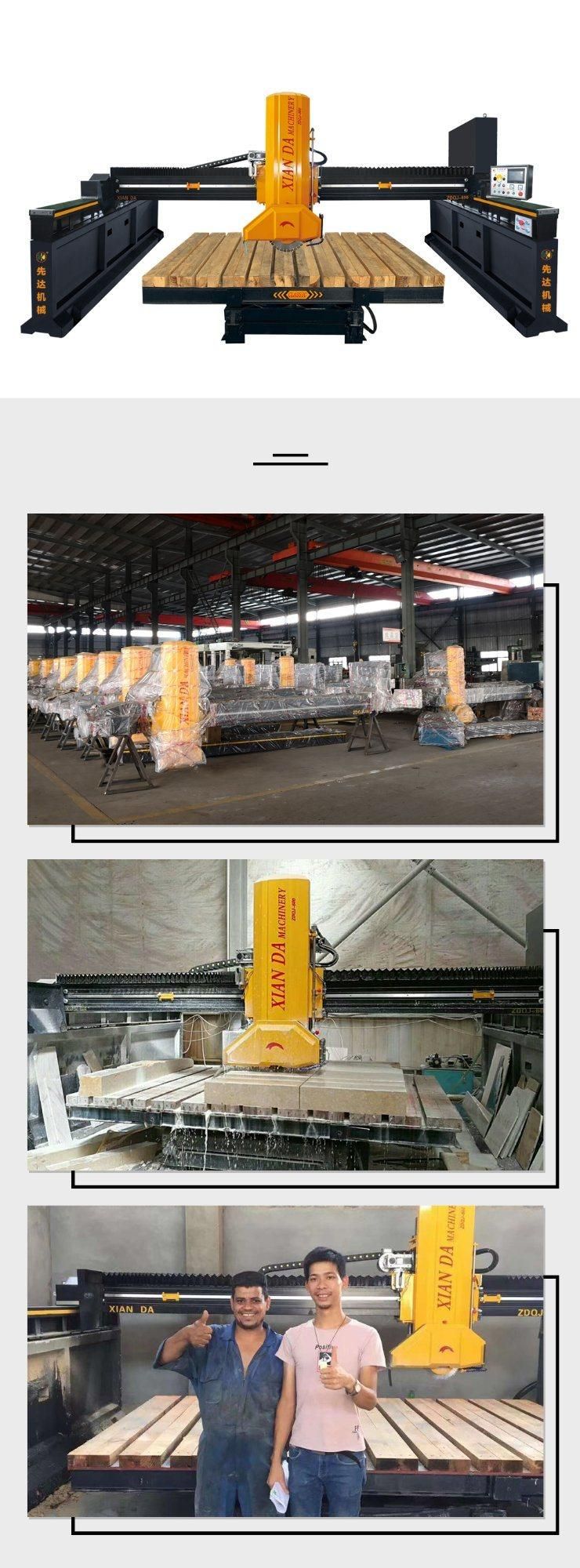

ZDQJ-400-600-700, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy-operation, specially high value granite and  big size marble.

Technical Parameter

Parameter	Unit	ZDQJ-450	ZDQJ-600	ZDQJ-800
Blade diameter	mm	300-450	350-600	500-800
Max processing size	mm	3200*2000*120	3200*2000*170	3200*2000*270
Dimension of worktable	mm	3200*2000	3200*2000	3200*2000
Worktable tilting degree	°	0-85°	0-85°	0-85°
Worktable rotation degree	°	0-90°/0-360°	0-90°/0-360°	0-90°/0-360°
Main motor	kw	15	18.5	22
Gross motor	kw	21	24	27.5
Water consumption	m³/h	4	4	4
Outline dimension	mm	5850*4700*2700	5850*4700*3000	5850*4700*3450
Gross weight	kg	5500	5750	6000

Xianda Machinery

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

FAQ

1. Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.

2. Quality Control
We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery Time
Based on order quantity, normally three weeks against payment.

4. Warranty
All the machines have one year warranty.

5. After Services
Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
