Stone Processing Machinery

Home > Product > Stone Cutting Machine

2021 Bestlink Thin Veneer Saw Tile Cutting Machine

Xiamen Bestlink Factory Co., Ltd.
  • Type：Hydraulic Cutting Machine
  • Usage：Ceramics, Granite, Marble
  • Application：Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：Low Speed

Base Info

  • Model NO.：30HP 60HP Mighty Stone Saw
  • Control：Control Panel
  • Certification：CE
  • Blade Diameter：750mm-1200mm
  • Transport Package：Nude Packing
  • Specification：3100mm*1600mm*1730mm
  • Trademark：BESTLINK
  • Origin：China
  • HS Code：84791090
  • Production Capacity：100 Sets,Month

Description

Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min

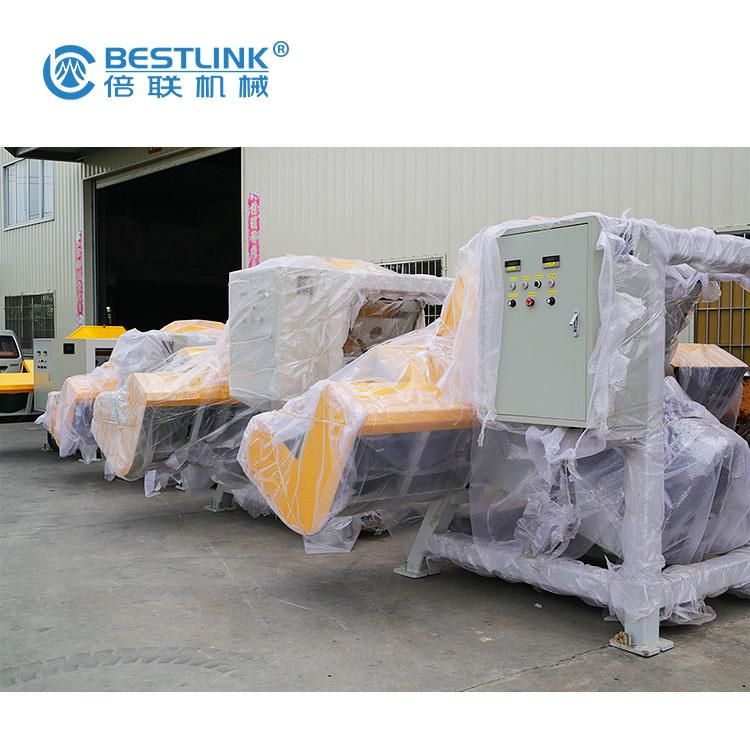

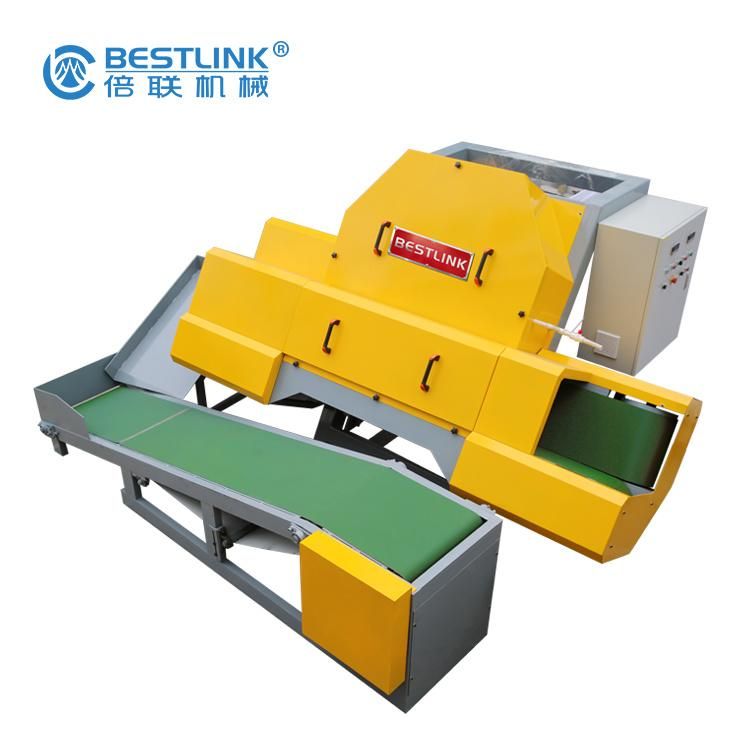

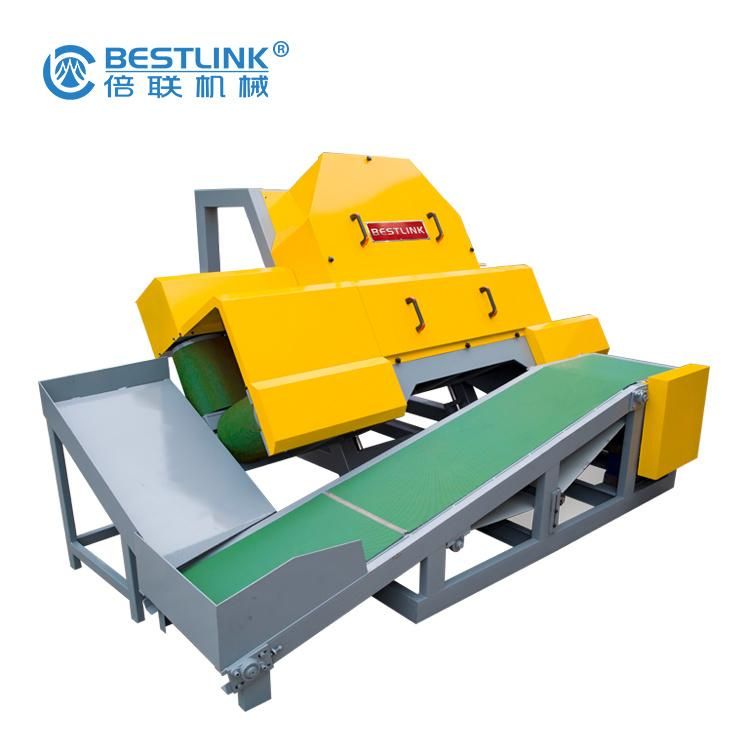

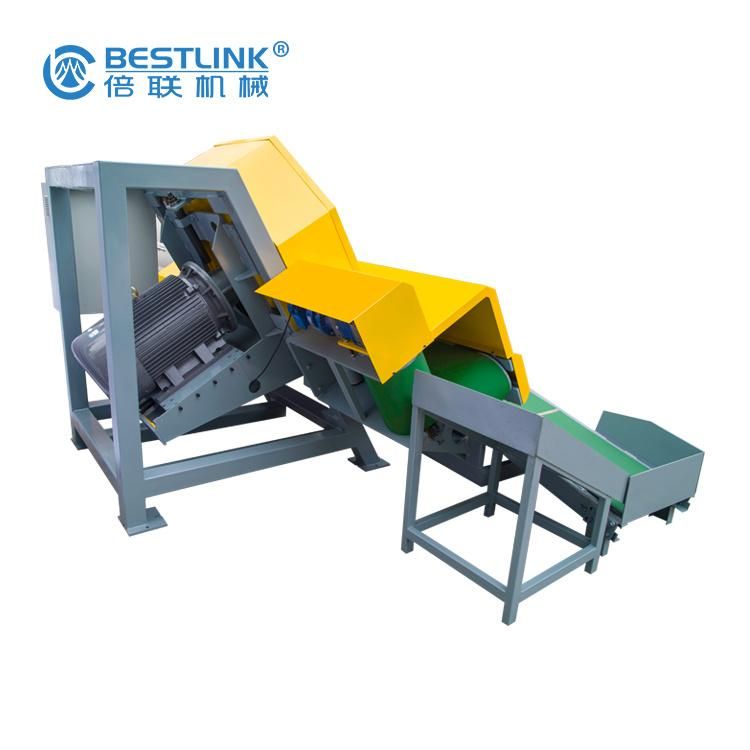

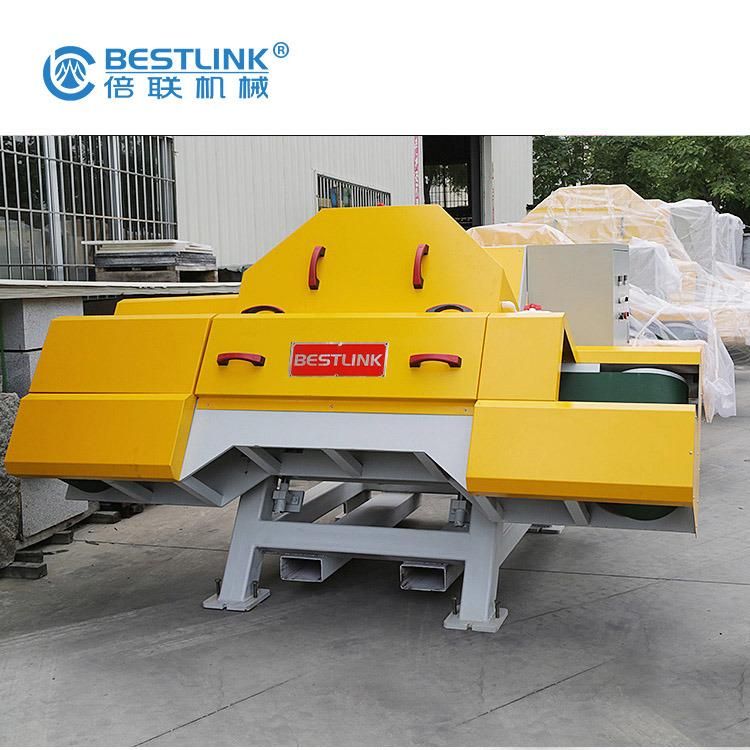

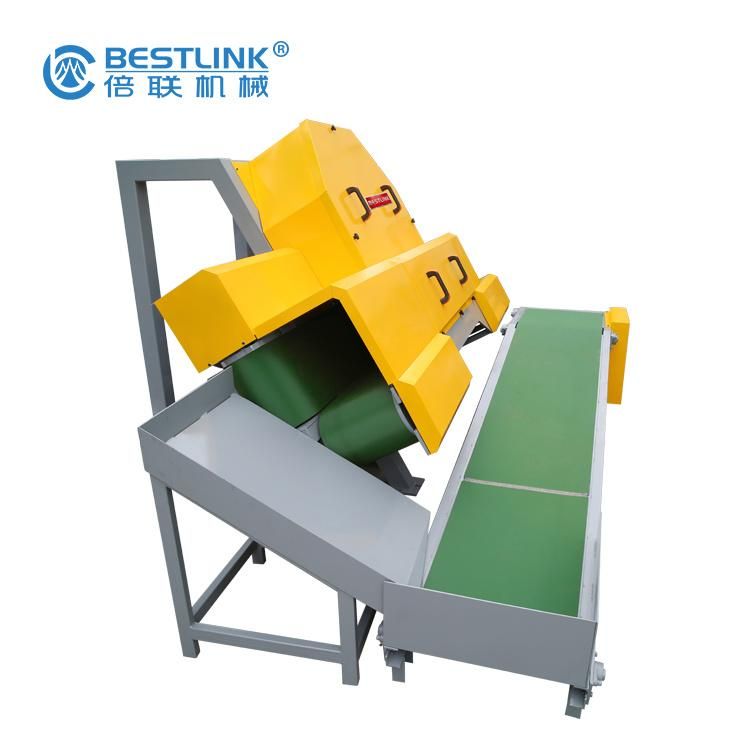

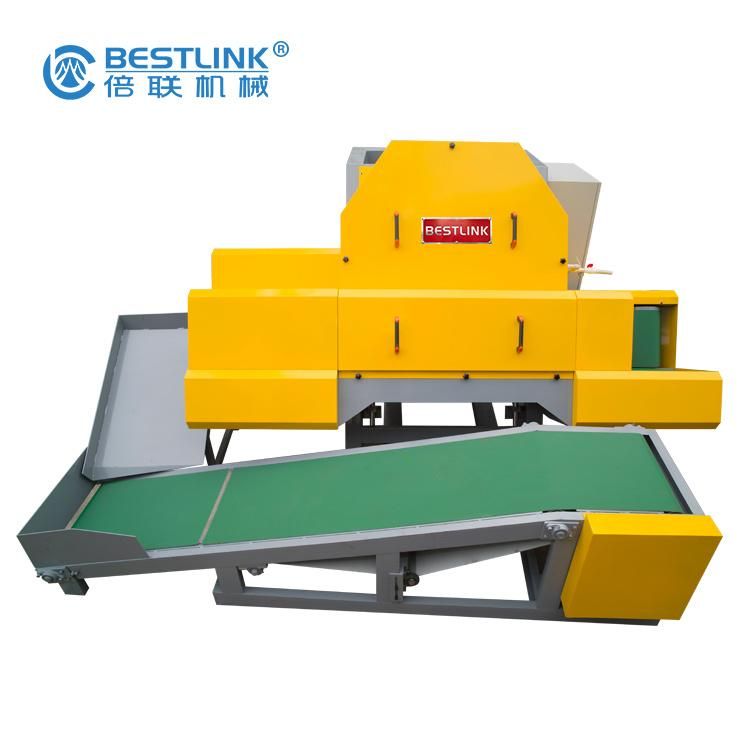

Pictures for the Thin Veneer Saw Machine Detailes:

2021 Bestlink Thin Veneer Saw Tile Cutting Machine
2021 Bestlink Thin Veneer Saw Tile Cutting Machine2021 Bestlink Thin Veneer Saw Tile Cutting Machine2021 Bestlink Thin Veneer Saw Tile Cutting Machine2021 Bestlink Thin Veneer Saw Tile Cutting Machine2021 Bestlink Thin Veneer Saw Tile Cutting Machine



2021 Bestlink Thin Veneer Saw Tile Cutting Machine
2021 Bestlink Thin Veneer Saw Tile Cutting Machine
