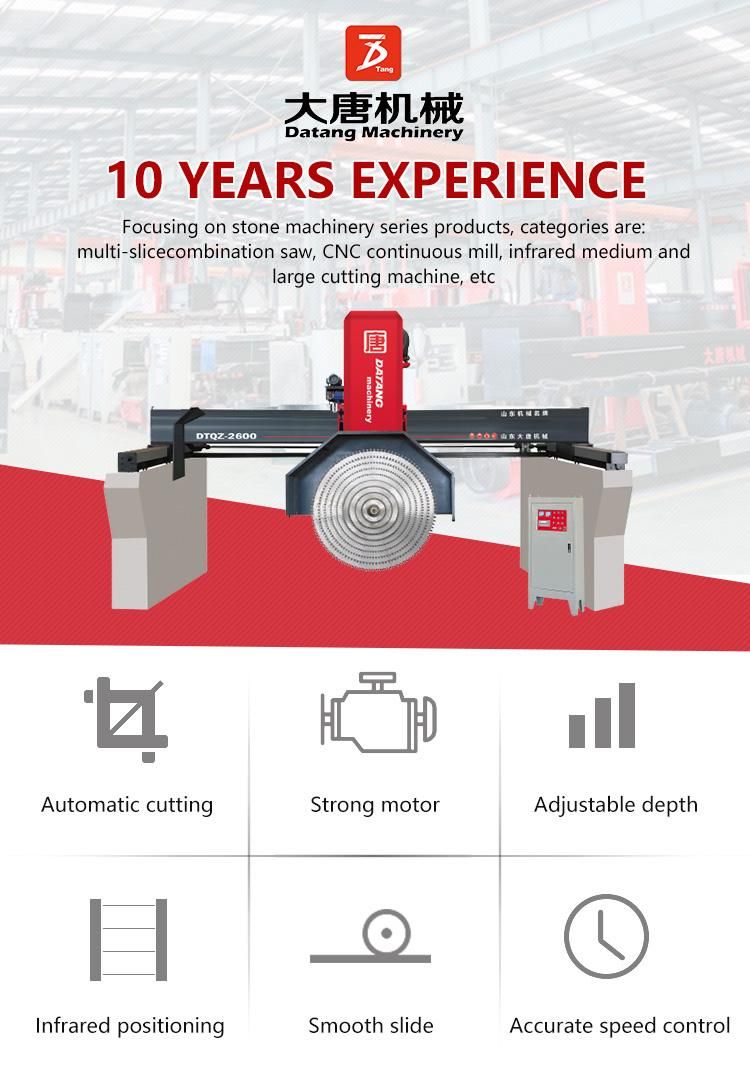

Marble Slab / Granite Slab Bridge Block Multi Blade Cutting Machine
Shandong Datang Machinery Technology Co., Ltd.- Type：CNC Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：DTQZ-2200-4D
- Control：CNC
- Certification：ISO, CE
- Max Blade Diameter：2200mm
- Max Cutting Length：3200mm
- Max Cutting Width：2200mm
- Max Cutting Depth：950mm
- Main Power：37kw
- Water Consumption：15m3,H
- Machine Weight：11000kg
- Overall Diamension：7500*4500*6800mm
- Transport Package：Nude Packing
- Trademark：datang
- Origin：China
- HS Code：8464101000
- Production Capacity：600sets,Year
Description
Basic Info.
Model NO. DTQZ-2200-4D Control CNC Certification ISO, CE Max Blade Diameter 2200mm Max Cutting Length 3200mm Max Cutting Width 2200mm Max Cutting Depth 950mm Main Power 37kw Water Consumption 15m3/H Machine Weight 11000kg Overall Diamension 7500*4500*6800mm Transport Package Nude Packing Trademark datang Origin China HS Code 8464101000 Production Capacity 600sets/YearProduct Description

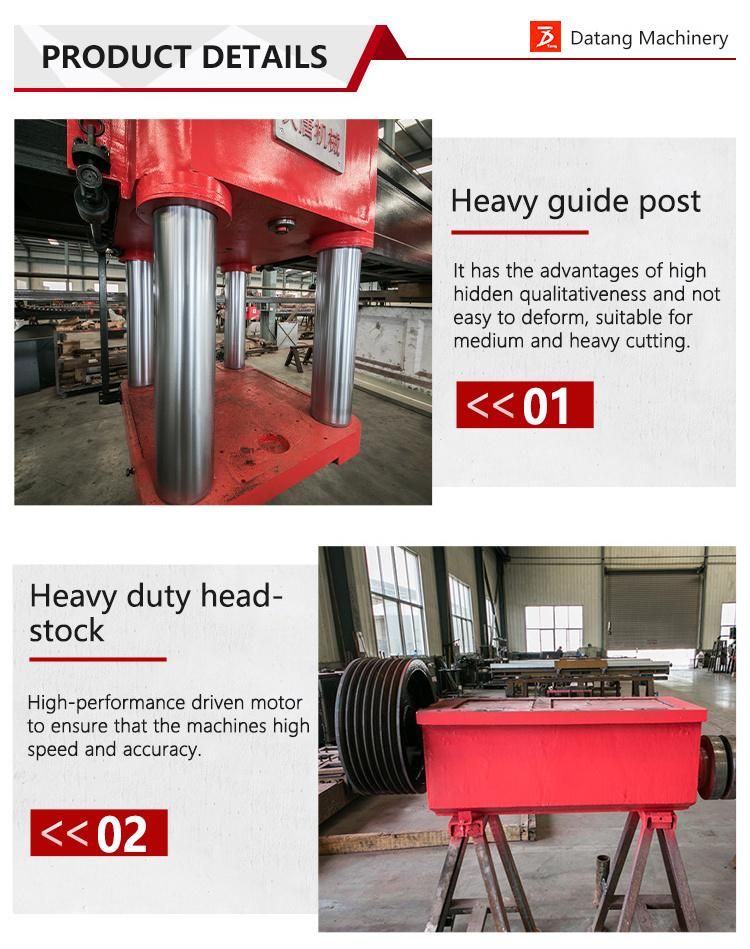

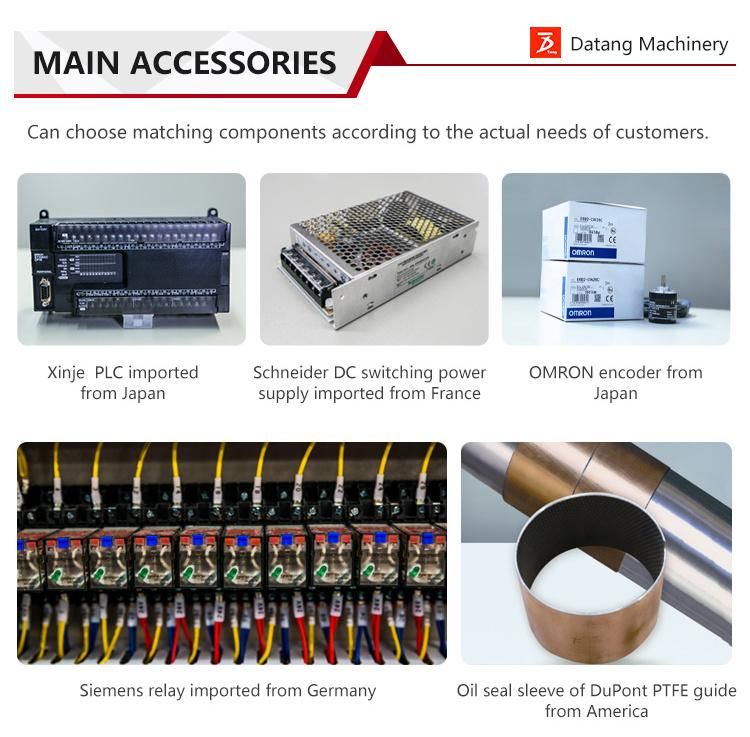

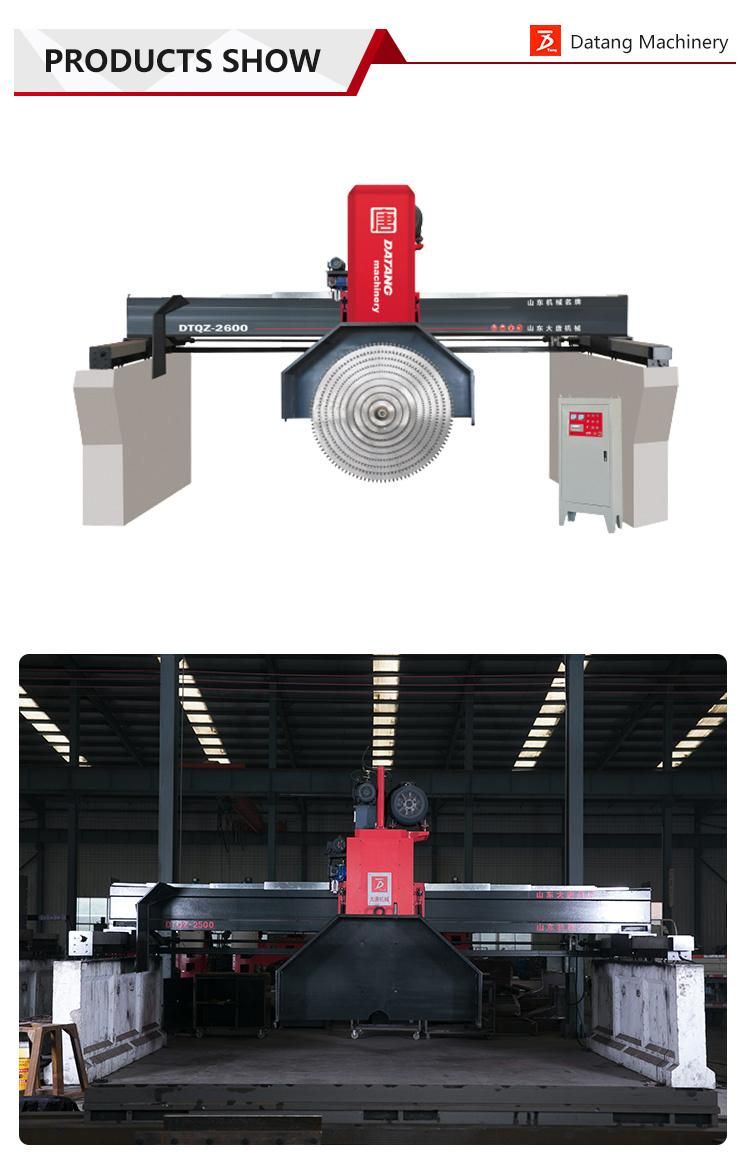

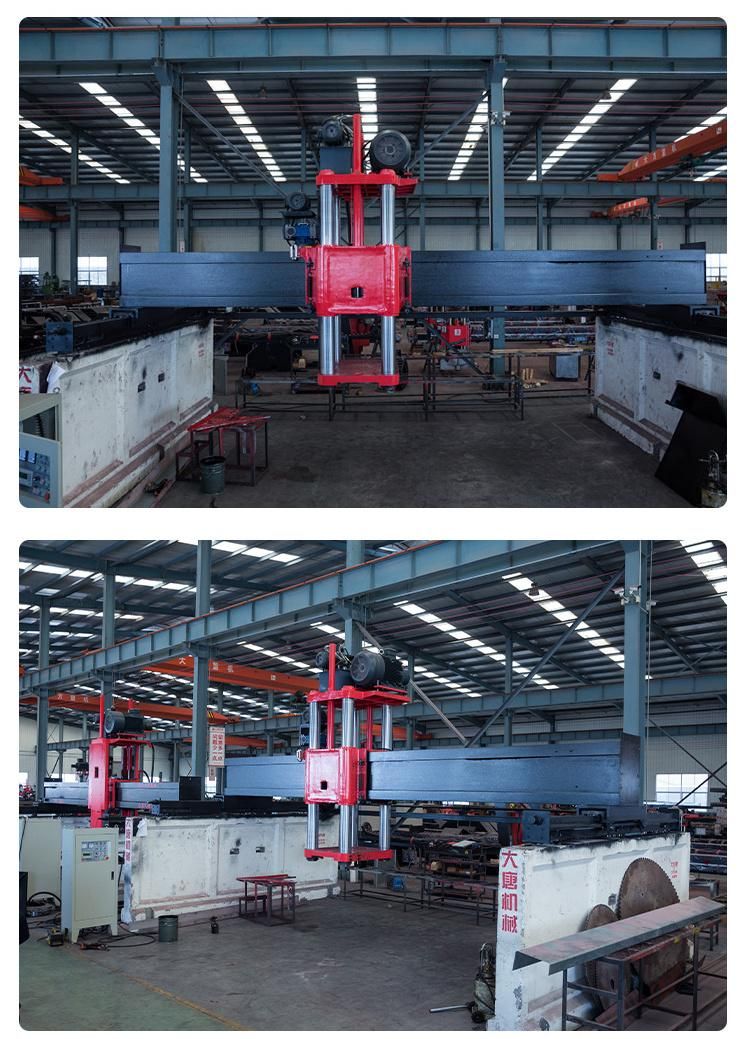

The DTQZ-2200/2600/2800-4D bridge type multi blades stone cutter with 4 lead pillars.Working principle:The machine blades moving left and right direcction is controlled variable-frequency dirive(VFD) and the speed will be adjusted depend on the hardness of the stone. The lift moving up and down is driven by 4 pillars by oil hydraulic pressure cylinder(or by lead screw).The lead pillar is made of high quality solid round steel plated with hard chromium,and the diameter of one pollar reach 180mm,with automatic lubricating.The anti-wear oil seal sleeve adopts DUPONT PTEE from America.It be rolled in round pit to store the oil supply.It has low friction factor,excellent performance in abrasion and long working life The front and rear moving of blades is driven by high-precision lead screw on the two sides beam. Some key parts comprise of imported accessories with high quality. So the blocks can be put on the ground to cut to save the working table and its maintaining fee. Hence, the stone cutter is featured with high efficiency, high accuracy of blades moving, high stable , easy operating, the processing slab is high flatness products. The machine is suitable for cutting high value granite, marble and other block materials. In addition, the accessories of DTQZ-2200/2600 bridge type stone cutter can be chosen by customers demands..
| Appellation | DTQZ-2200-4D | DTQZ-2600-4D | DTQZ-2800-4D |
| Max. blade diameter: | 2200mm | 2600mm | 2800mm |
| Max. processing length: | 3800mm | 3500mm | 3700mm |
| Max. processing width: | 2200mm | 2200mm | 2200mm |
| Max. processing depth: | 950mm | 1150mm | 1250mm |
| Max. lifting stroke: | 1400mm | 1400mm | 1400mm |
| Water consumption | 15m³/h | 15m³/h | 15m³/h |
| Power of main motor : | 37kw | 45kw | 55kw |
| Total power | 50kw | 58kw | 68kw |
| Dimension(L*W*H): | 7500*4500*6800mm | 7500*4500*6800mm | 7500*4500*7000mm |
| Weight | 16000kg | 16500kg | 17000kg |
Q: Are you a manufacturer or trading company?
A: We are the largest stone machine manufacturer in northern China.And we can provide one-stop shopping service.
Q: Can I become a distributor?
A: Yes, we have special discount for distributor.
Q: What is your competitiveness ?
A: We are the biggest stone machine manufacturer in northern China. And we can provide one-stop shopping service.Our machine has good price with best quality. Each machine has its long lifetime, high production capacity and accuracy. Also, we could appoint our engineer to come overseas to help the customer if machine got problem.
Q: When you ship my order ?
A: For the normal machines we have standard models in stock,so we can ship it as soon as we receive your payment.
If we do not have it in stock ,normally it takes 15-20days to produce after receiving deposit, but it can be negotiated if customers need urgently.
Q: How about the quality guarantee period ?
A: one year !
Q: What language does your machine have ?
A: All the machines have both Chinese and English language ,some machines also have Russian, Saudi, Polish, Korean, etc.We can make the language according to your require.If you can help to check the translation ,it will be much better.
Q: How can you guarantee the production quality ?

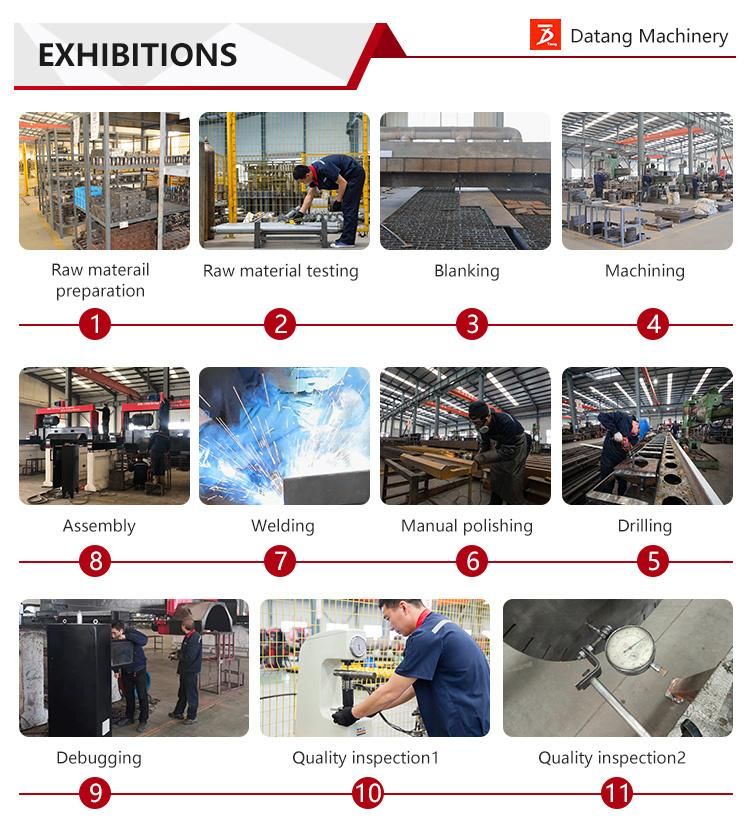

A: We have strictly quality control system in our production process. All products must be double checked during every manufacturing process. Requirement of customers and quality of products will be full guaranteed.We will send you the machine testing videos before shipping the machine.
Q: After I bought the machines , how I can install and operate it ?
A: We strongly suggest customer to ask our engineer to come to help you to install the machines and teach your operator how to operate and maintain it .
Q: If I don't want your engineers ,how can I install and operate the machine by myself ?
