• Model NO.：WKQ-1200
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO
• Color：Black and Yellow
• Max Blade Diameter：1200mm
• Max Lifting Travel：760mm
• Worktable Size：3000X2000mm
• Worktable Rotating Degree：0-90°
• Main Motor：22kw
• Gross Motor：29kw
• Water Consumption：6m³,H
• Gross Weight：6800kgs
• Specification：6800X4800X4400mm
• Trademark：XIANDA
• Origin：Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. WKQ-1200 Cutting Ability High Speed Control PLC Certification ISO Color Black and Yellow Max Blade Diameter 1200mm Max Lifting Travel 760mm Worktable Size 3000X2000mm Worktable Rotating Degree 0-90° Main Motor 22kw Gross Motor 29kw Water Consumption 6m³/H Gross Weight 6800kgs Specification 6800X4800X4400mm Trademark XIANDA Origin Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

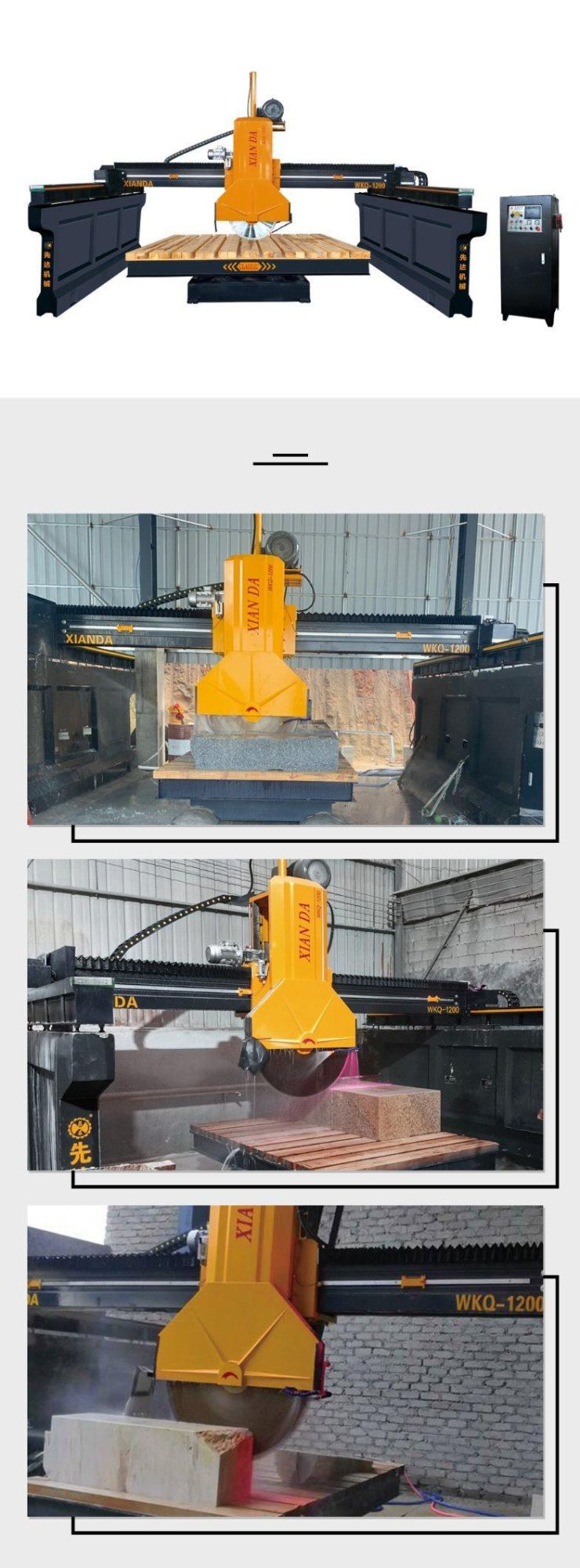

WKQ-1200 middle bridge saw stone cutting machine for marble granite



WKQ-1200,designing reasonable structure, adopting PLC system and Human-machine interface, togethering Chinese & English double operation language and infrared device, equipting with ultra-high precision rotary encoder, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through slide plate, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality materials. Thus the whole machine is featured as high cutting efficiency,high stability,esay-operating, specially cutting shaped stone products,tombstone and curb stone.



Parameter	Unit	WKQ-1200
Max blade diameter	mm	φ1200
Max lifting travel	mm	760
Worktable size	mm	3600x2000
Worktable rotating degree	°	0-90°
Outline dimension	mm	6800x4800x4400
Main motor	kw	22
Gross motor	kw	29
Water consumption	m³/h	6
Gross weight	kg	6800





Factory Overviews



Certifications

Exhibition

Our Services



We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
