CNC Stone Cutting Machine Heavy Size Bridge Type Block Cutting Machine

FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.
  • Type：CNC Cutting Machine
  • Usage：Ceramics, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
  • Application：Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：HLLD-2800,3500
  • Control：Artificial
  • Certification：SONCAP, ISO, CE
  • Power of Main Motor：55-75kw
  • Saw Blade Diameter：2800-3500mm
  • Cutting Length：3500mm
  • Cutting Width：2300mm
  • Lifting Stroke：1400-1450mm
  • Total Power：67-87kw
  • Gross Weight：12500-18000kg
  • Transport Package：Staandard
  • Specification：7800*4500*4500-7800*4500*4800
  • Trademark：hl&sm
  • Origin：Shuitou Xiamen China
  • Production Capacity：260sets,Year

Description

Basic Info.

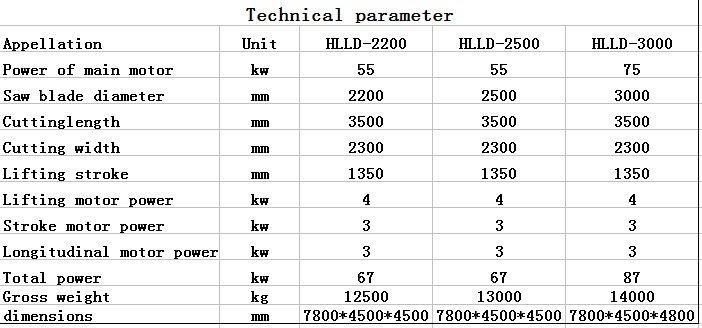

Model NO. HLLD-2800/3500 Control Artificial Certification SONCAP, ISO, CE Power of Main Motor 55-75kw Saw Blade Diameter 2800-3500mm Cutting Length 3500mm Cutting Width 2300mm Lifting Stroke 1400-1450mm Total Power 67-87kw Gross Weight 12500-18000kg Transport Package Staandard Specification 7800*4500*4500-7800*4500*4800 Trademark hl&sm Origin Shuitou Xiamen China Production Capacity 260sets/Year

Product Description

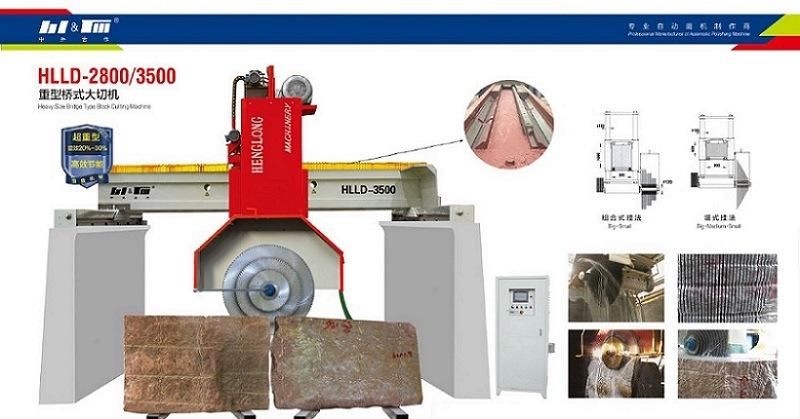

HLLD-2800/3500
Heavy size bridge type block cutting machine
1. This machine uses inverter to control left-right feeding and adjusts speed according to the stone material. It uses hydtaulic lifting system, combination of chrome-plated guide pin and wear guide bush with small gap,wearable,beautiful structure. The guide sleeve with multi-layer seals with waterproof,dustproof,anti-spill, improving the service life. Foeward-backward slicing uses high-precision screw nut driving, qutonatic slicing, main spare parts adopt imported good quality materials, the blodk can be place on the ground directly to enconomize the worktable and maintance costs; Thus the whole machine is featured by it's high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.


CNC Stone Cutting Machine Heavy Size Bridge Type Block Cutting Machine


CNC Stone Cutting Machine Heavy Size Bridge Type Block Cutting Machine
About us
CNC Stone Cutting Machine Heavy Size Bridge Type Block Cutting Machine
CNC Stone Cutting Machine Heavy Size Bridge Type Block Cutting Machine
CNC Stone Cutting Machine Heavy Size Bridge Type Block Cutting Machine


CNC Stone Cutting Machine Heavy Size Bridge Type Block Cutting Machine
CNC Stone Cutting Machine Heavy Size Bridge Type Block Cutting Machine

More information please contact us
