Factory Price Stone Cutting Machine -Heavy Size Bridge Type Block Cutting Machine

FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.
  • Type：CNC Cutting Machine
  • Usage：Ceramics, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
  • Application：Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：HLLD-2800,3500
  • Control：Artificial
  • Certification：SONCAP, ISO, CE
  • Power of Main Motor：55-75kw
  • Saw Blade Diameter：2800-3500mm
  • Cutting Length：3500mm
  • Cutting Width：2300mm
  • Lifting Stroke：1400-1450mm
  • Total Power：67-87kw
  • Gross Weight：12500-18000kg
  • Transport Package：Staandard
  • Specification：7800*4500*4500-7800*4500*4800
  • Trademark：hl&sm
  • Origin：Shuitou Xiamen China
  • Production Capacity：260sets,Year

Description

Basic Info.

Model NO. HLLD-2800/3500 Control Artificial Certification SONCAP, ISO, CE Power of Main Motor 55-75kw Saw Blade Diameter 2800-3500mm Cutting Length 3500mm Cutting Width 2300mm Lifting Stroke 1400-1450mm Total Power 67-87kw Gross Weight 12500-18000kg Transport Package Staandard Specification 7800*4500*4500-7800*4500*4800 Trademark hl&sm Origin Shuitou Xiamen China Production Capacity 260sets/Year

Product Description

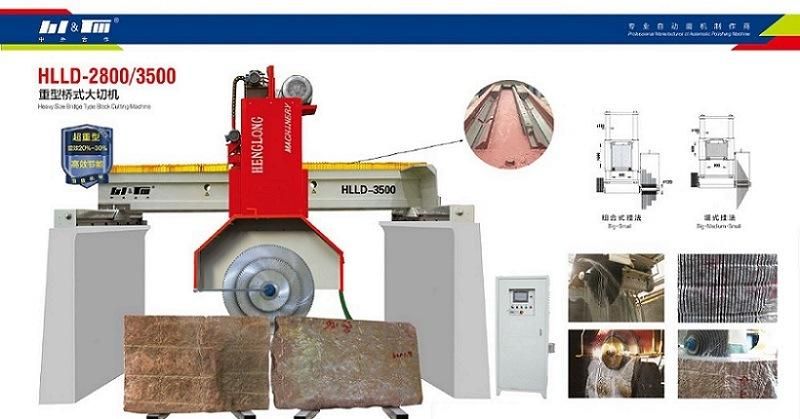

HLLD-2800/3500
Heavy size bridge type block cutting machine
1. This machine uses inverter to control left-right feeding and adjusts speed according to the stone material. It uses hydtaulic lifting system, combination of chrome-plated guide pin and wear guide bush with small gap,wearable,beautiful structure. The guide sleeve with multi-layer seals with waterproof,dustproof,anti-spill, improving the service life. Foeward-backward slicing uses high-precision screw nut driving, qutonatic slicing, main spare parts adopt imported good quality materials, the blodk can be place on the ground directly to enconomize the worktable and maintance costs; Thus the whole machine is featured by it's high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.


Factory Price Stone Cutting Machine -Heavy Size Bridge Type Block Cutting Machine


Factory Price Stone Cutting Machine -Heavy Size Bridge Type Block Cutting Machine
About us
Factory Price Stone Cutting Machine -Heavy Size Bridge Type Block Cutting Machine
Factory Price Stone Cutting Machine -Heavy Size Bridge Type Block Cutting Machine
Factory Price Stone Cutting Machine -Heavy Size Bridge Type Block Cutting Machine


Factory Price Stone Cutting Machine -Heavy Size Bridge Type Block Cutting Machine


More information please contact us
