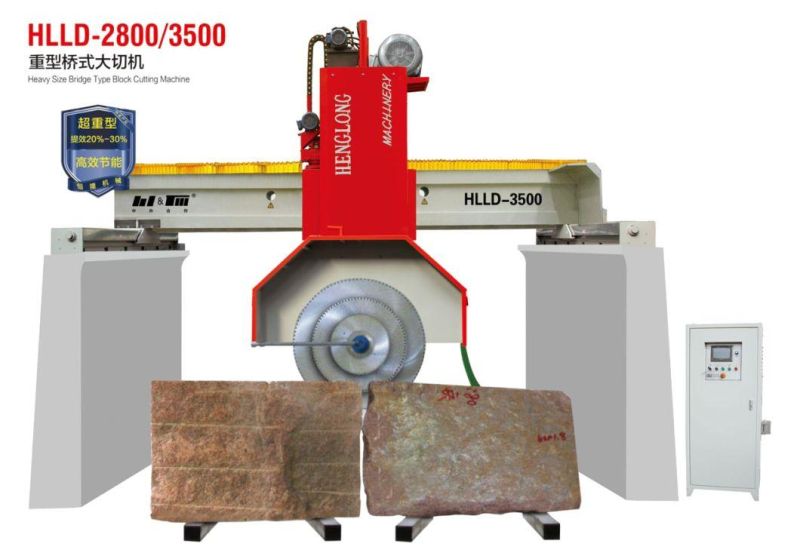

Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter

FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.
  • After-sales Service：Provide
  • Warranty：Provide
  • Type：Hydraulic Cutting Machine
  • Usage：Granite, Marble
  • Application：Construction, Mineral Industry, Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：HLLD-2800,3500
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Certification：SONCAP, ISO, CE
  • Power of Main Motor：55kw
  • Saw Blade Diameter：2800mm
  • Cutting Length：3500mm
  • Cutting Width：2300mm
  • Lifting Stroke：1400mm
  • Lifting Motor Power：4kw
  • Stroke Motor Power：4kw
  • Longitudinal Motor Power：3kw
  • Total Power：67kw
  • Gross Weight：12500kg
  • Transport Package：Standard Export Packaging
  • Specification：800*4500*4500mm
  • Trademark：Henglong
  • Origin：Fujian, China
  • HS Code：84641090
  • Production Capacity：20 Sets,Month

Description

Basic Info.

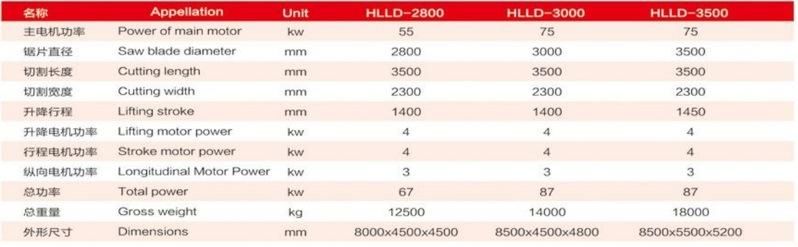

Model NO. HLLD-2800/3500 Automation Automatic Cutting Ability High Speed Certification SONCAP, ISO, CE Power of Main Motor 55kw Saw Blade Diameter 2800mm Cutting Length 3500mm Cutting Width 2300mm Lifting Stroke 1400mm Lifting Motor Power 4kw Stroke Motor Power 4kw Longitudinal Motor Power 3kw Total Power 67kw Gross Weight 12500kg Transport Package Standard Export Packaging Specification 800*4500*4500mm Trademark Henglong Origin Fujian, China HS Code 84641090 Production Capacity 20 Sets/Month

Product Description

Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter
Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter
Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter
Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter


Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter
Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter
Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter




Product description

This machine uses inverter to control left-right feeding ,adjusts speed according to the stone material. It uses hydraulic lifting system,combination of Chrome-plated guide pin and wear guide bush ,with small gap,wearable,beautiful structure,and Guide Sleeve with multi-layer seals.with waterproof,dustproof,anti-spill,improving the service life. Forward - backward slicing uses high-precision screw nut driving ,automatic slicing ,main spare parts adopt imported good-quality materials;the block can be placed on the ground directly to economize the worktable and its maintenance costs .Thus the whole machine is featured with high cutting effciency ,high slicing precision ,flatness of plate after cutting ,high stability,easy-operating to suit granite and marble block with high value.

Multi Blade Granite Marble Stone Cutting Machine Block Bridge Cutter



More information please contact us
