• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Blade Size：400-625mm
• Cut Size (L*W*H)：3200*2000*170mm
• Blade Tilt：0-45 Degrees
• Table Tilt：0-85 Degrees
• Table Rotate：0-360 Degrees
• Spindle Motor：15kw 20HP
• Size (L*W*H)：6*5*3
• Weight：7200kg
• Transport Package：Plastic Packing
• Specification：6*5*3m
• Trademark：AGA Machinery
• Origin：Xiamen China
• HS Code：84641090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Blade Size 400-625mm Cut Size (L*W*H) 3200*2000*170mm Blade Tilt 0-45 Degrees Table Tilt 0-85 Degrees Table Rotate 0-360 Degrees Spindle Motor 15kw 20HP Size (L*W*H) 6*5*3 Weight 7200kg Transport Package Plastic Packing Specification 6*5*3m Trademark AGA Machinery Origin Xiamen China HS Code 84641090 Production Capacity 200sets/Month

Product Description

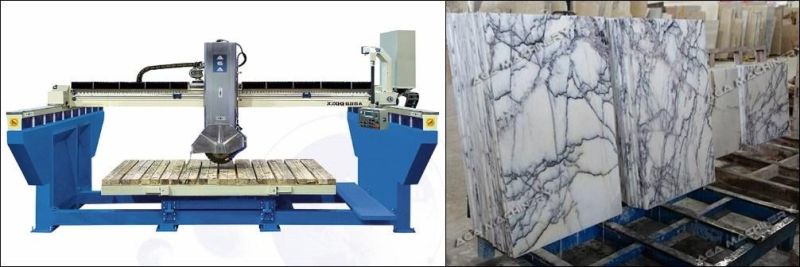

CNC Cutting Machine Automatic Stone Bridge Saw for Granite Marble Quartz Countertops
Automatic Bridge Saw for cutting granite, marble, quartz and engineered stones.
A robust bridge saw monoblock applicable for cutting and fabricating slab, counter tops, vanity top, etc.
USA Standard Made with a powerful motor 20 HP and able to cut 3200 mm length, 2000 mm width and 170 mm thick (126"×78"×6.7" L / W / H).

Stone bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Stone bridge saw advantages:
1) Controlled by  PLC, operated expediently, accurately and stably.
2) One-button automatic vertical and horizontal cutting.
3) Cutting blade can tilt 0-45° and do chamfering automatically.
4) Working platform can rotate 0-360°,positioning at any angle, and tilt 85° for easy feeding.
5) Mono-block machine, easy for container loading and machine installation.
6) Wireless remote provides ease control of the saw.
7) Laser guide and sensors give precision cuts every time.
8)All functions are operated on the control panel that make it very user friendly.

Key words: bridge saw, granite bridge saw, marble bridge saw, cnc machine, cnc cutting machine, stone cutting machine, bridge cutting machine, cutting machine for marble, countertops cutting machine, slab cut to size machine, marble cutting machine, tile cutting machine, bridge sawing machine, etc


AGA Machinery:

AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in U.S.A, Canada, Europe, Mid East, Egypt, India, etc.
AGA understand that machinery creats value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers obtain the best return on the investment. We care about customers  because by choosing us you giving us a chance to make your machine more productive that also makes your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
