• Model NO.：YG series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. YG series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tph

Product Description

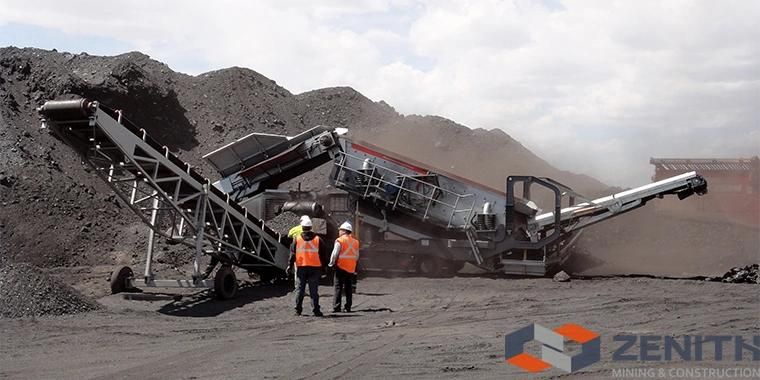

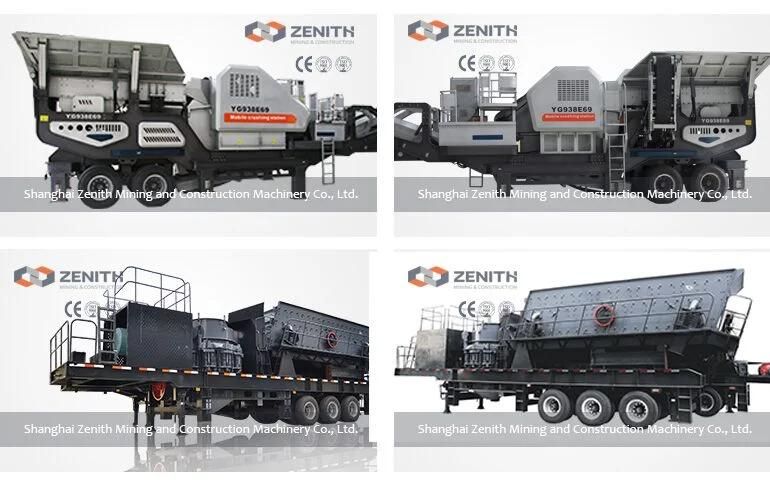

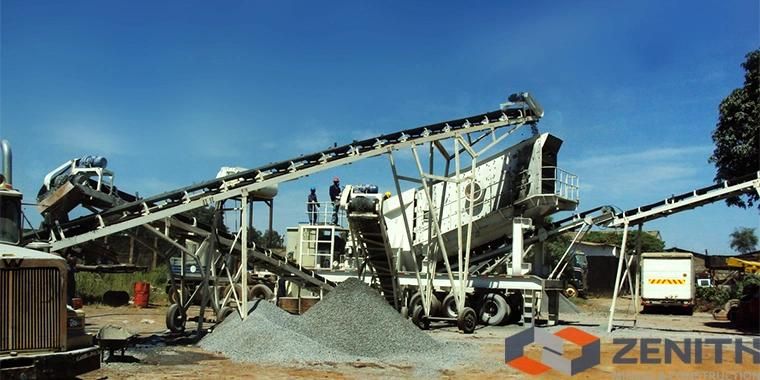

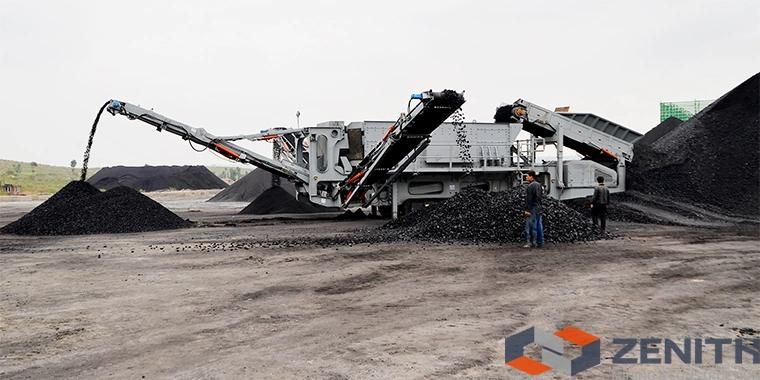

The mobile cone crushing plant:

The mobile cone crushing plants we manufacture have the features: easy to maintain, mobile, high production rate and even final size. This type of mobile crushing plant is mobile cone crushing plant. It is mainly consist of cone crusher, vibrating screen. The design is professional, and the structure is strong.


The service we provide to you:

Before sell: we will design a suitable crushing plant for you.
Selling: we invite you to visit our factory to inspect the quality.
After sell: we will send a technician to help you install the crushing plant. also we will train your stuff for several days.

The capacity we can supply about the Mobile cone crushing plant:
We can supply the mobile crushing plant from 60-160 Mt per hour.

Advantage of our factory:
The technical is mature. We have so many real cases in many countries and district. So we can show you the mobile crushing case nearest to you.
We can give you the whole set machinery by ourselves.
Train your clients.
For one year guarantee. Supply the spare parts for the whole using life.

Mobile cone crushing plant maneuverability

This series of mobile crushing plant incorporates all the equipments together on one truck, which has high chassis, narrower body compared with other trucks, this ensure the crushing plant be easily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from one place to another place. In addition, the lengthened plant is able to transport the final products to the motor-lorry directly. It can start to work soon even in the bumpy ground without reinstallation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.

Service we provide to you
1. Supply specific quick-wear parts list
2. Supply an installation tooler list.
3. Send technician to guide installation and commission. The salary is 100 USD per day. Buyer is also responsible for traffic fees, insurance, accommodation.
4. Supply spare parts during whole using life.
5. Install the machinery and train your workers.




Mobile cone crushing plant parameters:


Model	Specs. of screening equipment	Specs. of crushing equipment	Specs. of main belt conveyor	Max.feeding size (mm)	Transportation dimension(mm)
KC75-2	3Y1848	CS75B	B800×7.5m	150	12600×3000×4500
KC160-2	3Y1860	CS160B	B800×8.5m	205	13800×3000×4500
KT100-2	3Y1848	HST100H1	B800×7.5m	185	12600×3000×4500
KT160-2	3Y1860	HST160H1	B800×8.5m	185	13800×3000×4500
KT250-2	3Y1860	HST250H1	B800×8.5m	215	13800×3000×4500
KH300-2	3Y1860	HPT300C2	B800×8.5m	210	13800×3000×4500
KF1214-2	3Y1860	PFW1214III	B800×8.5m	250	13800×3000×4500
KF1315-2	3Y2160	PFW1315III	B1000×8.5m	300	13800×3150×4500
KF1318-2	3Y2160	PFW1318III	B1000×8.5m	300	13800×3150×4500
KS1848-1	3Y1848	--	B800×7.5m	--	12590×3000×4500
KS1860-1	3Y1860	--	B800×8.5m	--	13800×3000×4500
KS2160-1	3Y2160	--	B1000×8.5m	--	13800×3000×4200
